Description

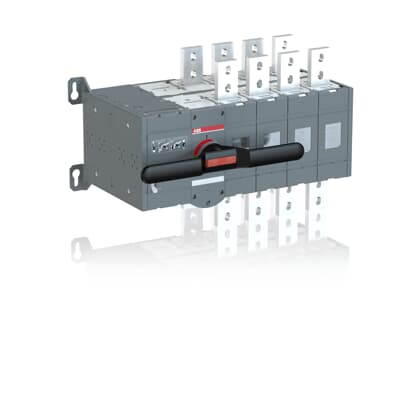

OTM1600E4CM230C MOTORIZED C/O SWITCH
Description: Including a handle for manual operation, bolt kit with nut and washers for all terminals and male connectors for control circuits. Include a storage clip for the handle and spare fuses.
Dimensions (cm): Width: 58.7, Height: 37.2, Depth/Length: 37.2
Weight (kg): 69
Package Level 1: Units: box 1 box, Width: 58, Depth/Length: 78, Height: 50, Gross Weight: 69, EAN: 6417019453965
Technical Specifications: Conventional Free-air Thermal Current (Ith) 1600 A at 40 °C, Degree of Protection Front IP20, Distance Between Phases Standard, Fourth Pole Position Right Side, Fourth Pole Type Switched – Simultaneous Function, Handle Color Black, Handle Type Direct mounted handle, Motor Operational Voltage 220 … 240 V AC, Mounting Type Base mounting, Number of Poles 4, Operating Mode Front, Pollution Degree 3, Position of Line Terminals Top In – Bottom Out, Bottom In – Top Out, Power Loss 48 W at Rated Operating Conditions per Pole, Rated Impulse Withstand Voltage (Uimp) 12 kV, Rated Insulation Voltage (Ui) 1000 V, Rated Operational Current AC-21A (Ie) 1600 A at (380 … 415 V), (500 V), (690 V), Rated Operational Current AC-22A (Ie) 1600 A at (380 … 415 V), (500 V), (690 V), Rated Operational Current AC-23A (Ie) 1600 A at (380 … 415 V), (500 V), (690 V), Rated Operational Current AC-31B (Ie) 1600 A at (380 … 415 V), Rated Operational Current AC-33B (Ie) 1000 A at (380 … 415 V), Rated Operational Power AC-23A (Pe) 710 kW at (380 … 415 V), 900 kW at (500 V), 1200 kW at (690 V), Rated Operational Voltage Main Circuit 1000 V, Rated Short-time Withstand Current Low Voltage (Icw) 50 kiloampere rms for 1 s, Switches Operating Mechanism Mechanism at the End of the Switch, Terminal Type Screw Terminals, Tightening Torque acc. IEC 60947-1 50 … 75 N·m, Transition Type Open.
Customs Tariff Code: 85365080
Country of Origin: Finland
