Description

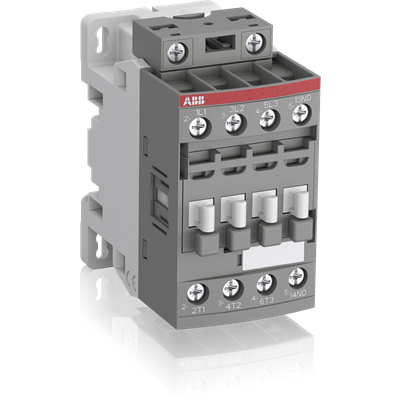

Block Contactor AF09-30-10-13
The AF09-30-10-13 is a 3 pole, 690 V IEC or 600 UL contactor with 1 built-in auxiliary contact and screw terminals. It controls motors up to 4 kW at 400 V AC or 5 hp at 480 V UL and switches power circuits up to 25 A AC-1 or UL general use. Thanks to AF technology, it has a wide control voltage range of 100-250 V at 50/60 Hz and DC, managing large voltage variations, reducing panel energy consumption, and ensuring distinct operation in unstable networks. Surge protection is built-in, providing a compact solution.
AF contactors have a block type design and can be easily extended with add-on auxiliary contact blocks and a wide range of accessories.
Technical Specifications
Number of poles: 3. Rated operational voltage: 690 V. Rated frequency: 50/60 Hz. Thermal current: 35 A. Rated operational current AC-1: 25 A. Rated operational power AC-3: between 4 and 5.5 kW. Electrical switching frequency up to 1200 cycles per hour for AC-15 and AC-3. Mechanical switching frequency up to 3600 cycles per hour.
Operating control circuit voltage: 100 to 250 V AC/DC. Power loss at rated operating conditions AC-1 per pole: 0.8 W. Operating temperatures from -25 to 70 °C. Degree of protection IP20 on auxiliary, coil and main terminals. Mounting available on DIN rails or by screws.
Dimensions and Weight
Width: 4.5 cm. Depth/Length: 7.7 cm. Height: 8.6 cm. Weight: 270 g.
Connection and Installation
Connecting capacity main circuit: flexible with ferrule 0.75 to 6 mm², rigid solid or stranded 1 to 6 mm². Auxiliary circuit flexible with ferrule 0.75 to 2.5 mm². Wire stripping length: 10 mm. Tightening torque main circuit 1.5 Nm, auxiliary 1.2 Nm.
Compliance and Standards
Standards: IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40, UL 60947-4-1, CSA C22.2 No. 60335-2-40, CSA C22.2 No. 60947-4-1.
Customs Tariff Code: 85364900.
