Description

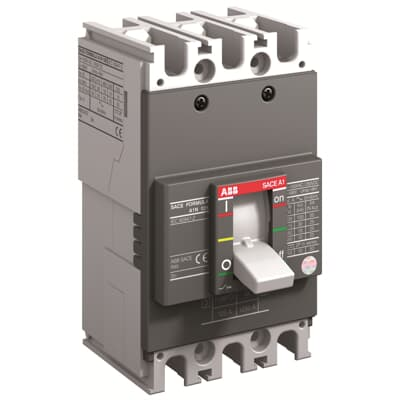

Product Name: A1B 125 TMF 20-400 3p F F
Manufacturer: ABB
Product ID: 1SDA066698R1
EAN: 8015644693961
Description: C.BREAKER FORMULA A1B 125 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMF R 20-400 A
Order Code US and Canada: AAB020TW
Minimum Order Quantity: 1 piece
Customs Tariff Number: 85362090
Dimensions: Width 7.62 cm, Height 13.0 cm, Depth 6.0 cm
Net Weight: 0.781 kg
Package Level 1: 1 piece – Width 13.65 cm, Height 12.4 cm, Depth 11.05 cm, Gross Weight 0.8 kg, EAN 8015644693961
Product Main Type: SACE FORMULA
Product Type: Automatic Circuit Breaker
Formal Product Name: Moulded Case Circuit Breaker
Version: F
Electrical Durability: 1500 cycle
Mechanical Durability: 8500 cycle
Number of Poles: 3
Opening Time: CB with SOR 15 ms, CB with UVR 15 ms
Power Loss per Pole: 3 W
Rated Current (Main Circuit): 20 A
Rated Impulse Withstand Voltage (Uimp): 6 kV
Rated Insulation Voltage (Ui): 690 V
Rated Operational Voltage: 550 V AC and 250 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): 12.5 kA (240 V AC), 9 kA (380 V AC), 5 kA (415-480 V AC), 2.5 kA (500 V AC), 2.5 kA (250 V DC, 2 Poles in Series)
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 25 kA (240 V AC), 18 kA (380-415 V AC), 15 kA (440 V AC), 10 kA (480 V AC), 5 kA (500 V AC, 250 V DC)
Rated Uninterrupted Current (Iu): 125 A
Release: TMF
Release Type: TM
Short-Circuit Performance Level: B
Standards: IEC
Sub-type: A1
Terminal Connection Type: Front
