Description

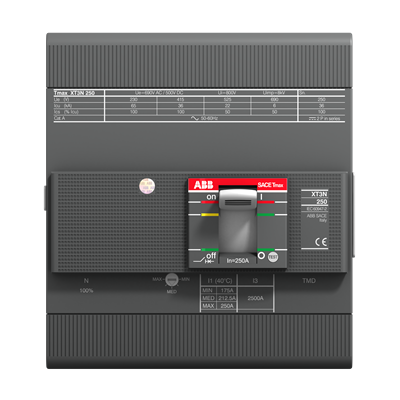

Product: XT3N 250 TMD 250-2500 4p F F InN=100%
Extended Product Type: XT3N 250 TMD 250-2500 4p F F InN=100%
Product ID: 1SDA068070R1
EAN: 8015644019716
Description: C.BREAKER TMAX XT3N 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 250-2500 A FULLY RATED NEUTRAL
EcoSolutions: Yes, ABB Site Meeting Group Waste To Landfill Target is UL 2799 Zero Waste To Landfill Validation available
Recyclability Rate acc. to EN45555: 56.6 %
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Order Code US and Canada: XT3NE4250AFF000XXX
E-Number Norway: 4309763
E-Number Sweden: 3182424
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85362090
Dimensions (cm): Width 14, Height 15, Depth/Length 7
Net Weight (kg): 2.1
Package Level 1: box with 1 piece, Width 15.5 cm, Height 19 cm, Depth/Length 15.5 cm, Gross Weight 2.214 kg
Type Association: Power Distribution
Product Main Type: SACE Tmax XT
Product Type: Automatic Circuit Breaker Version F
Main Circuit Connecting Capacity: Busbar 85..192 mm²
Current Type: AC/DC
Electrical Durability: 8000 cycles
Mechanical Durability: 25000 cycles
Number of Poles: 4
Opening Time: 30 ms with SOR or UVR
Power Loss per Pole: 17.8 W
Rated Current: 250 A
Rated Frequency: 50 / 60 Hz
Rated Impulse Withstand Voltage: 8 kV
Rated Instantaneous Short-Circuit Current Setting: 2500 A
Rated Insulation Voltage: 800 V
Rated Operational Voltage: 690 V AC and 500 V DC
Rated Service Short-Circuit Breaking Capacity (Ics): values range from 50 kA at 220-240 V AC, down to 3.75 kA at 690 V AC, and 36 to 50 kA for DC configurations as specified
Rated Ultimate Short-Circuit Breaking Capacity (Icu): values range from 50 kA at 220-240 V AC, down to 5 kA at 690 V AC, and 36 to 50 kA for DC configurations as specified
Rated Uninterrupted Current: 250 A
Rated Voltage: 690 V
Recommended Screwdriver: Main Circuit M8
Release: TMD (Type TM)
Setting Range: 175 to 250 A
Short-Circuit Performance Level: N
Standards: IEC60947-2
Sub-type: XT3
Terminal Connection Type: Front
Terminal Type: Bolt
Tightening Torque: 8 N·m
