Description

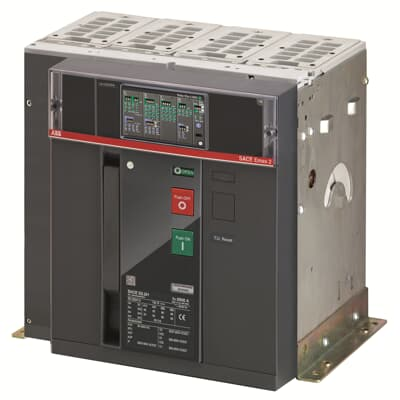

Product: E2.2N 2500 Ekip Dip LI 4p F HR
Extended Product Type: E2.2N 2500 Ekip Dip LI 4p F HR
Product ID: 1SDA071691R1
EAN: 8015644755416
Catalog Description: E2.2N 2500 Ekip Dip LI 4p F HR
Description: C.BREAKER SACE EMAX2 E2.2N 2500 FIXED FOUR-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 2500 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Dimensions (cm): Width 36.6 x Height 37.1 x Depth/Length 27.0
Weight (kg): Net Weight 53
Package Dimensions (cm): Width 51.5 x Height 61.0 x Depth/Length 61.5
Package Weight (kg): Gross Weight 58
Rated Current: 2500 A
Rated Operational Voltage: 690 V AC
Rated Insulation Voltage (Ui): AC 1000 V
Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV
Rated Service Short-Circuit Breaking Capacity (Ics): 66 kA for voltages from 220 V AC up to 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw): 66 kA for 1 s, 50 kA for 3 s
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 66 kA
Rated Uninterrupted Current (Iu): 2500 A
Number of Poles: 4P
Power Loss: 267 W
Electrical Durability: Ue =< 440 V 8000 cycle, Ue = 500 … 690 V 7000 cycle, 30 cycles per hour
Mechanical Durability: 20000 cycles at 60 cycles per hour
Neutral Pole Current: 100 %
Connecting Capacity: 1800 mm²
Recommended Screw Driver: M12
Terminal Connection Type: Rear flat Horizontal
Terminal Type: Bolt
Tightening Torque: 70 N·m
Release: Ekip Dip LI, Type EL
Short-Circuit Performance Level: N
Suitable for IT Networks: Yes, 690 V
Standards: IEC
Customs Tariff Code: 85362090
Abb EcoSolutions: Yes
End Of Life Disassembling Instructions: Provided
Recyclability Rate: 79.1 % acc. to EN45555
Environmental Declarations: Provided
