Description
E1.2 W FP Iu=1600 4p HR HR
Extended Product Type: E1.2 W FP Iu=1600 4p HR HR
Product ID: 1SDA073908R1
Catalog Description: E1.2 W FP Iu=1600 4p HR HR

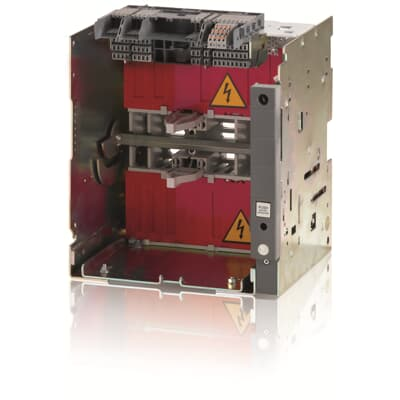

Description: FIXED PART WITHDRAWABLE FOR C.BREAKER SACE EMAX2 E1.2 1600 FOUR-POLE WITH REAR HORIZONTAL TERMINALS
Order Code US and Canada: ZAC16A0XX
Minimum Order Quantity: 1 piece
Customs Tariff Code: 85389099
Dimensions (cm): Width: 34.8, Height: 36.35, Depth/Length: 27.1
Weight (kg): Net Weight: 23
Package Level 1: Units: box 1 piece, Width: 37.5, Height: 33, Depth/Length: 38.8, Gross Weight: 26
Product Main Type: SACE Emax 2
Product Type: Fixed Part
Version: W FP
Technical Specification: Connecting Capacity: 1200 mm², Current Type: AC, Neutral Pole Current: 100%, Number of Poles: 4P, Rated Current (In): 1600 A, Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV, Rated Insulation Voltage (Ui): AC 1000 V, Rated Operational Voltage: 690 V AC and 800 V AC, Rated Uninterrupted Current (Iu): 1600 A, Rated Voltage (Ur): 800 V, Recommended Screw Driver: M12, Standards: IEC, Sub-type: E1.2, Terminal Connection Type: Rear flat Horizontal, Terminal Type: Bolt, Tightening Torque: 45 N·m
Certificates: ATEX: No certification needed, CSA: No certification needed, CSA Intrinsic Safe: No certification needed, UL: No certification needed, VDE: No certification needed
Additional Information: Data Sheet: SACE Emax 2. New low voltage air circuit-breakers, Declaration of Conformity – CE: EC Declaration of Conformity Emax E1.2, Instructions and Manuals: Fixed part of withdrawable circuit-breaker – E1.2
Classification: ETIM 9: EC002043 – Chassis part power circuit breaker, ETIM 10: EC002043 – Chassis part power circuit breaker, IDEA Granular Category Code (IGCC): 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers, Object Classification Code: Q, UNSPSC: 39121616, WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm), eClass: V11.1 : 27370422
