Description

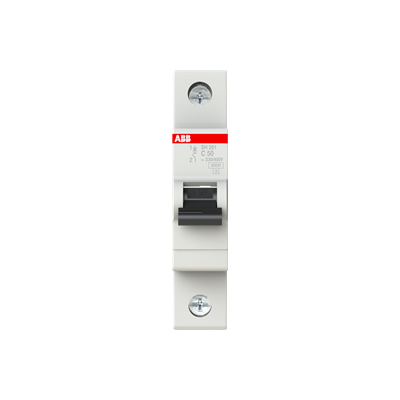

SH201-C50 Miniature Circuit Breaker
Manufacturer: ABB
Extended Product Type: SH201-C50
Product ID: 2CDS211001R0504
EAN: 4016779698993
Description: Miniature Circuit Breaker – SH200 – 1P – 50 A – C – (AC) 6 kA
Electrical Characteristics: Dielectric Test Voltage: 2 kV at 50/60 Hz for 1 minute. Rated Operational Voltage: 230 V AC. Operational Voltage Range: 12 V AC minimum to 253 V AC maximum. Rated Insulation Voltage (Ui): 440 V. Rated Impulse Withstand Voltage (Uimp): 4 kV (standard), 5 kV at 2000 m altitude, 6.2 kV at sea level. Rated Current: 50 A. Tripping Characteristic: C. Rated Short-Circuit Capacity: 6 kA.
Mechanical and Endurance: Electrical endurance: 10000 AC cycles. Mechanical endurance: 20000 cycles.
Design and Installation: Number of poles: 1P. Number of protected poles: 1. Tightening torque: 2 N·m. Installation size: acc. to DIN 43880 1. Housing material: Insulation Group II, RAL 7035 (light grey). Degree of protection: IP20 standard, IP40 with enclosure cover. Mounting on DIN Rail: TH35-15 (35 x 15 mm) and TH35-7.5 (35 x 7.5 mm) rails acc. to IEC 60715. Mounting position: any.
Actuator: Toggle type, with I/O marking, made of insulation group II black material, sealable. Recommended screwdriver: Pozidriv 2.
Terminal and Connection: Screw terminals, cage terminal type. Connecting capacity includes flexible cables 0.75 to 16 mm², rigid and stranded cables 0.75 to 25 mm², and conductor 25 mm². Accessories: Not available.
Environmental: Operating ambient temperature: -25 to +55 °C. Storage temperature: -40 to +70 °C. Reference ambient temperature: 30 °C. Pollution degree 2. Overvoltage category III. Resistance to vibration: 20 cycles at 5g between 5 and 150 Hz. Resistance to shock: 25g, 2 shocks at 13 ms. Environmental conditions tested: 28 cycles at 55 °C / 90-96% RH and 25 °C / 95-100% RH.
Power Loss: 3.25 W per pole at rated operating conditions.
Compliance: RoHS compliant per EU Directive 2011/65/EU and amendment 2015/863. REACH compliant, contains no substances above 0.1 mass percent. WEEE Category: 5. Small Equipment (no external dimension more than 50 cm), for business to business.
Weight and Dimensions: Width: 1.75 cm. Height: 8.5 cm. Depth/Length: 6.9 cm. Net weight: 0.11 kg. Pole net weight: 0.125 kg. Built-in depth: 6.9 cm.
Package: Carton of 10 pieces. Gross weight: 1.14 kg per carton.
Customs Tariff Code: 39121603
