Description

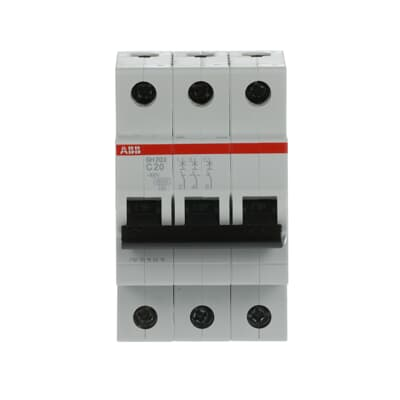

Product Name: SH203-C20
Manufacturer: ABB
Product ID: 2CDS213001R0204
EAN: 4016779631358
Description: Miniature Circuit Breaker – SH200 – 3P – 20 A – C – (AC) 6 kA
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection.
They are available in different characteristics (B, C), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
Technical Details
Dielectric Test Voltage: 50 / 60 Hz – 1 min 2 kV
Power Supply Connection: Arbitrary
Contact Position Indication: ON / OFF
Energy Limiting Class: 3
Electrical Endurance: 20000 AC cycle
Mechanical Endurance: 20000 cycle
Number of Protected Poles: 3
Number of Poles: 3P
Tightening Torque: 2 N·m
Actuator Type: Toggle
Screw Terminal Type: Cage Terminal
Actuator Marking: I / O
Actuator Material: Insulation Group II, Black, Sealable
Recommended Screw Driver: Pozidriv 2
Accessories Available: No
Connecting Capacity: Conductor 25 / 25 mm², Flexible with Ferrule 0.75 … 16 mm², Flexible 0.75 … 16 mm², Rigid 0.75 … 25 mm², Stranded 0.75 … 25 mm²
Installation Size: acc. to DIN 43880 1
Terminal Type: Screw Terminals
Electrical Characteristics
Tripping Characteristic: C
Rated Operational Voltage: acc. to IEC 60898-1 400 V
Operational Voltage: Minimum 12 V AC, Maximum (Incl. Tolerance) 440 V AC
Rated Insulation Voltage (Ui): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (Uimp): 4 kV (at 2000 m 5 kV, at Sea Level 6.2 kV)
Input Voltage Type: AC
Rated Current (In): 20 A
Rated Short-Circuit Capacity: 6 kA (400 V AC)
Rated Conditional Short-Circuit Current (Inc): 6 kA (230 V and 400 V)
Rated Frequency (f): 50 / 60 Hz
Power Loss: 7.5 W (at Rated Operating Conditions per Pole 2.5 W)
Overvoltage Category: III
Design
Housing Material: Insulation Group II, RAL 7035
Material Compliance
RoHS Declaration: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date: 20210608
REACH Declaration: False – does not contain substances > 0.1 mass percentage
REACH Date: 20250917
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B: Business To Business
Environmental
Ambient Air Temperature Operation: -25 … +55 °C
Storage: -40 … +70 °C
Reference Ambient Air Temperature: 30 °C
Degree of Protection: IP20 Enclosure with Cover IP40
Pollution Degree: 2
Environmental Conditions: 28 cycles with 55 °C / 90-96 % and 25 °C / 95-100 %
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 … 150 … 5 Hz
Resistance to Shock acc. to IEC 60068-2-27: 25g 2 shocks 13 ms
Dimensions
Width in Number of Modular Spacings: 3.0
Product Net Width: 5.25 cm
Product Net Height: 8.5 cm
Product Net Depth / Length: 6.9 cm
Product Net Weight: 0.315 kg
Pole Net Weight: 0.125 kg
Built-In Depth (_t2_): 6.9 cm
Ordering
Package Level 1 Units: carton 1 piece
Package Level 1 Gross Weight: 0.335 kg
E-Number (Finland): 3210170
Certificates and Declarations
Standards: IEC/EN 60898-1
Certification Agency: EN IEC
Installation
Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Mounting Position: any
Customs Tariff Code: 85362000
