Product Information: SH203M-C50 Miniature Circuit Breaker
Manufacturer: ABB
Product ID: 2CDS273011R0504
EAN: 4016779701860
Description: Miniature Circuit Breaker – SH200M – 3P – 50 A – C – (AC) 10 kA

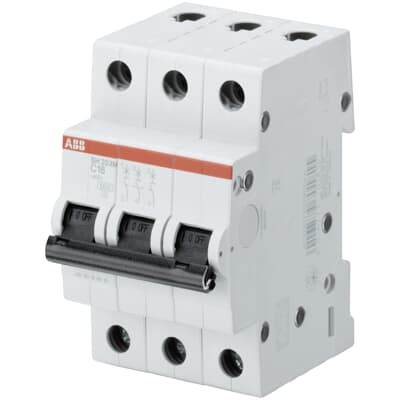

Image URL: https://cdn.productimages.abb.com/2CDC021005S0016_400x400.jpg
Technical Specifications
Tripping Characteristic: C
Rated Current: 50 A
Rated Operational Voltage (IEC 60898-1): 400 V
Operational Voltage Range: Min 12 V AC, Max 440 V AC
Rated Insulation Voltage (Ui): 440 V
Rated Impulse Withstand Voltage: 4 kV; 5 kV at 2000 m; 6.2 kV at Sea Level
Rated Conditional Short-Circuit Current: 10 kA at 230 V and 400 V
Rated Short-Circuit Capacity: 10 kA (400 V AC)
Rated Frequency: 50 / 60 Hz
Power Loss: 9.75 W total, 3.25 W per pole
Energy Limiting Class: 3
Electrical Endurance: 10,000 AC cycles
Mechanical Endurance: 20,000 cycles
Number of Poles: 3
Number of Protected Poles: 3
Tripping Characteristic: Type C
Contact Position Indication: ON / OFF
Actuator: Toggle, Insulation Group II, Black, Sealable, Marking I / O
Tightening Torque: 2 N·m
Terminal Type: Screw Terminals, Cage Terminal
Connecting Capacity: Flexible with Ferrule 0.75 to 16 mm², Flexible 0.75 to 16 mm², Rigid 0.75 to 25 mm², Stranded 0.75 to 25 mm²
Installation Size: acc. to DIN 43880 1 module
Dimensions and Weight
Width: 5.25 cm
Height: 8.8 cm
Depth: 6.9 cm built-in depth (_t2_)
Net Weight: 0.33 kg
Pole Net Weight: 0.125 kg
Environmental and Compliance
Ambient Air Temperature: Operation -25 to +55 °C; Storage -40 to +70 °C
Degree of Protection: IP20 (Enclosure with Cover IP40)
Pollution Degree: 2
Resistance to Vibrations: 20 Cycles with Load 0.8 In: 5g 5 to 150 to 5 Hz
Resistance to Shock: 25g 2 shocks 13 ms (IEC 60068-2-27)
RoHS Compliance: Following EU Directive 2011/65/EU and Amendment 2015/863
REACH Compliance: Does not contain substances above 0.1 mass percentage
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm), Business To Business
Additional Information
Mounting on DIN Rail: TH35-15 (35 x 15 mm) and TH35-7.5 (35 x 7.5 mm) Mounting Rail acc. to IEC 60715
Mounting Position: Any
Housing Material: Insulation Group II, RAL 7035
Certification and Standards: IEC/EN 60898-1, EN, IEC
Customs Tariff Code: 39121603
