Description
General Information
Product ID: 3GBA182420-ADDIN
ABB Type Designation: M2BAX 180MLB 4
Catalog Description: IE3 (BIS) Premium Efficiency Cast Iron Motors, 22 kW, 415 V (3GBA182420-ADDIN)
Ordering
ABB Type Designation: M2BAX 180MLB 4
Invoice Description: M2BAX 180MLB 4

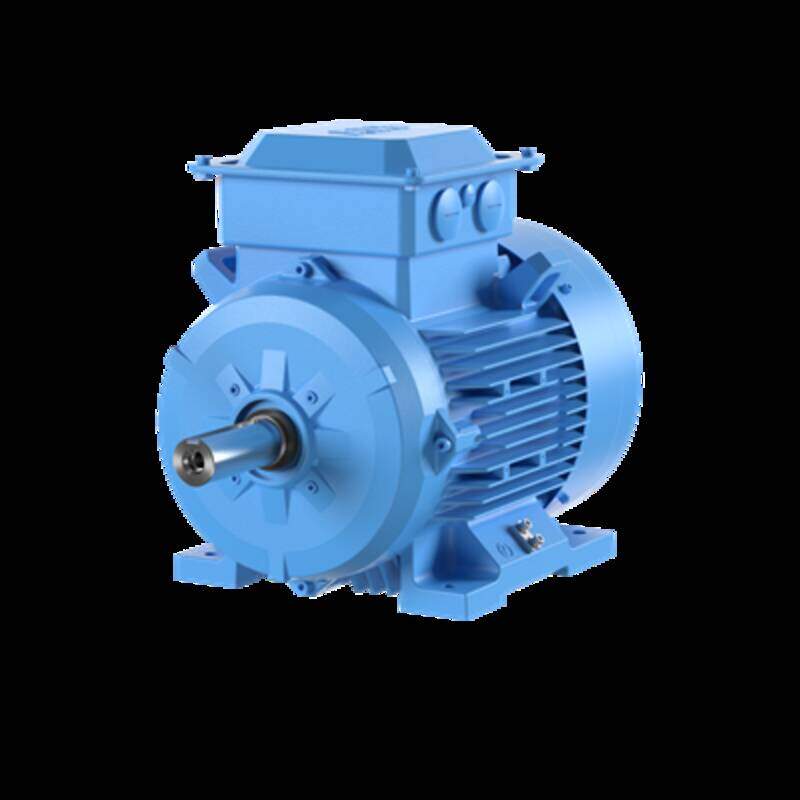

Product Name: 3-Phase squirrel cage motor
Product Type: IBA3__M2BAX_IE3_CI
Country of Origin: India
Customs Tariff Number: 85015230
Medium Description: 22kW, 4 Poles, Frame Size 180, 3 Phases, 415V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GBA182420-ADDIN)
Short Description: 22kW, 4P, Frame Size 180, 3PH, 415V, 50Hz, IP55, IMB3/IM1001
Electrical
Electrical Data: | Conn | Temp Class | Network Freq | Network Voltage | Power | Speed | Current | Power Factor | Efficiency | Torque | IS/IN |n| — | — | — | — | — | — | — | — | — | — | — |n| D | — | 50 Hz | 415 V | 22.00 kW | 1475 r/min | 41.50 A | 0.790 | 93.00 % | 142.00 N·m | 7.50 |
Connection Configuration: D
Temperature Class Default: —
Input Voltage (Uin): 415 V
Frequency ( _f_): 50 Hz
Output Power: 22 kW
Altitude: 1000 m
Ambient Temperature: 50 °C
IC Class: IC411
IE Class Data (50 Hz): IE Class IE3nFull Load (100%) 93.0 %nPartial Load (75%) 93.5 %nPartial Load (50%) 93.0 %
IP Class: IP55
Insulation Class: ICLF
Direction of Rotation: Both sides
Number of Poles (High): 4
Two Speed Motor: No
Type of Duty: S1
Voltage Code: D
Mechanical
Frame Material: Cast Iron
Frame Size: 180
Bearing: 6310-2Z/C3
Bearing NDE: 6209-2Z/C3
IM Class: IMB3 IM1001
Terminator Box Location: D-End top
Dimensions
Product Net Depth / Length: 728 mm
Product Net Height: 454 mm
Product Net Width: 380 mm
Product Net Weight: 205 kg
Gross Weight: 215 kg
Environmental
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
External Classifications and Standards
UNSPSC: 26101100
