Description
Product: ACS580-01-246A-4
ID: 3AUA0000080507
Alias: ACS580-01-246A-4
Type Designation: ACS580-01-246A-4
EAN: 6438177305637

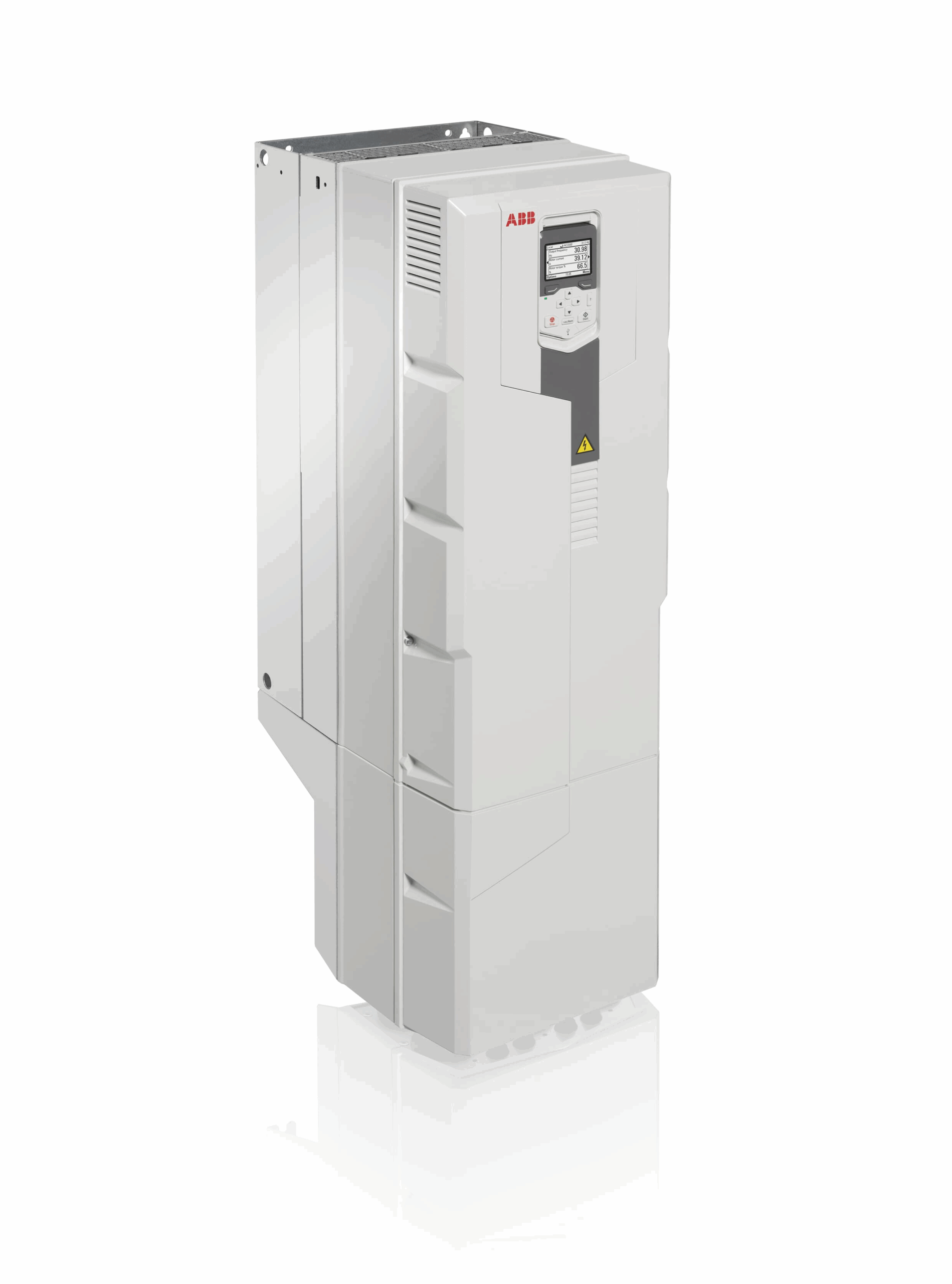

Description: LV AC general purpose wall-mounted drive, IEC: Pn 132 kW, 246 A, 400 V (ACS580-01-246A-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Customs Tariff Code: 85044086
HS Code Description: ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description: ACS580-01-246A-4 PN: 132 kW, IN: 246 A
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Product Weight: 69 kg
Dimensions (cm): Depth/Length: 39.3, Height: 96.5, Width: 30
Package Dimensions (cm): Depth/Length: 114.5, Height: 65.4, Width: 48.5, Units: 1 case
Electrical and Technical Data:
Phases: 3-phase
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 1000 m
Operating Humidity: 5 … 95 %
Sound Level: 65 dB(A)
Battery: Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency: 47.5 … 63 Hz
Frame Size: R8
Input Voltage: 380 … 480 V
Mounting Type: Wall-mounted
Communication Protocols: CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Hardware Interfaces: Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes: Control unit, PC connection
Analog Inputs: 2
Analog Outputs: 2
Digital I/O: 6 / 3
Output Current Normal Use: 246 A
Output Current Light Overload Use: 234 A
Output Current Heavy Duty Use: 206 A
Output Power Normal Use: 132 kW
Output Power Light Overload Use: 132 kW
Output Power Heavy Duty Use: 110 kW
Power Consumption: 3131 W
Apparent Power Output: 170 kV·A
Efficiency Level: IE2
Standby Loss: 47 W
Temperature Rating: Maximum 40 °C, Minimum -15 °C
Environmental Impact:
Global Warming Potential Total: Distribution 17 kg CO2 equivalent, End of Life 100 kg CO2 equivalent, Installation 34 kg CO2 equivalent, Manufacturing 782 kg CO2 equivalent, Use 28122 kg CO2 equivalent, Total 29056 kg CO2 equivalent
Certifications:
Declaration of Conformity CE: 3AXD10001818627
REACH Date: 20250905
REACH Declaration: 9AKK107992A7060
RoHS Date: 20240508
RoHS Declaration: 3AXD10001818627
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
Classifications:
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
