Description

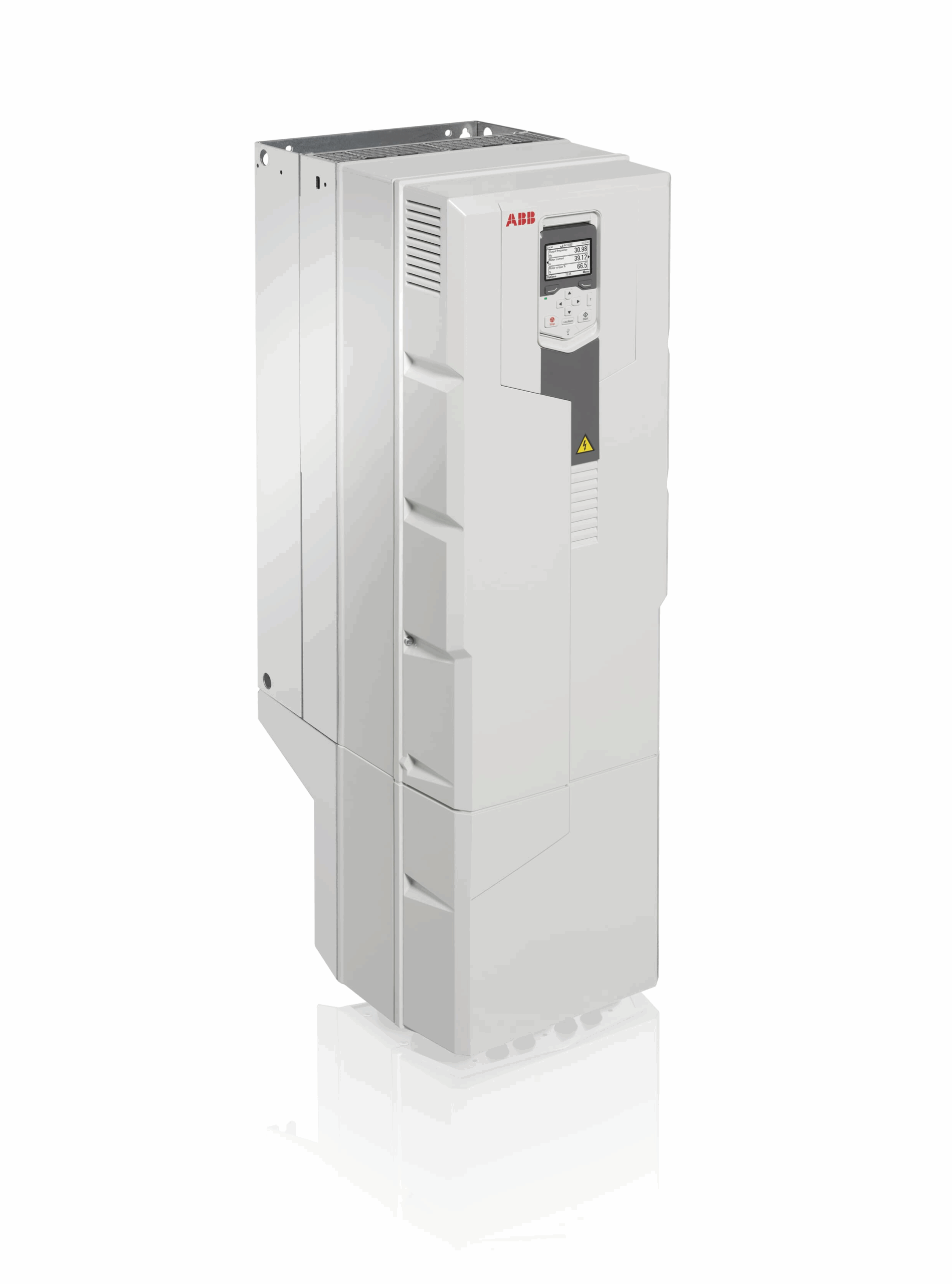

Product: ACS580-01-293A-4
Global Commercial Alias: ACS580-01-293A-4
Product ID: 3AUA0000080508
ABB Type Designation: ACS580-01-293A-4
EAN: 6438177305644
Catalog Description: LV AC general purpose wall-mounted drive, IEC: Pn 160 kW, 293 A, 400 V (ACS580-01-293A-4)
Long Description: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Versatile and straightforward settings menu and assistants enable fast setup, commissioning, use and maintenance, while rugged and robust design makes it a good fit for various environments. With the ACS580 drives you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in IP21 enclosure as standard. Also, IP55 and flange mounting units are available.
Customs Tariff Code: 85044086
HS Code: 850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description: ACS580-01-293A-4 PN: 160 kW, IN: 293 A
Made To Order: Yes
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Product Net Weight: 69 kg
Product Net Depth / Length: 39.3 cm
Product Net Height: 96.5 cm
Product Net Width: 30 cm
Package Level 1 Depth / Length: 114.5 cm
Package Level 1 Height: 65.4 cm
Package Level 1 Width: 48.5 cm
Package Level 1 Units: 1 case
Number of Phases: 3-phase
Degree of Protection: IP21
Enclosure Type NEMA: Type1
Altitude: 1000 m
Operating Humidity (RHamb): 5 … 95
Sound dB (A): 65 dB(A)
Multiple Battery Information: Lithium Coin, CR2032, 220 mAh, 3 V, 1 pc, 3 g
Frequency ( _f_ ): 47.5 … 63 Hz
Frame Size: R8
Input Voltage (Uin): 380 … 480 V
Mounting Type: Wall-mounted
Communication Protocol: CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP
Number of Hardware Interfaces: Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1
Includes: Control unit, PC connection
Analog Inputs: 2
Analog Outputs: 2
Number of Digital In/Outputs: 6 / 3
Output Current, Normal Use (In): 293 A
Output Current, Light-Overload Use (ILD): 278 A
Output Current, Heavy-Duty Use (IHD): 246 A
Output Power, Normal Use (Pn): 160 kW
Output Power, Light-Overload Use (PLD): 160 kW
Output Power, Heavy-Duty Use (PHD): 132 kW
Power Consumption (@Pcons): 4071 W
Apparent Power Output: 203 kV·A
Efficiency Level: IE2
Standby Loss: 47 W
Temperature Rating: Maximum 40 °C, Minimum -15 °C
Declaration of Conformity – CE: 3AXD10001818627
REACH Date: 20250905
REACH Declaration: 9AKK107992A7060
REACH Information: True – contains substances > 0.1 mass percentage
RoHS Date: 20240508
RoHS Declaration: 3AXD10001818627
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Global Warming Potential GWP Total: Distribution (Module A4) 17 kilograms of carbon dioxide equivalent; End of Life (Modules C1-C4) 100 kilograms of carbon dioxide equivalent; Installation (Module A5) 34 kilograms of carbon dioxide equivalent; Manufacturing (Modules A1-A3) 782 kilograms of carbon dioxide equivalent; Total 36577 kilograms of carbon dioxide equivalent; Use (Modules B1-B7) 35643 kilograms of carbon dioxide equivalent
SCIP: 392bf175-c6df-4719-8b82-cdb09cfcad61 Finland
WEEE Category: 4. Large Equipment (Any External Dimension More Than 50 cm)
ETIM 9: EC001857 – Frequency converter =< 1 kV
UNSPSC: 39122001
