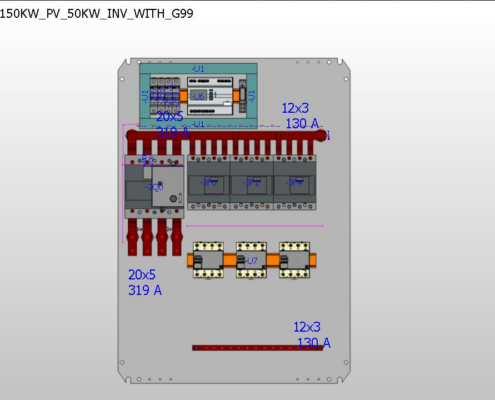

Standard Features:

Incomer 250A 4P 36KA Adjustable
PV 150KW ,3 xINVERTER 50KW
Busbar 20×5

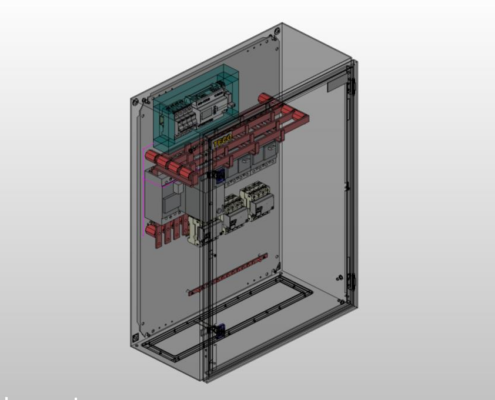

Suitable Enclosure IP55

Components List:

3 X ABB.2CSF204005R3800: RCCB F204 AC-80/0.3 300mA
1 X ABB.1SVR560730R3402: CM-UFD.M33 Grid feeding monitoring relay
4 X ABB.2CDS211001R0104: Miniature Circuit Breaker – 1P – C – 10 A
3 X ABB.1SDA067405R1: XT1C 160 TMD 80-800 4p F F
1 X ABB.1SDA068070R1: XT3N 250 TMD 250-2500 4p F F InN=100%
1 X ABB.1SDA066460R1: MOTOR FOR XT1 – XT3
MCCB 220 – 250 VAC
1 X ABB.1SDA066399R1: UNDUNDERVOLTAGE RELEASE WIRED
220…240V AC-220…250V DC FOR
C.BREAKER FIXED-PLUG-IN XT1..XT4

———————————————
Approximate Weight: 60.46 KG

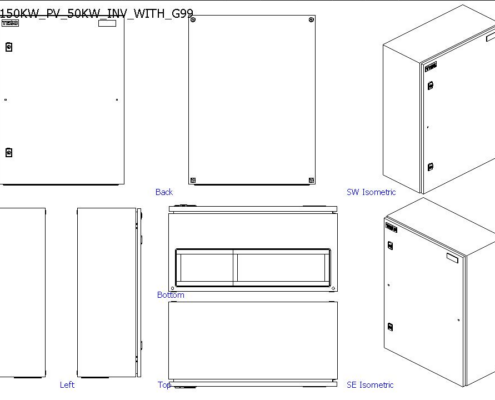

Approx Dimensions (WxHxD): 60x80x30 cm
———————————————
Current LME Price: 10100 USD/Ton
1 EURO = 1.07 USD
Last update date: 01/05/2024
———————————————
