Description

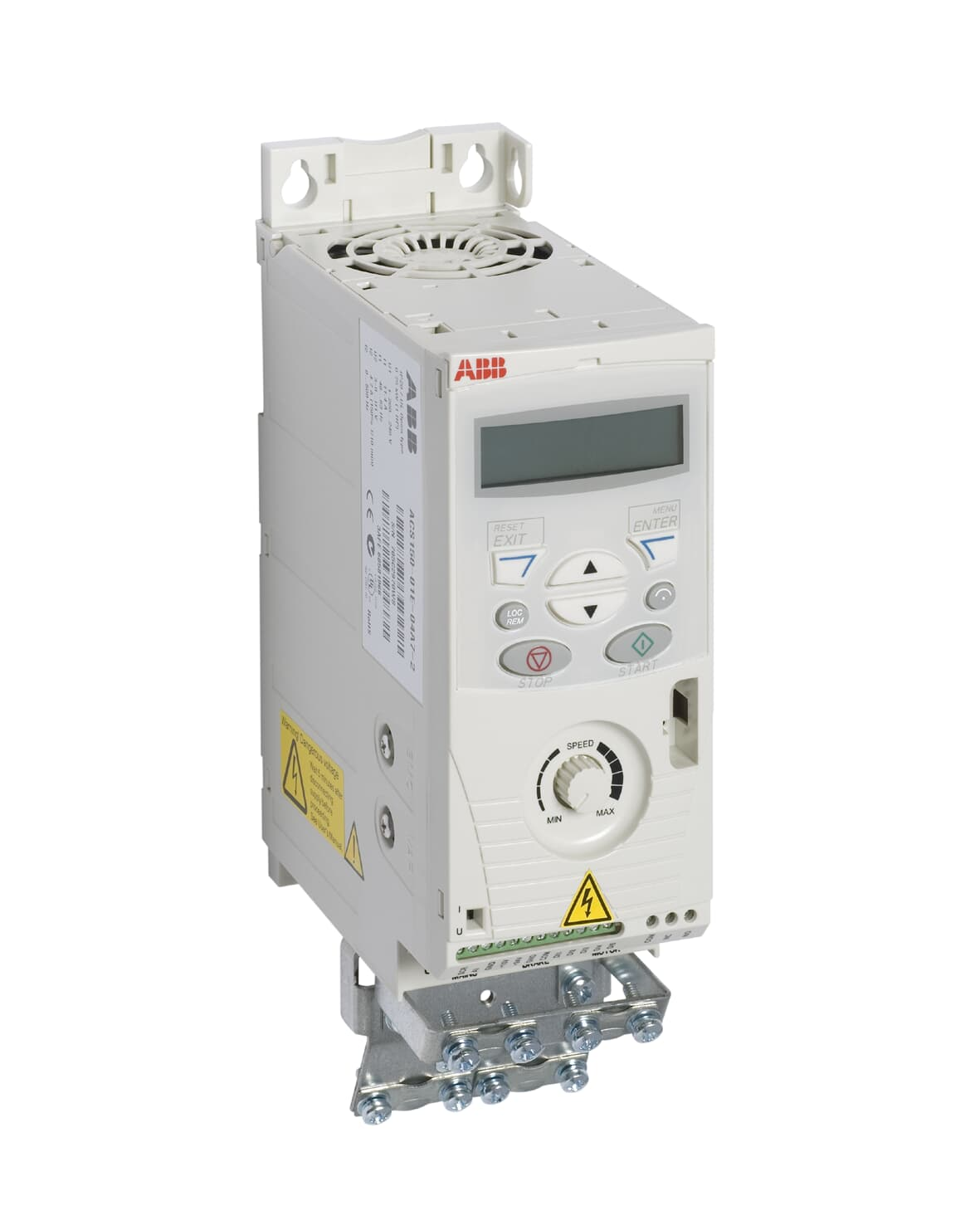

ACS150-01E-04A7-2 LV AC micro drive
Product ID: 68581966
Global Commercial Alias: ACS150-01E-04A7-2
ABB Type Designation: ACS150-01E-04A7-2
EAN: 6410038079321
Catalog Description: LV AC micro drive, IEC: Pn 0.75 kW, 4.7 A (ACS150-01E-04A7-2)
Description: The ACS150 drives are designed to be incorporated into a wide variety of machines such as mixers, conveyors, fans or pumps. The ACS150 drives have an integrated user panel, potentiometer and a variety of features such as pre-defined connection macros, making drive selection and configuration easy. With an optional FlashDrop tool these drives can be configured quickly in volume.
Customs Tariff Number: 85044085
HS Code: 850440 — ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description: ACS150-01E-04A7-2 Pn 0,75kW, I2n 4,7A IP20
Made To Order: No
Minimum Order Quantity: 1 piece
Order Multiple: 1 piece
Quote Only: No
Selling Unit of Measure: piece
Weight: 1.4 kg
Net Dimensions (L x H x W): 14.2 cm x 23.9 cm x 7.0 cm
Package Dimensions (L x H x W): 34.5 cm x 13.0 cm x 21.5 cm
Package Units: 1 carton
Number of Phases: 1-phase
Degree of Protection: IP20
Enclosure Type NEMA: Open Type
Battery Information: No battery / cell included
Frequency: 50/60 Hz
Frame Size: R1
Input Voltage: 200 … 240 V
Mounting Type: Module for cabinet building
Hardware Interfaces (Industrial Ethernet/PROFINET/RS-232/RS-422/RS-485/Serial TTY/USB/Parallel/Other): 0/0/0/0/0/0/0/0/1
Includes: With control unit, Without optical interface, With PC connection
Analog Inputs: 1
Analog Outputs: 0
Digital In/Outputs: 5/0
Output Current, Normal Use (In): 4.7 A
Output Current, Light-Overload Use (ILD): 4.7 A
Output Power, Normal Use (Pn): 0.75 kW
Output Power, Light-Overload Use (PLD): 0.8 kW
Power Consumption (@Pcons): 54 W
Apparent Power Output: 1.9 kV·A
Efficiency Level: IE2
Standby Loss: 11 W
Temperature Rating: Maximum 40 °C
Ecodesign Exemption: Energy efficiency data is not provided for the 1~230 V drives. The drives with one phase input are not in the scope of the EU ecodesign requirements (Regulation EU/2019/1781).
Declaration of Conformity – CE: 3AXD10000499279
REACH Date: 20250905
REACH Declaration: 9AKK107992A7060
REACH Information: True – contains substances > 0.1 mass percentage
RoHS Date: 20230303
RoHS Declaration: 3AXD10000499279
RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP: f90aa954-edeb-434f-894f-d90ec5e22a8c Finland
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
UNSPSC: 39122001
