Description

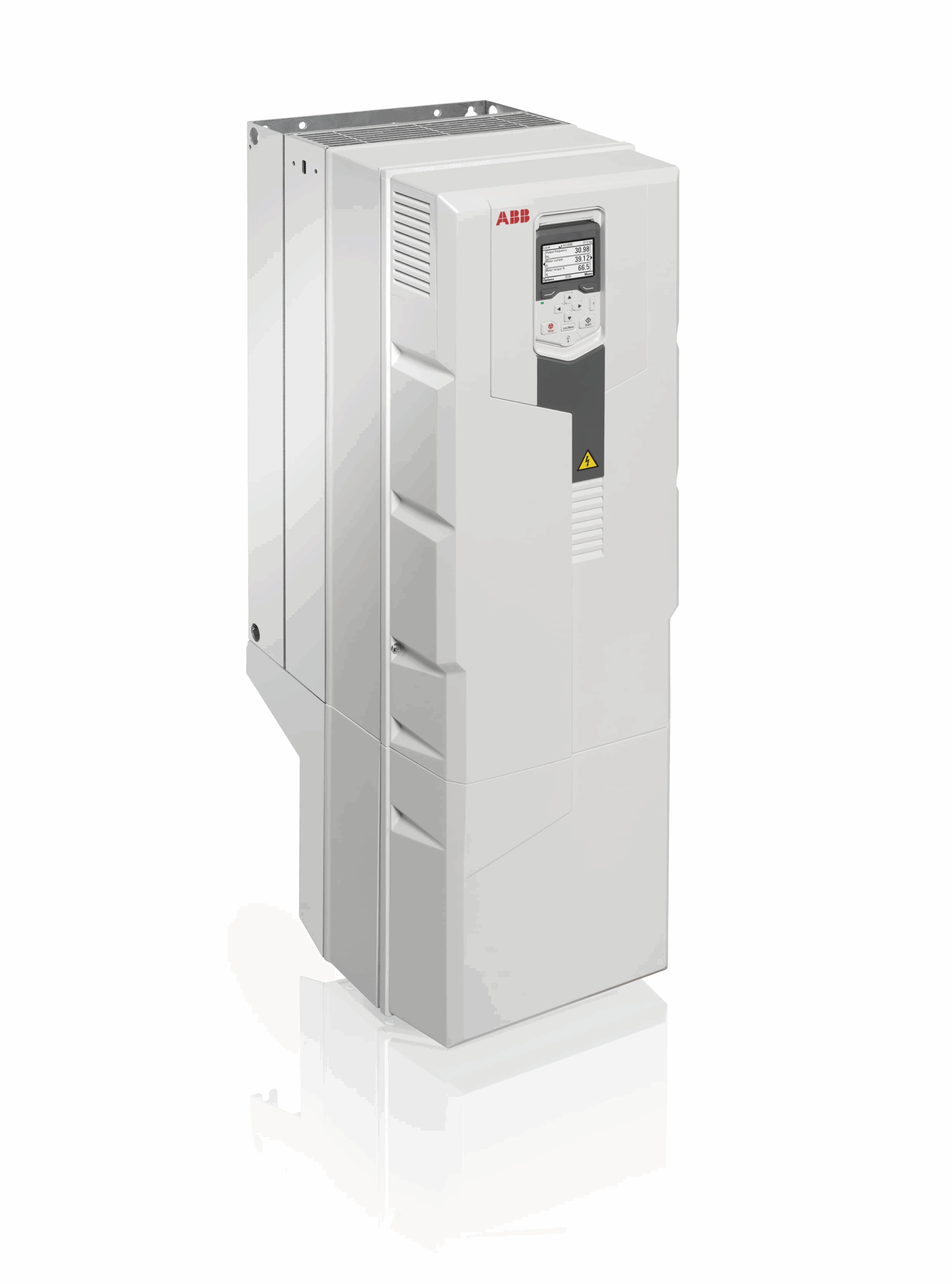

ACS580-01-169A-4 – LV AC general purpose wall-mounted drive
The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans and many other variable and constant torque applications, in light industries like food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. Features include a versatile and straightforward settings menu and assistants for fast setup, commissioning, use and maintenance. The rugged and robust design makes it suitable for various environments. The wall-mounted ACS580-01 comes in IP21 enclosure as standard; IP55 and flange mounting units are also available.
Electrical and Mechanical Specifications:
Output power normal use: 90 kW, Output current normal use: 169 A, Output current light-overload use: 161 A, Output current heavy-duty use: 145 A. Output power light-overload use: 90 kW, Output power heavy-duty use: 75 kW.
Input voltage range: 380 to 480 V, number of phases: 3-phase. Frequency range: 47.5 to 63 Hz. Mounting type: Wall-mounted. Frame size: R7.
Product dimensions (H x W x D): 88 cm x 28.4 cm x 37 cm. Product net weight: 54 kg.
Protection and environmental ratings: Degree of protection IP21, Enclosure Type NEMA Type1, Operating humidity: 5 to 95 %, Altitude: 1000 m. Sound level: 67 dB(A).
Interfaces and Communication Protocols:
Communication protocols supported: CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP.
Hardware interfaces include: Other 2, Parallel 2, RS-485 1, USB 1, Industrial Ethernet 0, PROFINET 0, RS-232 0, RS-422 0, Serial TTY 0.
Includes control unit and PC connection. Analog inputs: 2, Analog outputs: 2, Digital inputs/outputs: 6 / 3.
Efficiency: Efficiency level IE2, Apparent power output 117 kV·A, Standby loss 36 W, Power consumption 2021 W.
Temperature Rating: Maximum 40 °C, Minimum -15 °C.
Certifications: Declaration of Conformity – CE: 3AXD10001818627. REACH Date: 20250905, REACH Declaration: 9AKK107992A7060, RoHS Date: 20240508, RoHS Declaration: 3AXD10001818627.
Environmental Impact: Global Warming Potential includes distribution 10 kg CO2 eq, installation 59 kg CO2 eq, manufacturing 637 kg CO2 eq, use 20979 kg CO2 eq, end of life 91 kg CO2 eq, total 21777 kg CO2 eq.
Additional Information: Customs Tariff Code: 85044086. WEEE category: 4. Large Equipment (Any External Dimension More Than 50 cm).
