Block Contactor

Block Contactor

$100.58

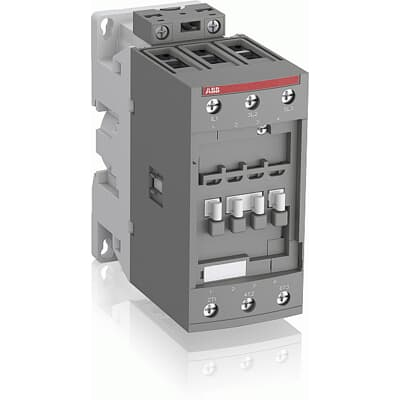

The AF52-30-00-13 is a 3 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL and switching power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Datasheet

datasheet

1 in stock

SKU: 1SBL367001R1300 Category:

Description

AF52-30-00-13 Block Contactor

The AF52-30-00-13 is a 3 pole – 690 V IEC or 600 UL contactor with screw terminals, designed to control motors up to 22 kW / 400 V AC (AC-3) or 40 hp / 480 V UL and switch power circuits up to 100 A (AC-1) or 80 A UL general use. Thanks to the AF technology, it features a wide control voltage range of 100-250 V 50/60 Hz and DC, managing large control voltage variations, reducing panel energy consumption and ensuring distinct operations in unstable networks. Surge protection is built-in, providing a compact solution. The contactor has a block type design and can be extended with add-on auxiliary contact blocks and a wide range of accessories.

Dimensions: Width 5.5 cm, Depth 11.1 cm, Height 12.55 cm, Weight 0.95 kg.

Electrical Ratings: Rated operational voltage main circuit 690 V, control circuit frequency 50/60 Hz, conventional thermal current 105 A (IEC 60947-4-1), operational currents in AC-1 up to 100 A at 40 °C, AC-3 up to 53 A at 415 V, DC ratings vary by voltage and poles configuration as detailed.

Connections and Terminals: Screw terminals, recommended Pozidriv PZ screwdriver, tightening torque control circuit 1.2 Nm, main circuit 4 Nm, wire stripping length control circuit 1 cm, main circuit 1.6 cm.

Protection and Standards: Protection IP20 coil terminals, IP10 main terminals; standards IEC/EN 60947-1 and 60947-4-1, UL and CSA certifications; suitable for operation up to 3000 m altitude without derating.

Operating Conditions: Ambient temperature from -40 to 70 °C near contactor with or without thermal overload relay, storage temperature -60 to +80 °C. Climatic withstand Category B per IEC 60947-1 Annex Q. Pollution degree 3.

Mechanical and Electrical Characteristics: Maximum mechanical operation frequency 3600 cycles/hour, maximum electrical switching frequency 1200 cycles/hour (AC-3). Rated insulation voltage 690 V (IEC), 600 V (UL/CSA), impulse withstand voltage 6 kV. Coil consumption average holding value 4 V·A at 50/60 Hz, 2 W DC. Power loss per pole 6.3 W (AC-1), 1.7 W (AC-3). Operate times detailed within 17 to 105 ms range depending on contact operation.

Customs Tariff Code: 85364900.

Post Views: 2,118

Additional information

Weight0.95 kg
Dimensions11.1 × 5.5 × 12.55 cm
Product ID

1SBL367001R1300

Extended Product Type

AF52-30-00-13

Number of Main Contacts NO

3

Number of Main Contacts NC

0

Number of Auxiliary Contacts NO

0

Number of Auxiliary Contacts NC

0

Number of Poles

3P

Standards

IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-1, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-1:22, CSA C22.2 No. 60947-4-1:22

Rated Operational Voltage

Main Circuit 690 V

Rated Frequency

Control Circuit 50 / 60 Hz

Conventional Free air Thermal Current Ith

105

Rated Operational Current AC-1 Ie

690 V, 40 °C 100; 690 V, 60 °C 80; 690 V, 70 °C 70

Rated Operational Current AC-3 Ie

415 V, 60 °C 53; 440 V, 60 °C 53; 500 V, 60 °C 45; 690 V, 60 °C 35; 380/400 V, 60 °C 53; 220/230/240 V, 60 °C 53

Rated Operational Current AC-3e Ie

Same as AC-3

Rated Operational Current DC-1 Ie

110 V 2 Poles in Series, 40 °C 100; 60 °C 80; 70 °C 70; 220 V 3 Poles in Series, 40 °C 100; 60 °C 80; 70 °C 70; 72 V 1-Pole, 40 °C 100; 60 °C 80; 70 °C 70; and other variations as listed

Rated Operational Current DC-3 Ie

Same as DC-1

Rated Operational Current DC-5 Ie

Same as DC-1

Rated Operational Power AC-3 Pe

400 V 22 kW; 415 V 30 kW; 440 V 30 kW; 500 V 30 kW; 690 V 30 kW; 380/400 V 22 kW; 220/230/240 V 15 kW

Rated Operational Power AC-3e Pe

Same as AC-3

Rated Short-time Withstand Current Low Voltage Icw

10 s 600 A; 15 min 110 A; 1 min 250 A; 1 s 1000 A; 30 s 350 A (all at 40 °C ambient temp, free air, cold state)

Maximum Breaking Capacity

cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 950 A; at 690 V 600 A

Rated Insulation Voltage Ui

690 V acc. to IEC 60947-4-1; 600 V acc. to UL/CSA

Rated Impulse Withstand Voltage Uimp

6 kV

Maximum Electrical Switching Frequency

(AC-1) 600 cycles per hour; (AC-2 / AC-4) 150 cycles per hour; (AC-3) 1200 cycles per hour

Maximum Mechanical Switching Frequency

3600

Rated Control Circuit Voltage Uc

50 Hz 100 … 250 V; 60 Hz 100 … 250 V; DC Operation 100 … 250 V

Coil Consumption

Average Holding Value 50 / 60 Hz 4 V·A; Average Holding Value DC 2 W

Power Loss

at Rated Operating Conditions AC-1 per Pole 6.3 W; at Rated Operating Conditions AC-3 per Pole 1.7 W

Operate Time

Between Coil De-energization and NC Contact Closing 19 … 105 ms; Between Coil De-energization and NO Contact Opening 17 … 100 ms; Between Coil Energization and NC Contact Opening 38 … 95 ms; Between Coil Energization and NO Contact Closing 42 … 100 ms

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Mounting by Screws

2 x M4 or 2 x M6 Screws Placed Diagonally

Connecting Capacity Main Circuit

Flexible with Ferrule 1/2x 4 … 35 mm²; Flexible with Insulated Ferrule 1/2x 4 … 35 mm²; Rigid Stranded 1/2x 6 … 35 mm²

Connecting Capacity Control Circuit

Flexible with Ferrule 1/2x 0.75 … 2.5 mm²; Flexible with Insulated Ferrule 1x 0.75 … 2.5 mm²; Flexible with Insulated Ferrule 2x 0.75 … 1.5 mm²; Rigid Solid 1/2x 1 … 2.5 mm²; Rigid Stranded 1/2x 1 … 2.5 mm²

Wire Stripping Length Control Circuit

1

Wire Stripping Length Main Circuit

1.6

Degree of Protection

acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20; acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10

Recommended Screw Driver

Pozidriv PZ

Tightening Torque Control Circuit Nm

1.2

Tightening Torque Main Circuit Nm

4

Terminal Type

Screw Terminals

Maximum Operating Voltage UL CSA

Main Circuit 600 V

General Use Rating UL CSA

(600 V AC) 80 A

Horsepower Rating UL CSA

(120 V AC) Single Phase 3 hp; (200 … 208 V AC) Three Phase 15 hp; (220 … 240 V AC) Three Phase 20 hp; (240 V AC) Single Phase 10 hp; (440 … 480 V AC) Three Phase 40 hp; (550 … 600 V AC) Three Phase 50 hp

Connecting Capacity Main Circuit UL CSA

Rigid Stranded 1/2x 10-2 AWG

Connecting Capacity Control Circuit UL CSA

Rigid Solid 1/2x 18-14 AWG; Rigid Stranded 1/2x 18-14 AWG

Tightening Torque UL CSA Control Circuit inlb

11

Tightening Torque UL CSA Main Circuit inlb

35

Full Load Amps Motor Use

(120 V AC) Single Phase 34 A; (200 … 208 V AC) Three Phase 48.3 A; (220 … 240 V AC) Three Phase 54 A; (240 V AC) Single Phase 50 A; (440 … 480 V AC) Three Phase 52 A; (550 … 600 V AC) Three Phase 52 A

Ambient Air Temperature Close to Contactor Fitted with Thermal OL Relay Celsius

-40 … 70

Ambient Air Temperature Close to Contactor without Thermal OL Relay Celsius

-40 … 70

Ambient Air Temperature Close to Contactor for Storage Celsius

-60 … 80

Climatic Withstand

Category B according to IEC 60947-1 Annex Q

Maximum Operating Altitude Permissible m

3000

Resistance to Shock acc to IEC 60068 2 27

Closed, Shock Direction: A 25 g; Closed, Shock Direction: B1 25 g; Closed, Shock Direction: B2 15 g; Closed, Shock Direction: C1 25 g; Closed, Shock Direction: C2 25 g; Open, Shock Direction: B1 5 g

Resistance to Vibrations

3g Closed Position & 3g Open Position 5 … 300 Hz

Pollution Degree

3

Customs Tariff Number

85364900
