Description
Product details

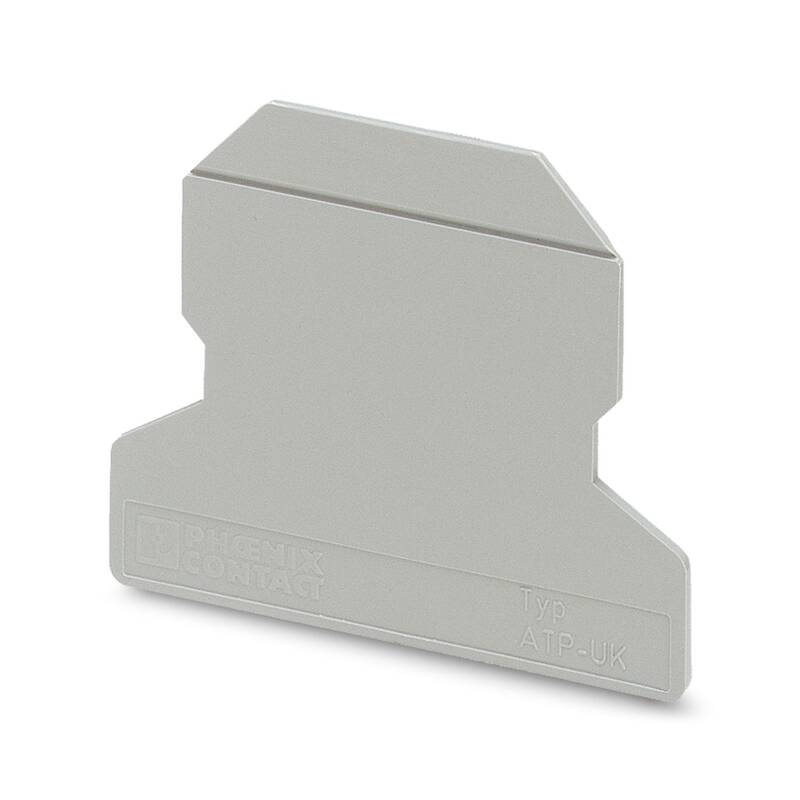

Partition plate, depth: 45.7 mm, width: 3 mm, height: 56 mm, color: dark gray
Technical data
Dimensions
Width: 3 mm
End cover width: 1.5 mm
Height: 56 mm
Depth: 45.7 mm
Material specifications
Color: traffic gray B (RAL 7043)
Flammability rating according to UL 94: V0
Insulating material: PA
Environmental and real-life conditions
Ambient temperature (operation): -60 °C … 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport): -25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly): -5 °C … 70 °C
Ambient temperature (actuation): -5 °C … 70 °C
Permissible humidity (storage/transport): 30 % … 70 %
Commercial data
Item number: 3046272
Packing unit: 50 pc
Minimum order quantity: 500 pc
GTIN: 4046356586412
Weight per piece (including packing): 3.69 g
Weight per piece (excluding packing): 3.48 g
Customs tariff number: 85472000
Country of origin: DE
Classifications
ECLASS-13.0: 27250301
ECLASS-15.0: 27250301
ETIM 9.0: EC000886
UNSPSC 21.0: 39121400
Environmental product compliance
EU RoHS: Fulfills EU RoHS substance requirements Yes (No exemptions)
China RoHS: Environment friendly use period (EFUP) EFUP-E No hazardous substances above the limits
EU REACH SVHC: No substance above 0.1 wt%
