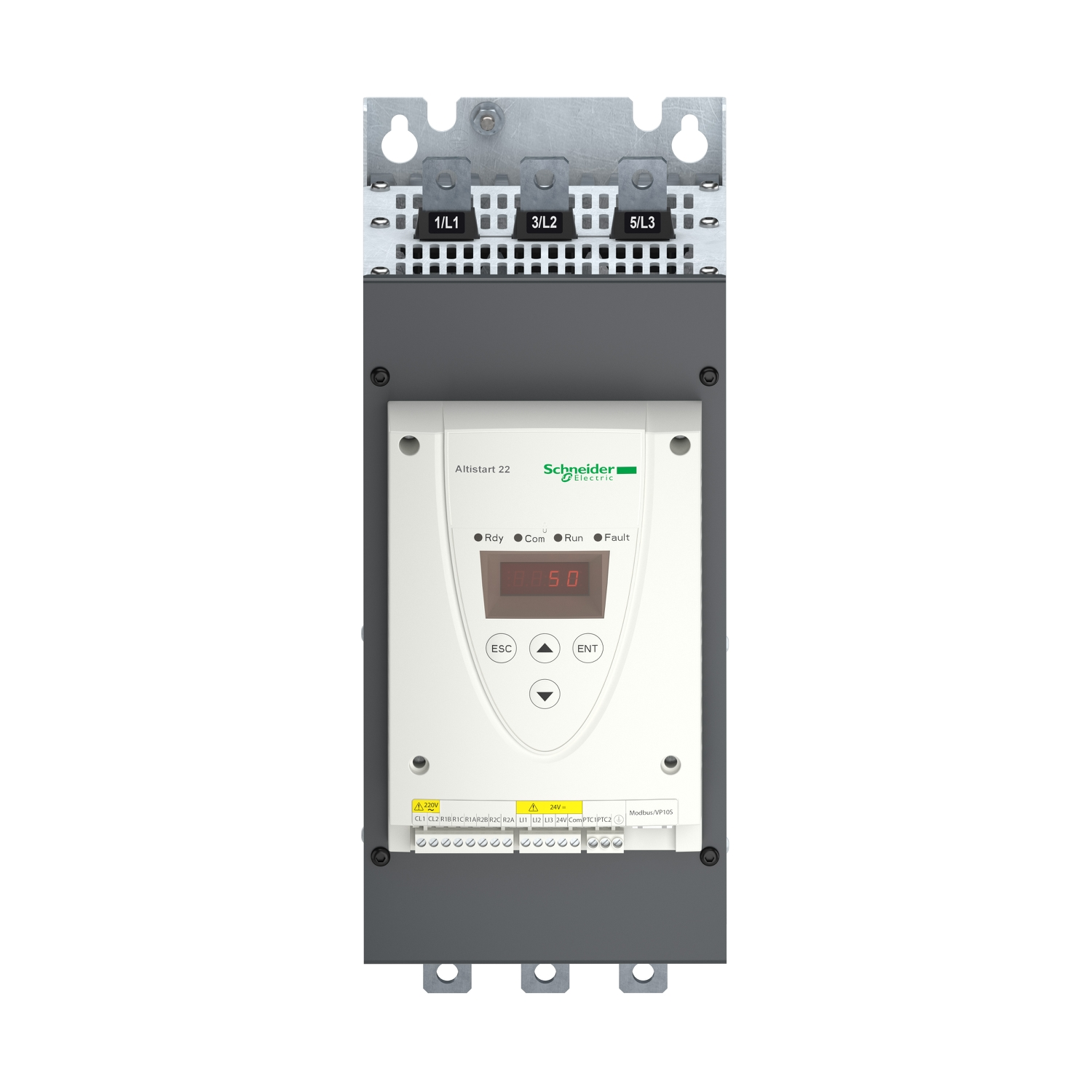

ATS22C11Q – Soft Starter for Asynchronous Motor
This Altistart 22 soft starter controls 3-phase asynchronous motors with rated supply voltage of 230 to 440 V (±15 to 10%). It supports motor power from 30 kW at 230 V up to 55 kW at 400 and 440 V. The device has a factory setting current of 100 A and an IcL starter rating of 110 A in the motor supply line for standard applications. Its power dissipation is 73 W in typical use.
Features: Internal bypass, start with torque control (current limited to 3.5 In), and conforms to IP20 protection class. The device operates under voltage limits of 195 to 484 V with a supply frequency of 50 to 60 Hz ±10%, and supports a control circuit voltage of 230 V ±15 to 10% at 50/60 Hz. Cooling is by forced convection, and the unit is designed for vertical installation within +/- 10 degrees.
The product provides two relay outputs with a maximum switching current of 5 A for resistive loads at 250 VAC and 30 VDC, and supports three discrete inputs operating at 24 V DC with positive logic. It includes a Modbus communication protocol via an RJ45 connector using RS485 multidrop interface supporting transmission rates of 4800, 9600, or 19200 bps.
Dimensions and Weight: Height 35.6 cm, Width 15 cm, Depth 22.95 cm, and net weight 18 kg.
Applications: Designed for use with asynchronous motors in pumps, fans, screw compressors, and material handling equipment. It ensures smooth starting, reducing mechanical stress and noise, while extending machinery service life.
Environmental and Compliance: Packaging contains minimum 70% recycled cardboard (50% in US), with no global take-back program participation. The product complies pro-actively with EU RoHS and REACh regulations, includes California Proposition 65 warning for lead compounds, and is CE marked. Customs Tariff Code: 8504408590.
Ordering & Shipping: Package 1 dimensions: 25 x 33 x 41 cm, weight 12.744 kg; Package 2 dimensions: 75 x 60 x 80 cm, weight 64.472 kg. Warranty period is 18 months.
