Description

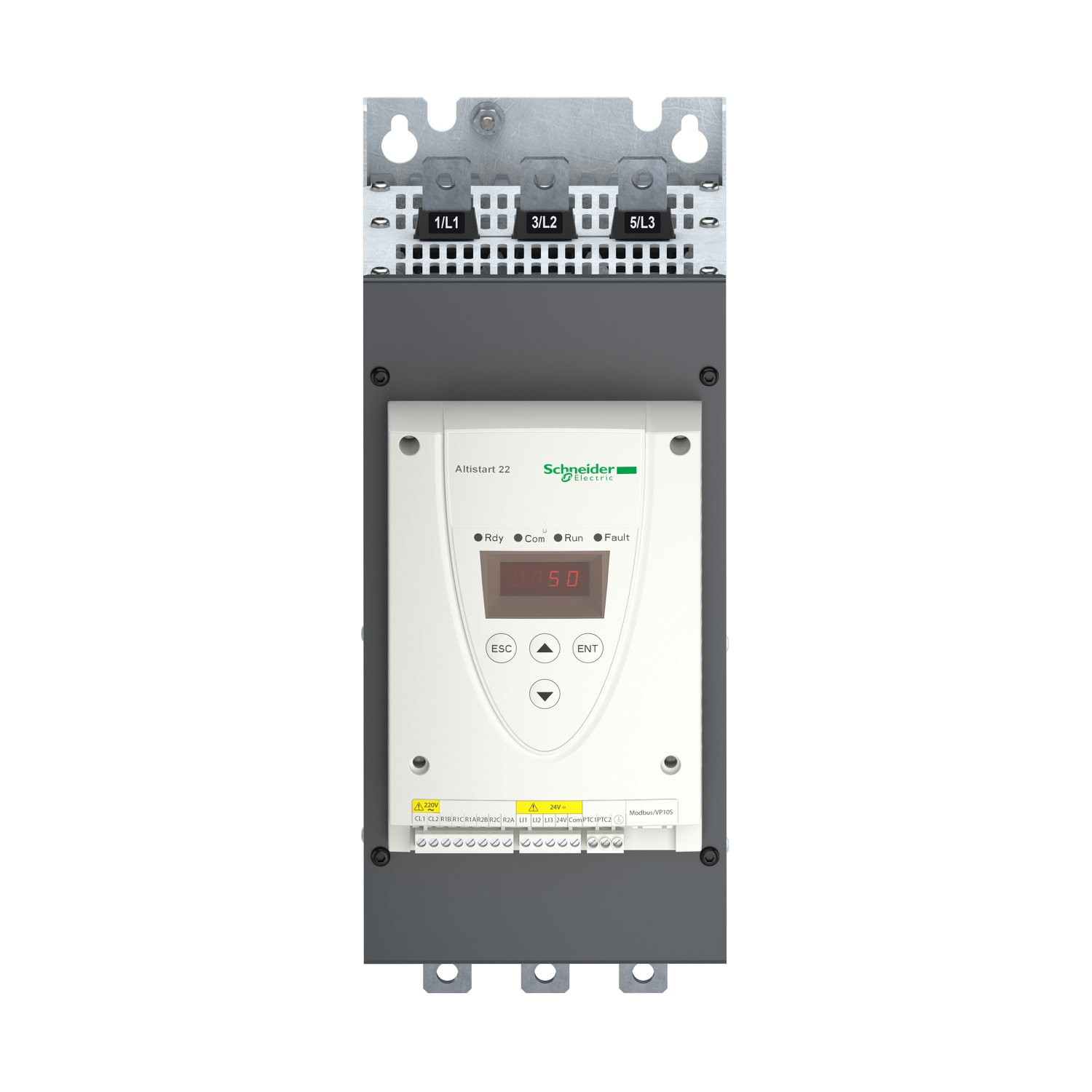

ATS22C14Q Soft Starter
Type: Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 37 to 75 kW.
This Altistart 22 soft starter is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors, and material handling equipment. It provides smooth starting, avoiding mechanical stresses and extending service life of machinery. The slim form factor improves versatility and allows mounting in frames of any kind of machines.
Electrical Specifications: Rated supply voltage ranges from 195 to 484 V with nominal 230 to 440 V; three-phase; rated power from 37 to 75 kW; factory setting current is 131 A; power dissipation is 82 W for standard applications. IcL starter rating is 140 A connection in the motor supply line; type of start is start with torque control (current limited to 3.5 In). Utilisation category is AC-53A.
Control Circuit: 230 V control circuit voltage with 20 W consumption; discrete inputs include 3 logic inputs at 24 V dc; discrete outputs include 2 relay outputs (R1 and R2) at 230 V with various signal states.
Communication: Supports Modbus protocol via 1 RJ45 connector; data link is serial using RS485 multidrop physical interface with transmission rates of 4800, 9600, or 19200 bps.
Protection and Standards: Includes protections for phase failure line, thermal protection for motor and starter; marked CE; standards IEC 60947-4-2; certifications UL, CSA, C-tick, GOST, CCC; pollution degree 2; vibration and shock resistance as per IEC standards.
Environment: Operating temperature from -10 to 40 °C without derating and up to 60 °C with derating; storage temperature from -25 to 70 °C; relative humidity 0-95% without condensation.
Physical Dimensions: Height 35.6 cm; Width 15.0 cm; Depth 22.95 cm; Net Weight 18 kg; operating position vertical +/- 10 degrees; cooling by forced convection.
Packaging: Main package size 25.5 cm x 32.5 cm x 41.5 cm; weight approx. 13.2 kg; secondary package 63.0 cm x 80.0 cm x 60.0 cm with 4 units and weight approx. 65.8 kg.
Warranty: 18 months.
