Description

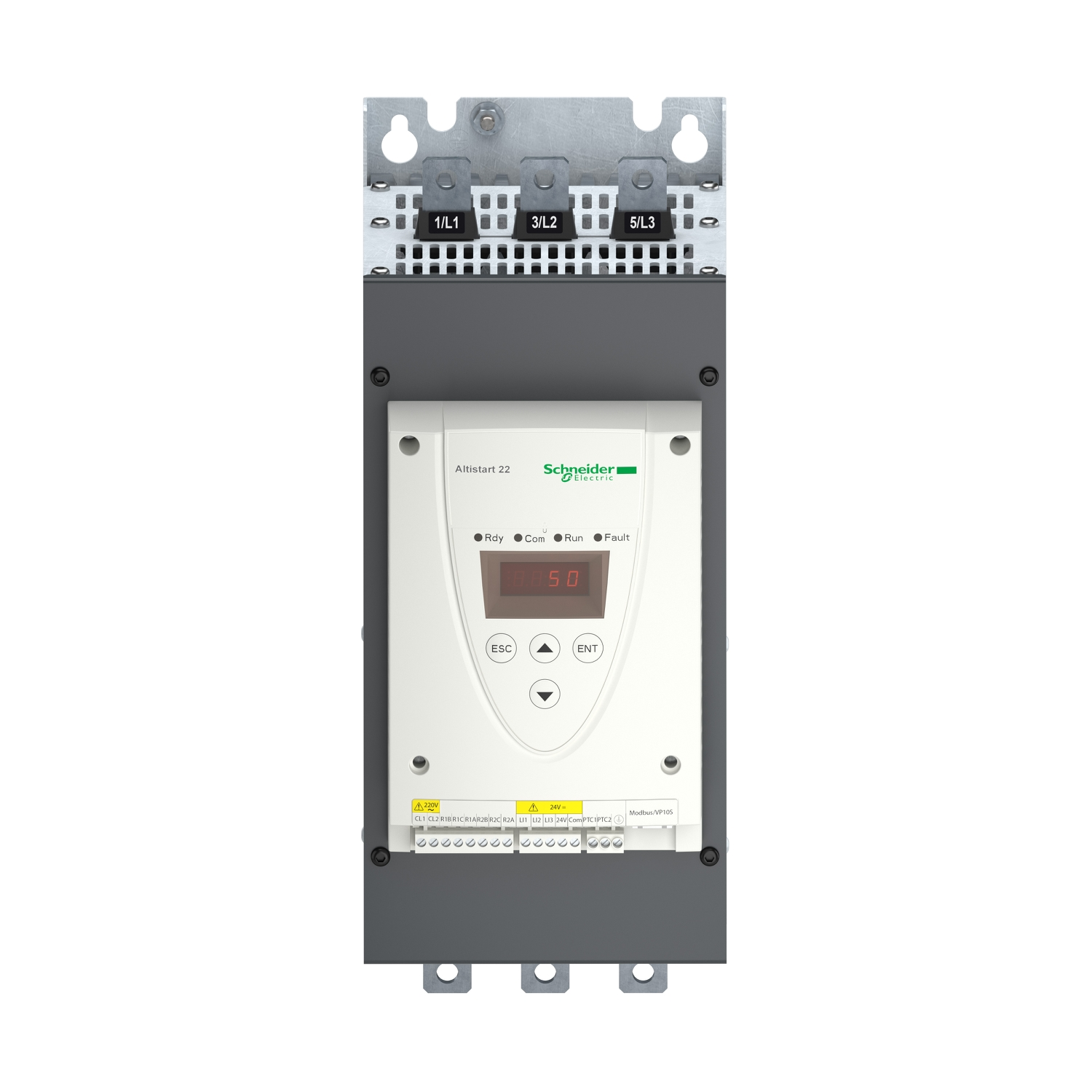

ATS22C17Q Soft Starter for Asynchronous Motor
Product Range: Soft Start – Altistart 22 (Mid-Range)
This Altistart 22 soft starter is designed for asynchronous motors with control 230V and supply voltages from 230 to 440 V, suitable for motor power from 45 kW at 230 V up to 90 kW at 400 and 440 V. It supports 3 phase power supply with factory setting current of 162 A and a starter rating of 170 A for standard applications.
Key Features: Provides smooth starting to avoid mechanical stress and extends the motor service life. Integrated bypass reduces noise and heat dissipation. Slim form factor improves versatility and ease of mounting within machine frames. Compatible with SoMove software for quick configuration and spare installation.
Electrical Characteristics: Utilization category AC-53A, start type with torque control limiting current to 3.5 times nominal. Control circuit voltage is 230 V, 50/60 Hz, consuming 20 W.
Protection and Cooling: Marked CE with phase failure line, thermal protection for motor and starter, forced convection cooling, and operating position vertical with ±10 degree tolerance.
Dimensions: Height 35.6 cm, Width 15 cm, Depth 22.95 cm, Net Weight 18 kg.
Environmental and Certifications: Meets IEC 60947-4-2 standards with certifications CSA, C-tick, GOST, UL, CCC. Operates within ambient temperature -10…40 °C without derating and has noise level of 56 dB. Packaging uses recycled cardboard with minimum 70% content.
Packaging Unit Details: Single piece package with dimensions 25.0 cm x 33.0 cm x 41.0 cm weighing 13.218 kg. Also available in packs of 4 with larger packaging.
Customs Tariff Code: 85371098
