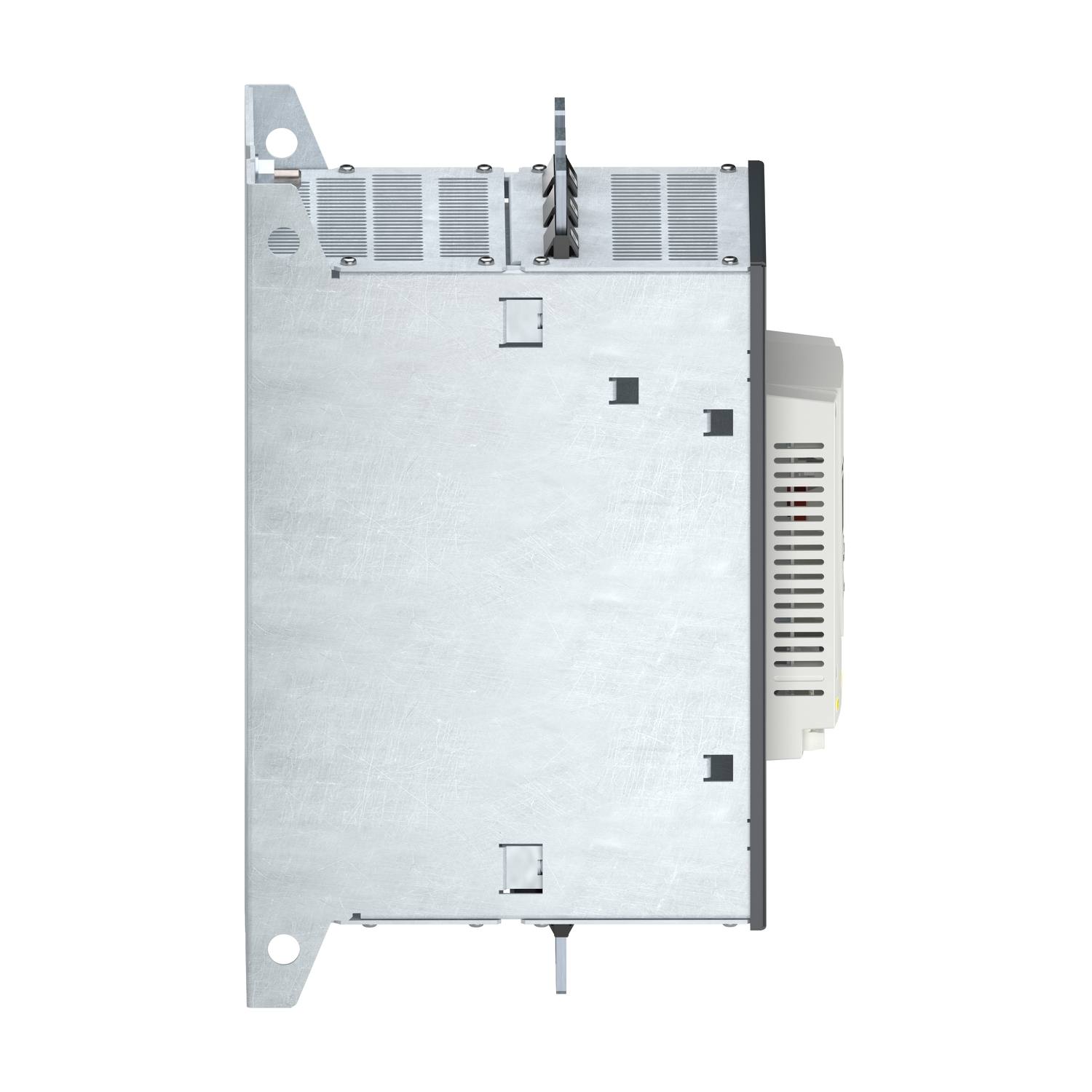

ATS22C25Q Soft Starter for Asynchronous Motor
Description: Soft starter for asynchronous motor, Altistart 22, control 230V, 230 to 440V, 75 to 132kW. This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line or delta connection. It features a rating of 233 A factory setting current, with power ratings of 132 kW at 400 V and 440 V, and 75 kW at 230 V. Designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors, and material handling equipment.
Main Features: Smooth starting to avoid mechanical stresses and extend service life. Integrated bypass reduces noise and heat dissipation. Slim form factor for versatile mounting. Compatibility with SoMove software for easy configuration transfer.
Technical Specifications:
- Phase: 3 phase
- Rated supply voltage (Us): 230 to 440 V with -15…10 % tolerance
- Power dissipation: 129 W for standard applications
- Utilisation category: AC-53A
- Type of start: Start with torque control (current limited to 3.5 In)
- Starter rating (IcL): 250 A connection in the motor supply line
- Degree of Protection: IP00
- Assembly style: With heat sink
- Supply voltage limits: 195 to 484 V
- Supply frequency: 50-60 Hz ±10%
- Control circuit voltage (Uc): 230 V ±15…10 % 50/60 Hz
- Control circuit consumption: 20 W
- Discrete outputs: 2 relay outputs with multiple status indications
- Discrete inputs: 3 logic inputs (24 V <=30 V)
- Output current: Adjustable 0.4 to 1 Icl
- Communication port: Modbus via 1 RJ45 connector, Serial RS485 multidrop, 4800 to 19200 bps
- Protection types included: Phase failure line, Thermal protection motor and starter
- Cooling: Forced convection
- Operating position: Vertical ±10 degrees
Dimensions: Height 42.5 cm; Width 20.6 cm; Depth 29.9 cm.
Weight: 33 kg.
Motor power range AC-3: 55 to 100 kW at 200-240 V 3 phase; 110 to 220 kW at 380-440 V 3 phase.
Standards and Certifications: IEC 60947-4-2 standard compliant. Certified by C-tick, GOST, UL, CCC, and CSA.
Environmental and Mechanical Data: Noise level 56 dB; Vibration resistance 1 gn at 13-200 Hz; Shock resistance 15 gn 11 ms; Pollution degree Level 2.
Operating Conditions: Ambient air temperature for operation -10 to 40 °C without derating; 40 to 60 °C with current derating 2.2 % per °C. Storage temperature -25 to 70 °C. Operating altitude up to 1000 m without derating, up to 2000 m with derating.
Packaging: Package dimensions 49.0 cm height, 36.7 cm width, 55.5 cm length; Package weight 26.25 kg; Unit type PCE with 1 unit per package.
Warranty: 18 months.
Customs Tariff Code: 85044050
