Description

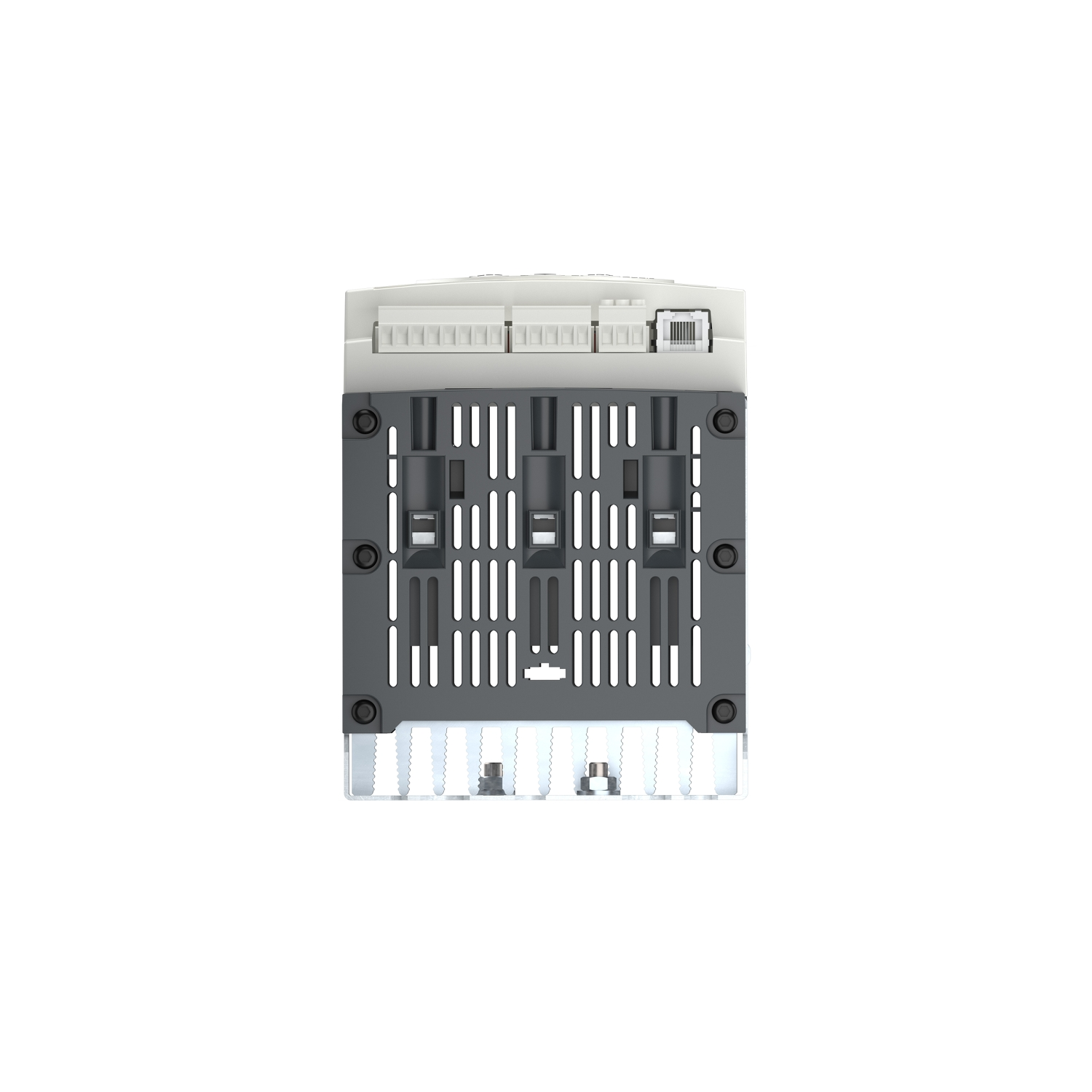

Product: ATS22D32Q Soft Starter
Description: Soft starter for asynchronous motor, Altistart 22, control voltage 230 V, motor supply voltage from 230 to 440 V, rated power from 7.5 to 15 kW. Capable to supply 3-phase asynchronous motors in supply line or delta connection with a rated current of 32 A. Rated power up to 15 kW at 400 to 440 V supply line and up to 22 kW at 400 to 440 V motor delta connection. Suitable for machines such as centrifugal and piston pumps, fans, screw compressors, and material handling equipment.
Features: Slim form factor for versatility; integrated bypass to reduce noise and heat dissipation; compatibility with SoMove software for easy configuration and settings transfer; provides smooth starting to avoid mechanical stresses and extends service life.
Main Specifications: 3 phase; factory setting current 28.5 A; power dissipation 44 W; utilisation category AC-53A; start with torque control (current limited to 3.5 In); IP20 protection; internal bypass; supply voltage limits 195 to 484 V; supply frequency 50 to 60 Hz; control circuit voltage 230 V; control consumption 20 W; 2 relay discrete outputs; 3 discrete inputs; Modbus communication via RJ45 connector; forced convection cooling.
Dimensions (HxWxD): 26.5 cm x 13 cm x 16.9 cm; weight 7 kg.
Environmental and Mechanical: Vibration resistance 1 gn (13–200 Hz) and 1.5 mm (2–13 Hz); shock resistance 15 gn 11 ms; noise level 45 dB; pollution degree level 2; operating temperature -10 to 40 °C without derating, 40 to 60 °C with derating; storage temperature -25 to 70 °C; operating altitude up to 1000 m without derating; above 1000 m de-rating 2.2% per 100 m.
Certifications: CE marked; the product complies with IEC 60947-4-2 standard and has GOST, C-tick, UL, CCC, CSA certifications.
Country of origin: ID.
Customs Tariff Code: 85014000.
