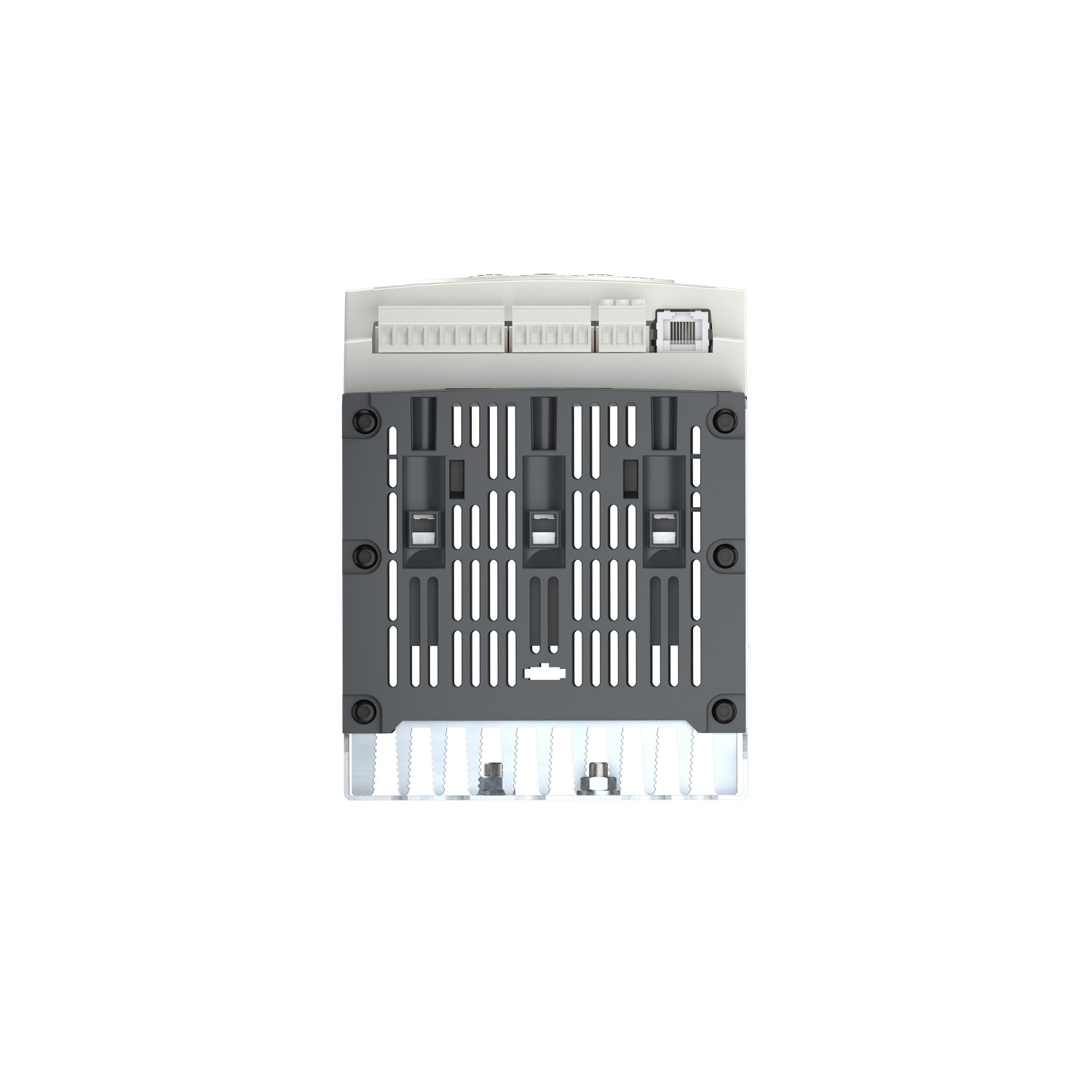

ATS22D47Q – Soft Starter for Asynchronous Motor
Product Range: Soft Start – Altistart 22
This soft starter is designed for asynchronous motors, with control voltage of 230V, operating voltage range from 230 to 440 V, and motor power rating from 11 to 22 kW. Suitable for pumps and fans.
Electrical Specifications: Rated supply voltage: 230…440 V; Factory setting current: 42 A; Power dissipation: 48 W; Rated motor power: 11 kW at 230 V, 22 kW at 400 V, and 22 kW at 440 V.
Mechanical Dimensions: Height: 26.5 cm; Width: 13.0 cm; Depth: 16.9 cm; Net weight: 7 kg.
Features: 3 phase; Type of start: start with torque control (current limited to 3.5 In); ICL starter rating: 47 A connection in the motor supply line; IP degree of protection: IP20; Assembly style: with heat sink; Function available: internal bypass; Control circuit voltage: 230 V; Control circuit consumption: 20 W; Communication port protocol: Modbus over RS485 multidrop interface.
Environmental Conditions: Operating temperature range: -10…40 °C without derating, 40…60 °C with current derating of 2.2 % per °C; Storage temperature range: -25…70 °C; Operating altitude up to 1000 m without derating, higher altitudes require derating.
Certifications and Standards: IEC 60947-4-2; CCC, C-tick, UL, GOST, CSA certified; Provides electromagnetic compatibility with emissions and immunity conforming to IEC standards.
Package Dimensions: Single unit package: height 26.924 cm, width 22.098 cm, length 33.274 cm, weight 5.606 kg; Package of 10 units: height 73.5 cm, width 80 cm, length 60 cm, weight 69.76 kg.
Warranty: 18 months.
