Description

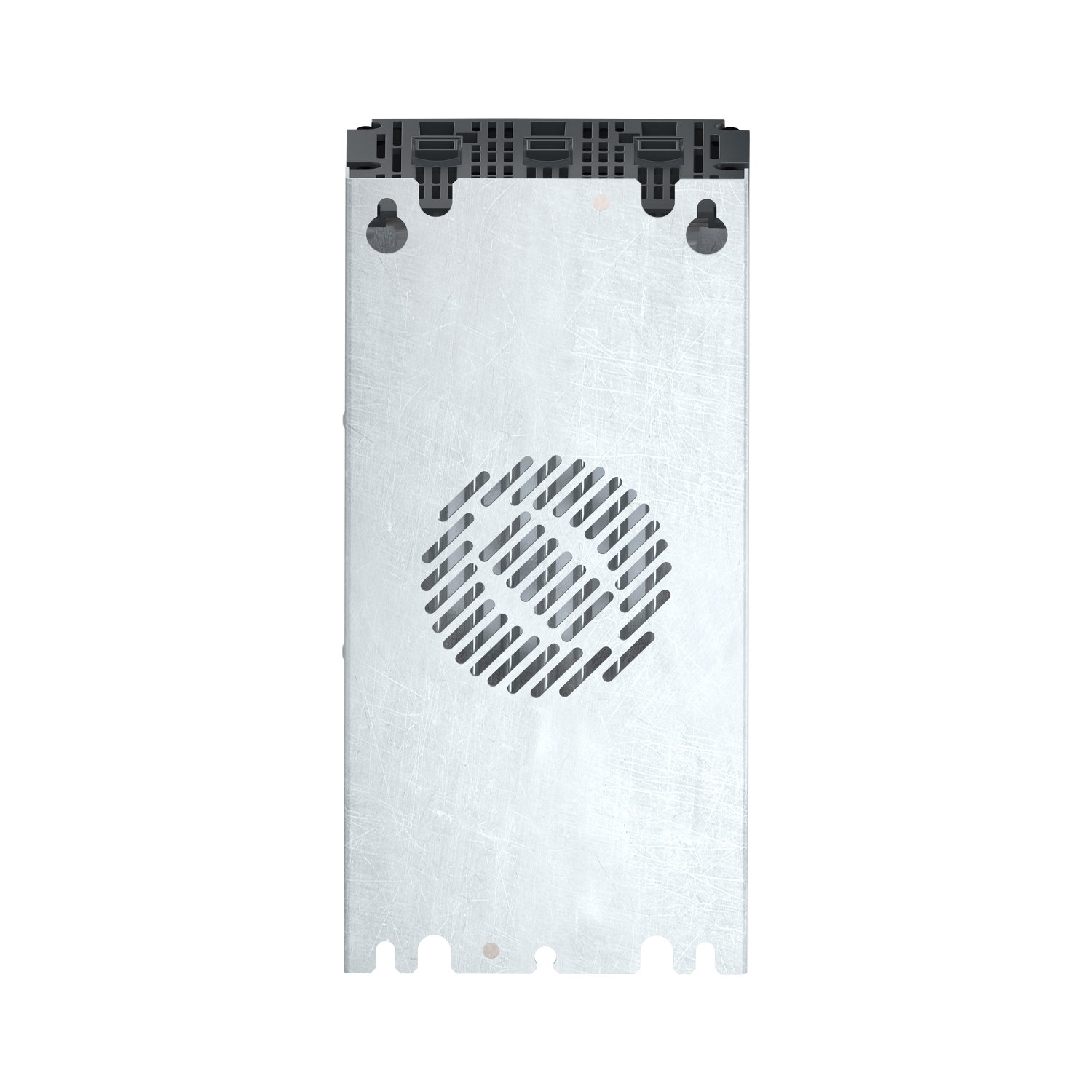

ATS22D75Q Soft Starter for Asynchronous Motor
This soft starter feeds 3-phase asynchronous motors in supply line or delta connection. It has a rating of 75A and supply voltage from 230 V to 440 V with a rated power up to 37kW at 400 V and 440 V in supply line, and up to 75kW in motor delta connection. Designed for various machines like centrifugal and piston pumps, fans, screw compressors, and material handling equipment.
Key features: Integrated bypass reduces noise and heat dissipation. Compatibility with SoMove software enables easy configuration transfer for quick spare installation. Provides smooth starting to avoid mechanical stresses and extend service life. Slim form factor for versatile mounting.
Technical specifications:
Phase: 3
Rated supply voltage: 230…440 V (-15…+10%)
Motor power kW: 37 at 400 V and 440 V, 18.5 at 230 V
Factory setting current: 69 A
Power dissipation: 63 W (standard applications)
Utilisation category: AC-53A
Type of start: Start with torque control (current limited to 3.5 In)
Starter rating: 75 A in motor supply line
IP degree of protection: IP20
Assembly style: With heat sink
Function available: Internal bypass
Supply voltage limits: 195…484 V
Supply frequency: 50-60 Hz ±10%
Device connection: Motor supply line and delta terminals
Control circuit voltage: 230 V ±15% 50/60 Hz
Control circuit consumption: 20 W
Discrete outputs: 2 relays with multiple statuses
Discrete inputs: 3 logic inputs
Output current adjustable: 0.4 to 1 times Icl
PTC probe input: 750 Ohm
Communication: Modbus RS485 multidrop via 1 RJ45 connector
Protection: Phase failure, thermal motor and starter protection
Marking: CE
Cooling: Forced convection
Operating position: Vertical ±10°
Dimensions (H x W x D): 29.5 cm x 14.5 cm x 20.7 cm
Net weight: 12 kg
Noise level: 45 dB
Pollution degree: 2 IEC 60664-1
Operating temperature: -10 to 40 °C without derating (max 60 °C with derating)
Storage temperature: -25 to 70 °C
Operating altitude: up to 1000 m without derating; derating above
Certifications and standards: CSA, UL, GOST, CCC, C-tick; IEC 60947-4-2 compliance.
Environmental data: No recycled cardboard packaging; not included in take-back programs.
