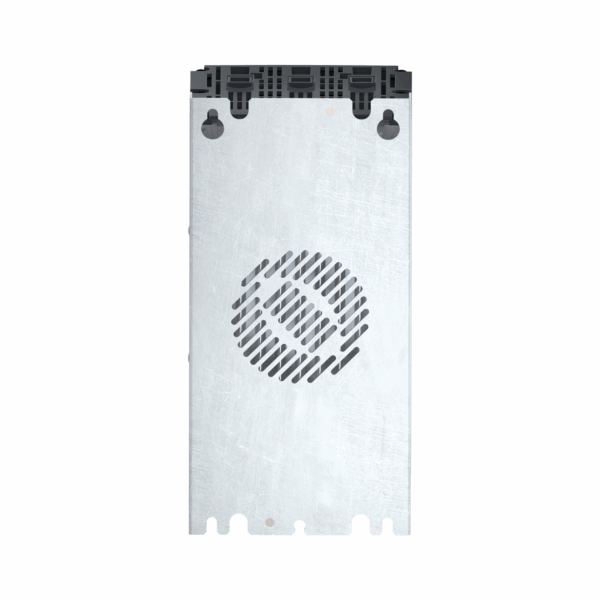

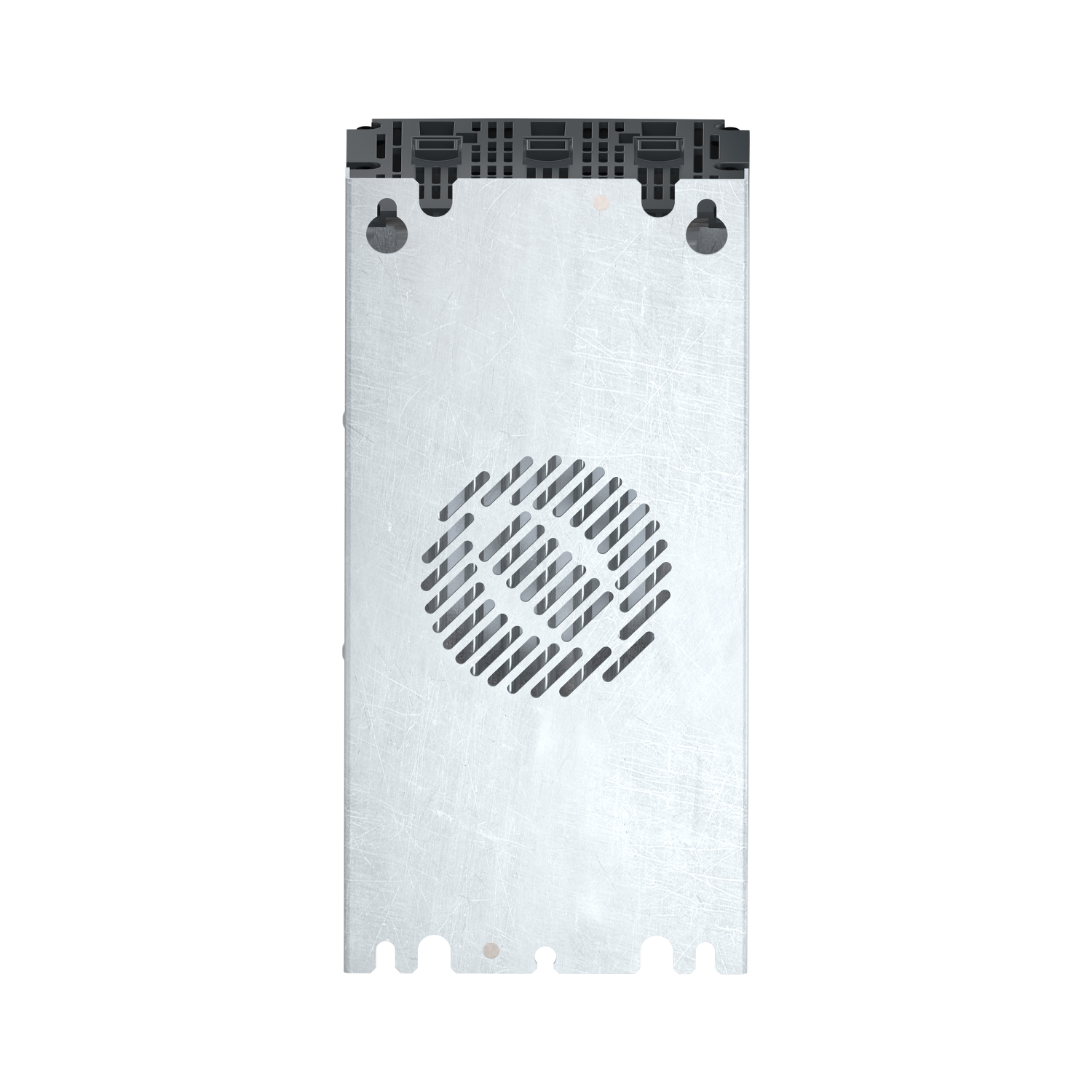

ATS22D88Q – Soft starter for asynchronous motor, Altistart 22
Control Voltage: 230 V
Supply Voltage: 230 to 440 V (-15%…+10%)
Motor Power Ratings: 22 kW at 230 V, 45 kW at 400 V, 45 kW at 440 V
Factory Setting Current: 81 A
Power Dissipation: 66 W (standard applications)
Utilisation Category: AC-53A
Start Type: Start with torque control (current limited to 3.5 In)
Starter Rating: 88 A for motor supply line (standard applications)
Degree of Protection: IP20
Mounting Style: With heat sink
Function Available: Internal bypass
Supply Voltage Limits: 195 to 484 V
Supply Frequency: 50 to 60 Hz ±10%
Device Connection: To motor delta terminals or motor supply line
Control Circuit Voltage: 230 V ±15% to -10% 50/60 Hz
Control Circuit Consumption: 20 W
Outputs: 2 relay outputs R1 and R2 (230 V for running, alarm, trip, stopped, not stopped, starting, ready)
Discrete Inputs: 3 logic inputs positive logic, 24 Vdc max 30 V
Output Current Adjustable: 0.4 to 1 Icl
PTC Probe Input: 750 Ohm
Communication Protocol: Modbus via 1 RJ45 RS485 multidrop serial link (4800, 9600 or 19200 bps)
Protection Types: Phase failure line, thermal protection motor and starter
Marking: CE
Cooling: Forced convection
Operating Position: Vertical ±10°
Dimensions (H x W x D): 29.5 cm x 14.5 cm x 20.7 cm
Net Weight: 12 kg
Motor power range AC-3: 15 to 25 kW at 200 to 240 V 3-phase, 30 to 50 kW at 380 to 440 V 3-phase
Electromagnetic Compatibility: Conforms to IEC 60947-4-2 emissions and immunity levels
Standards: IEC 60947-4-2
Product Certifications: CCC, CSA, UL, GOST, C-tick
Vibration Resistance: 1 gn (13 to 200 Hz), 1.5 mm (2 to 13 Hz)
Shock Resistance: 15 gn 11 ms
Noise Level: 45 dB
Pollution Degree: Level 2 IEC 60664-1
Relative Humidity: 0 to 95% without condensation or dripping water
Operating Temperature: -10 to 40 °C (without derating); 40 to 60 °C with derating at 2.2% per °C
Storage Temperature: -25 to 70 °C
Operating Altitude: up to 1000 m without derating; above 1000 to 2000 m with derating 2.2 % per additional 100 m
Country of Origin: Indonesia
Customs Tariff Code: US1CP1G22576
Packaging: Primary package 23.0 cm (H) x 30.8 cm (W) x 35.8 cm (L), 8.17 kg; Secondary package 75.0 cm (H) x 60.0 cm (W) x 80.0 cm (L), 63.184 kg
Warranty: 18 months
Main Benefits: Smooth starting to avoid mechanical stresses and extend service life; reduced noise for operator comfort; slim form factor for versatile mounting; integrated bypass reduces noise and heat; compatible with SoMove software for easy configuration
