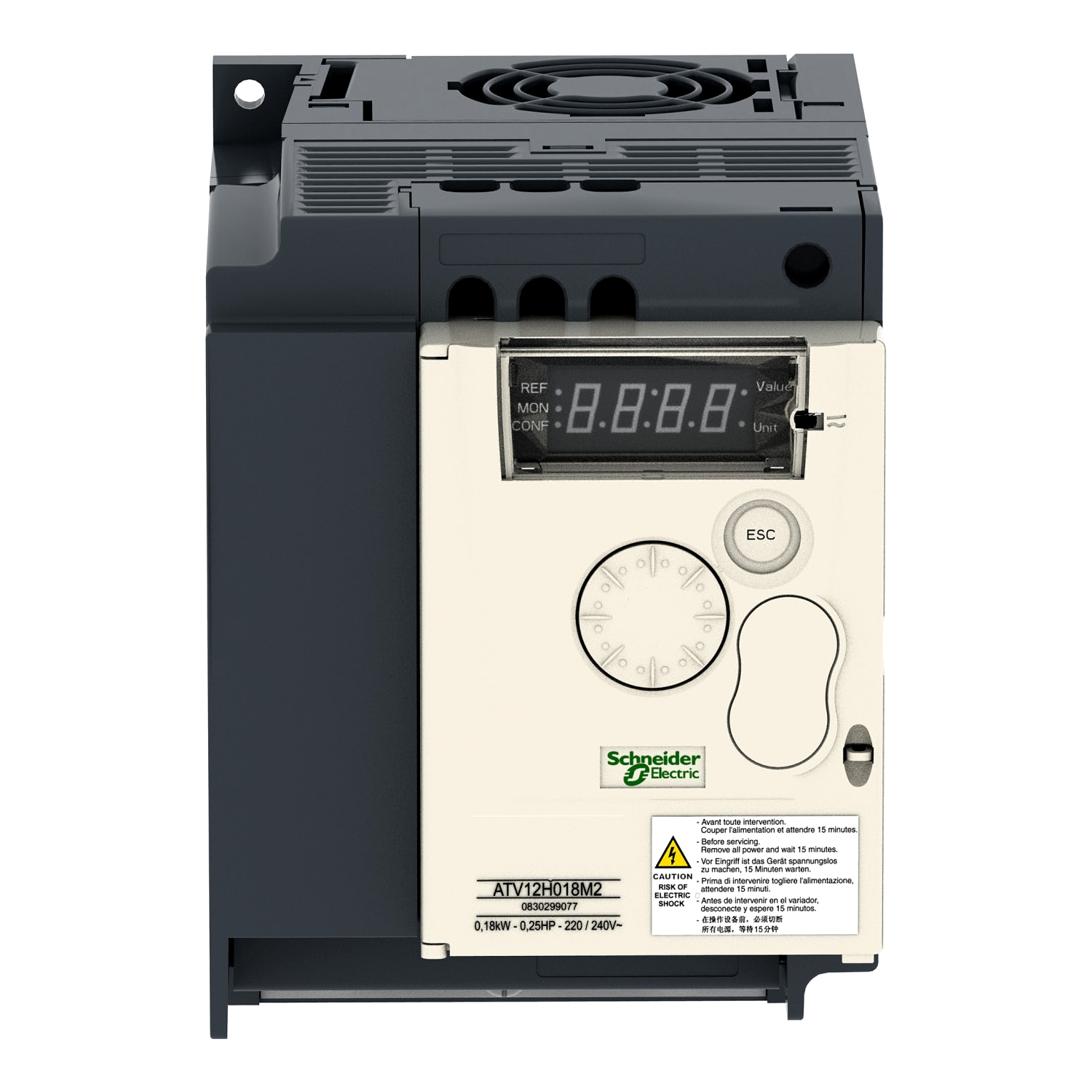

ATV12HU15M2 Variable Speed Drive
Brand: Schneider Electric
Category: Altivar 12 Variable Frequency Drives VFD
Description: Variable speed drive, Altivar 12, 1.5 kW, 2 hp, 200 to 240 V, 1 phase, with heat sink.
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills.
It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Specifications
Range of Product: Altivar 12
Product Type: Variable speed drive
Application: Simple machine
Mounting Mode: Cabinet mount
Communication Port Protocol: Modbus
Supply Frequency: 50/60 Hz +/- 5 %
Rated Supply Voltage: 200 to 240 V – 15 to 10 %
Nominal Output Current: 7.5 A
Motor Power: 1.5 kW
Maximum Horsepower Rating: 2 hp
EMC Filter: Integrated
IP Degree of Protection: IP20
Main Inputs/Outputs: 4 discrete inputs, 2 discrete outputs, 1 analogue input, 1 analogue output, 1 relay output
Physical Interface: 2-wire RS 485
Connector Type: 1 RJ45
Continuous Output Current: 7.5 A at 4 kHz
Speed Drive Output Frequency: 0.5 to 400 Hz
Speed Range: 1 to 20
Transmission Rate: 9.6, 19.2, 38.4 kbit/s
Data Format: 8 bits configurable odd, even or no parity
Protection Type: Line supply overvoltage and undervoltage, overcurrent between output phases and earth, overheating protection, short-circuit between motor phases, input phase loss detection, thermal motor protection via I²t calculation
Dimensions (WxHxD): 10.5 cm x 14.2 cm x 15.62 cm
Net Weight: 1.4 kg
Operating Altitude: > 1000 to 2000 m with 1% derating per 100 m, up to 1000 m without derating
Operating Position: Vertical +/- 10°
Certifications: NOM, CSA, C-tick, UL, GOST, RCM, KC
Marking: CE
Standards: UL 508C, UL 618000-5-1, IEC 61800-5-1, IEC 61800-3
Assembly Style: With heat sink
Environmental Class: Class 3C3 and 3S2 IEC 60721-3-3
Shock Resistance: 15 gn 11 ms IEC 60068-2-27
Vibration Resistance: 1 gn 13–200 Hz IEC 60068-2-6
Noise Level: 45 dB
Ambient Temperature for Operation: -10 to 50 °C without derating, 50 to 60 °C with 2.2% derating per °C
Packaging: Made with minimum 70% recycled cardboard. No single-use plastic used. This product helps save and avoid emissions during use phase.
Safety Warning: This product can expose you to chemicals including lead and lead compounds, known to cause cancer and reproductive harm.
Warranty: 18 months
Customs Tariff Code: 8504408390
