Description
Product Name

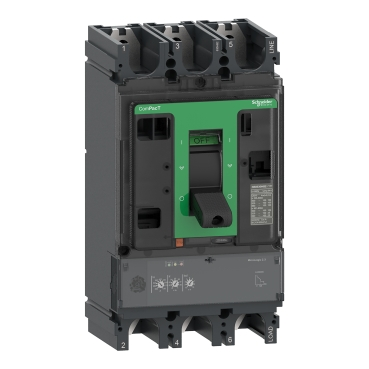

Circuit breaker ComPacT NSX400F, 36kA at 415VAC, MicroLogic 2.3 trip unit 400A, 3 poles 3d
General Information
This ComPacT NSX400F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36 kA rms at 415VAC 50/60Hz. The operational voltage is 690 V AC 50/60 Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 400 A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (14 cm x 25.5 cm x 11 cm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400F is part of Schneider Electric EcoStruxure Power architecture.
Technical Specifications
Range: ComPacT
Device short name: NSX400F
Product type: Circuit breaker
Device application: Distribution
Poles description: 3P
Protected poles description: 3D
Rated current: 400 A at 40 °C
Rated operational voltage: 690 V AC 50/60 Hz
Network type: AC
Network frequency: 50/60 Hz
Suitability for isolation: Yes conforming to EN/IEC 60947-2
Utilisation category: Category A
Breaking capacity:
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
85 kA Icu at 240 V AC 50/60 Hz conforming to UL 60947-4-1
35 kA Icu at 480 V AC 50/60 Hz conforming to UL 60947-4-1
20 kA Icu at 600 V AC 50/60 Hz conforming to UL 60947-4-1
Breaking capacity code: F 36 kA 415 V AC
Trip unit name: MicroLogic 2.3
Trip unit technology: Electronic
Trip unit protection functions: LSoI
Control type: Toggle
Circuit breaker mounting mode: Fixed
Main Ratings
Rated insulation voltage Ui: 800 V AC 50/60 Hz
Rated impulse withstand voltage Uimp: 8 kV
Rated service breaking capacity Ics:
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability: 15000 cycles
Electrical durability:
12000 cycles at 440 V In/2
6000 cycles at 440 V In
6000 cycles at 690 V In/2
3000 cycles at 690 V In
Power dissipation per pole: 19.2 W
Mounting support: Backplate
Mounting position: Horizontal and vertical; Flat on the back
Upside connection: Front
Downside connection: Front
Connection pitch: 4.5 cm
Protection types: L (for overload protection long time); So (for short time short-circuit protection with fixed delay); I (for instantaneous short-circuit protection)
Trip unit rating: 400 A at 40 °C
Long-time pick-up adjustment: Adjustable with 9 settings (160 to 400 A)
Long-time protection delay adjustment: Fixed; ranges 400 s at 1.5 x Ir, 16 s at 6 x Ir, 11 s at 7.2 x Ir
Thermal memory: 20 minutes before and after tripping
Short-time protection pick-up adjustment: Adjustable with 9 settings (1.5 to 10 times Ir)
Short-time protection delay adjustment: Fixed
Instantaneous protection pick-up adjustment: Fixed at 4800 A
Earth-leakage protection: Without
Zone selective interlocking (ZSI): Without
Number of slots: 6
Local signalling: Flashing LED green for ready to operate; LED red at 105% Ir for overload; LED orange at 90% Ir for overload
Dimensions and Weight
Width: 14 cm
Height: 25.5 cm
Depth: 11 cm
Net weight: 6.05 kg
Standards and Environmental
Standards: EN/IEC 60947-2
Overvoltage category: III
Electrical shock protection class: Class II on front face
Pollution degree: 3 conforming to IEC 60664-1
IP degree of protection: IP40 conforming to IEC 60529
IK degree of protection: IK07 conforming to IEC 62262
Ambient air temperature for operation: -25 to 70 °C
Ambient air temperature for storage: -50 to 85 °C
Relative humidity: 0 to 95 %
Operating altitude: 0 to 2000 m without derating; 2000 to 5000 m with derating
Packaging
Package 1: height 15 cm; width 15.5 cm; length 29.2 cm; weight 5.569 kg
Package 2: height 30 cm; width 40 cm; length 60 cm; weight 11.838 kg
Compliance
Customs Tariff Code: 85362010
