Description

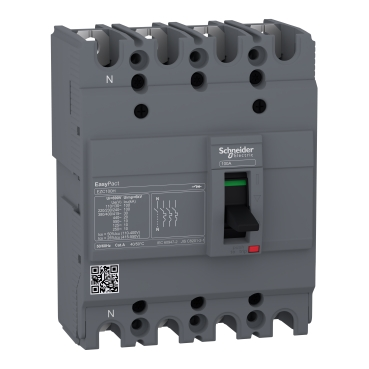

EZC100H4025 Circuit Breaker EasyPact EZC100H – TMD – 25 A – 4 poles 3d
This is a 25A circuit breaker for EasyPact EZC100H. It operates below rated operational voltage(Ue) 550 VAC at 50/60Hz and 250 VDC. It has a 4 poles frame with detection on 3 poles, equipped with a TM-D thermal-magnetic trip unit for protection. It complies with standard IEC60947 and holds CE certification along with certifications from independent labs (KEMA, ASEFA, TUV) and third-party (Tilva). The device is certified for pollution degree 3 environments as defined by IEC60947 and withstands extreme atmospheric conditions.
The device can be mounted vertically or horizontally in metal enclosures, and equipped with padlocking to ensure safety. The series includes slots for indication or voltage release auxiliaries positioned behind the front cover of the circuit breaker.
Technical specifications:
Range: EasyPact.
Type: Circuit breaker.
Short name: Easypact EZC100H.
Application: Distribution.
Poles: 4P.
Protected poles: 3t.
Network type: DC and AC.
Frequency: 50/60 Hz.
Rated current at 40°C: 25 A.
Rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2.
Rated impulse withstand voltage: 6 kV.
Operational voltage: 550 V AC 50/60 Hz, 250 V DC.
Breaking capacity code: H.
Breaking capacity includes:
10 kA Icu at 125 V DC 1P;
10 kA Icu at 250 V DC 2P;
10 kA Icu at 550 V AC 50/60 Hz;
100 kA Icu at 110-130 V AC 50/60 Hz;
20 kA Icu at 440 V AC 50/60 Hz;
50 kA Icu at 220-240 V AC 50/60 Hz;
30 kA Icu at 380-415 V AC 50/60 Hz.
Rated service breaking capacity includes:
5 kA at 125 V DC;
5 kA at 250 V DC;
5 kA at 440 V AC 50/60 Hz;
2.5 kA at 550 V AC 50/60 Hz;
15 kA at 380-400 V AC 50/60 Hz;
25 kA at 220-240 V AC 50/60 Hz;
50 kA at 110-130 V AC 50/60 Hz;
7.5 kA at 415 V AC 50/60 Hz.
Suitable for isolation (IEC 60947-2). Utilisation category: Category A.
Trip unit name: TM-D.
Technology: Thermal-magnetic.
Trip unit rating: 25 A at 50 °C.
Protection: Short-circuit and overload.
Pollution degree: 3.
Control: Toggle.
Mounting: Fixed on backplate.
Connections: Front (upside and downside).
Mechanical durability: 13000 cycles.
Connection pitch: 25 mm.
Local signalling: Positive contact indication.
Neutral protection: Without.
Earth-leakage protection: Without.
Dimensions (HxWxD): 13 cm x 10 cm x 6 cm.
Standards: JIS C8201-2-2, EN/IEC 60947-1, EN/IEC 60947-2, GB/T 14048.2.
IP protection: IP20.
IK protection: IK07.
Operating temperature: -25 to 70 °C.
Storage temperature: -35 to 85 °C.
Packaging dimensions and weights:
Package 1 (PCE): 9 cm x 11 cm x 14 cm, 1.071 kg.
Package 2 (S02): 15 cm x 30 cm x 40 cm, 10.094 kg.
Package 3 (S03): 30 cm x 30 cm x 40 cm, 19.765 kg.
Warranty: 18 months.
Customs Tariff Code: 85362010.
