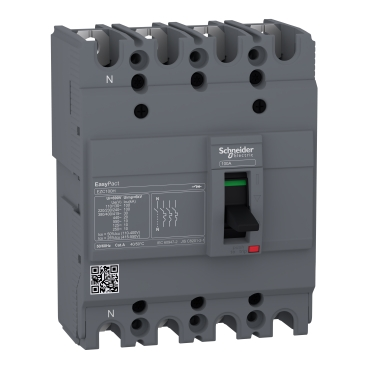

EZC100H4040 Circuit Breaker EasyPact EZC100H
This is a 40A circuit breaker for EasyPact EZC100H series designed for distribution applications. It works below rated operational voltage (Ue) of 550 V AC 50/60 Hz and 250 V DC. The product has a 4 poles frame with detection on 3 poles and is equipped with TM-D thermal-magnetic trip unit that provides overload and short-circuit protection.
Compliant with IEC 60947 standards and certified by CE, KEMA, ASEFA, TUV, and third-party Tilva, it is suitable for operation in pollution degree 3 environment and can withstand extreme atmospheric conditions. It can be mounted vertically or horizontally in a metal enclosure and includes padlocking for enhanced safety.
The device includes slots for indication or voltage release auxiliaries positioned behind the front cover.
Specifications
Range of product: EasyPact
Rated current: 40 A at 40 °C
Rated insulation voltage (Ui): 690 V AC
Rated impulse withstand voltage (Uimp): 6 kV
Rated operational voltage (Ue): 550 V AC / 250 V DC
Breaking capacity code: H
Breaking capacity (Icu): 10 kA at 125 V DC 1P, 10 kA at 250 V DC 2P,10 kA at 550 V AC, 100 kA at 110-130 V AC, 20 kA at 440 V AC, 50 kA at 220-240 V AC, 30 kA at 380-415 V AC
Rated service breaking capacity (Ics): ranges from 2.5 to 50 kA depending on voltage
Trip unit rating: 40 A at 50 °C thermal-magnetic
Pollution degree: 3
Control type: Toggle
Mounting mode: Fixed backplate
Connection pitch: 2.5 cm
Dimensions (HxWxD): 13 cm x 10 cm x 6 cm
Mechanical durability: 13000 cycles
Degree of protection: IP20, IK07
Operating temperature range: -25 to 70 °C
Storage temperature range: -35 to 85 °C
Environmental and Packaging
Packaging is made with minimum 70% recycled cardboard (50% in US). Plastic usage is minimized in compliance with regulations. The product complies with EU RoHS directive and is not included in a global take-back program. The product includes WEEE label indicating disposal requirements in EU.
Package Dimensions and Weight
Package types and dimensions in cm and kg:
PCE (1 unit): 9.5 x 13.5 x 11.0 cm, weight 1.058 kg
S02 (9 units): 15 x 30 x 40 cm, weight 9.571 kg
P12 (288 units): 75 x 120 x 80 cm, weight 319 kg
Customs Tariff Code
85362010
