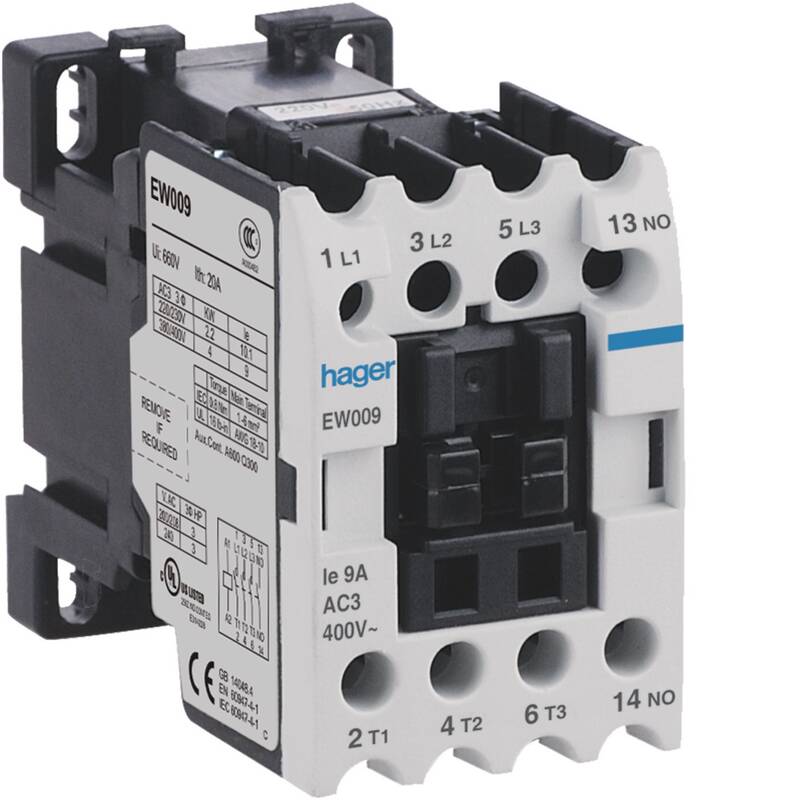

Contactor 9A-AC3 / coil 230V 50 Hz • EW009_J

Description

Industrial contactor 9A-AC3 / coil 230V AC 50 Hz EW009_J

EAN: 3250612277261

Packaging: 1 Piece

Technical properties

Archi­tec­ture

Type of pole: 3P

Voltage

Rated oper­a­tional voltage Ue: 380 – 380 V

Command voltage AC: 230 – 230 V

Command voltage DC: 0 – 0 V

Rated insu­la­tion voltage Ui: 660 V

Elec­tric current

Rated oper­a­tional current Ie under 3P 220 – 230 V AC3 according to IEC 60947 – 4: 10.10 A

Accept­able current rating AC3: 9 A

Rated oper­a­tional current Ie under 3P 380 – 400 V AC AC3 according to IEC 60947 – 4: 9 A

Dimen­sions

Depth: 82 mm

Frequency

Frequency: 50 – 50 Hz

Power

Rated oper­a­tional power for 3P under 220 – 230 V AC AC3 according to IEC 60947 – 4: 2.20 kW

Endur­ance

Number of mech­an­ical oper­a­tions: 5000000

Elec­tric endur­ance in number of cycles: 500000

Connectivity

Type of connec­tion: Screw terminal

Connec­tion

Cross-sec­tion of input and output with screws, for flex­ible conductors: 1 – 6 mm²

Cross-sec­tion of input and output with screws, for massive conductors: 1 – 6 mm²

Equip­ment

Number of auxil­iary contacts as normally open contact: 1

Number of auxil­iary contacts as normally closed contact: 0

Number of NO contacts: 3

Number of NC contacts: 0

Use condi­tions

Oper­ating temper­ature: -20 – 55 °C

Stor­age/trans­port temper­ature: -40 – 80 °C

Environmental value

RoHS conform: Yes
