Description
Product Name

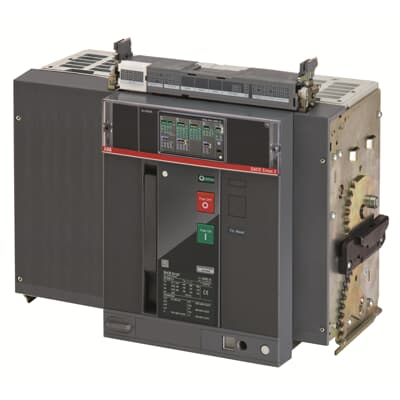

E4.2S 4000 Ekip Dip LI 4p WMP
Product ID and Classification
Product ID: 1SDA073181R1
EAN: 8015644770310
Customs Tariff Code: 85362090
Description
Catalog Description: E4.2S 4000 Ekip Dip LI 4p WMP
MOVING PART FOR C.BREAKER SACE EMAX2 E4.2S 4000 FOUR-POLE WITH SOLID-STATE RELEASE IN AC EKIP/DIP-LI R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Product Details
Main Type: SACE Emax 2
Type: Air Circuit Breaker
Version: W
Sub-type: E4.2
Release: Ekip Dip LI (Type EL)
Suitable for IT Networks: Yes, 690V
Standards: IEC
Electrical Ratings
Connecting Capacity: 4000 mm²
Current Type: AC
Rated Current (In): 4000 A
Rated Operational Voltage: 690 V AC
Rated Insulation Voltage (Ui): AC 1000 V
Rated Impulse Withstand Voltage (Uimp): acc. to IEC 60947-2 12 kV
Rated Service Short-Circuit Breaking Capacity (Ics): 85 kA at 220-440 V AC, 66 kA at 500-690 V AC
Rated Ultimate Short-Circuit Breaking Capacity (Icu): 85 kA at 400-440 V AC, 66 kA at 500-690 V AC
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics): 100 %
Rated Short-time Withstand Current Low Voltage (Icw): 66 kA for 1 s and 3 s
Rated Uninterrupted Current (Iu): 4000 A
Durability and Performance
Electrical Durability: Ue =< 440 V 5000 cycles; Ue = 500 … 690 V 4000 cycles; 20 cycles per hour
Mechanical Durability: 15000 cycles; 60 cycles per hour
Neutral Pole Current (% Iu): 100 %
Number of Poles: 4
Power Loss: 900 W
Short-Circuit Performance Level: S
Dimensions and Weight
Width: 55.1 cm
Height: 42.5 cm
Depth/Length: 38.3 cm
Net Weight: 74 kg
Packaging
Package Level 1 Units: box 1 piece
Width: 51.5 cm
Height: 61 cm
Depth/Length: 78.5 cm
Gross Weight: 81 kg
EAN: 8015644770310
