Description

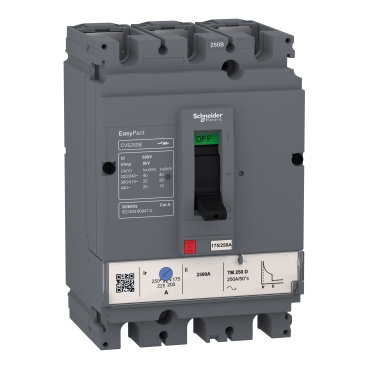

EasyPact CVS CVS160B Circuit Breaker
Range Name: EasyPact CVS100 to 250
Device Short Name: CVS160B
Product Type: Circuit breaker for distribution
Poles Description: 3 poles
Protected Poles Description: 3 protected poles
Earth Leakage Protection: Without
Rated Current: 125 A at 50 °C
Network Type: AC, Utilisation category A
Breaking Capacity (Icu): 40 kA at 220/240 V AC; 25 kA at 380/415 V AC, 50/60 Hz according to IEC 60947-2
Trip Unit Name and Technology: TM-D, Thermal-magnetic
Trip Unit Rating: 125 A at 40 °C
Protection Types: Short-circuit protection (magnetic) and overload protection (thermal)
Rated Impulse Withstand Voltage (Uimp): 8 kV as per EN/IEC 60947-2
Network Frequency: 50/60 Hz
Breaking Capacity Codes: Code B
Rated Service Breaking Capacity (Ics): 15 kA at 440 V AC, 25 kA at 380/415 V AC, 40 kA at 220/240 V AC, all at 50/60 Hz as per IEC 60947-2
Mechanical Durability: 25000 cycles
Electrical Durability: 12000 cycles at 415 V In as per IEC 60947-2
Control Type: Toggle
Long Time Pick-up Adjustment (Ir): Adjustable from 0.7 to 1 x In
Long Time Delay Adjustment: Fixed
Short Time Delay Adjustment: Fixed
Instantaneous Pick-up Adjustment (Ii): Fixed, range 1250 A
Contact Position Indicator: Yes
Mounting Support and Mode: Backplate, Fixed
Connections: Upside and downside front connections, connection pitch 3.5 cm
Dimensions: Width 10.5 cm, Depth 8.6 cm, Height 16.1 cm
Net Weight: 1.5 kg
Standards: EN 60947-2, IEC 60947-2
Product Certifications: IEC, GOST
Electrical Shock Protection Class: Class II
Ambient Operating Temperature: -25 to 70 °C
Ambient Storage Temperature: -50 to 85 °C
Package: 1 piece per package; package weight 1.773 kg
Warranty: 18 months
Customs Tariff Code: 85362010
