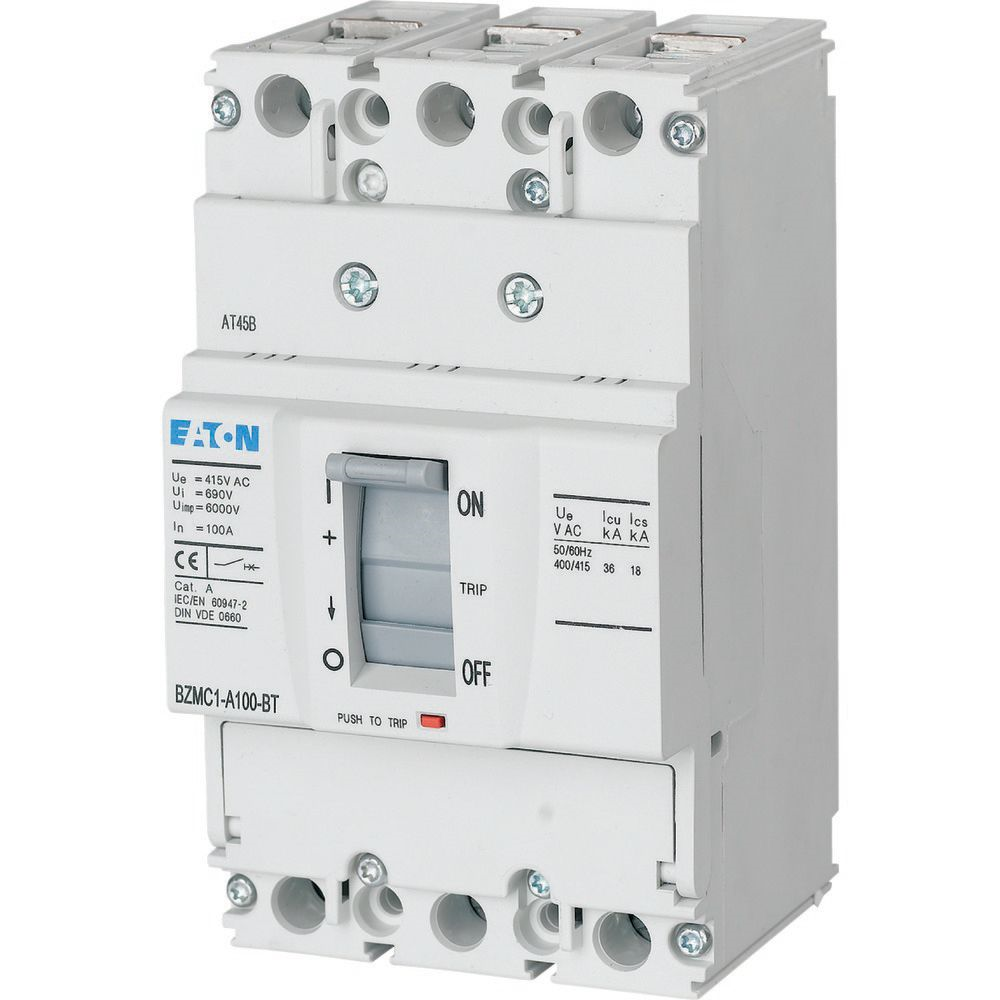

Eaton Moeller series BZM – Molded case circuit breaker
Model Code: BZME1-A20-BT
SKU: 109737
Description: Eaton Moeller series Circuit breaker BZME1, Three-pole, 20 A, 415 V, Box terminal
Dimensions (cm): Length/Depth 13.02, Height 8.6, Width 7.5
Weight (kg): 0.83
Compliance: RoHS conform
Number of poles: Three-pole
Amperage Rating: 20 A
Voltage rating: 415 V – 415 V
Instantaneous current setting (Ii): min 256 A, max 384 A
Overload current setting (Ir): min 0 A, max 0 A
Short delay current setting (Isd): min 0 A, max 0 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz: 18 kA
Electrical connection type of main circuit: Frame clamp
Type: Circuit breaker
Mounting Method: DIN rail (top hat rail) mounting optional; Built-in device fixed built-in technique
Degree of protection: IP20
Number of auxiliary contacts (change-over, normally closed, normally open): 0, 0, 0
Position of connection for main current circuit: Front side
Handle type: Rocker lever
Rated operational current for specified heat dissipation (In): 20 A
Equipment heat dissipation, current-dependent: 4.7 W
Design verification as per IEC/EN 61439: Corrosion resistance, thermal stability of enclosures, resistance of insulating materials to normal and abnormal heat/fire by internal electrical effects, resistance to ultra-violet (UV) radiation, inscriptions, clearances and creepage distances all meet the product standard’s requirements. Lifting, mechanical impact, degree of protection of assemblies, protection against electric shock, incorporation of switching devices and components do not apply since the entire switchgear needs to be evaluated. Internal electrical circuits, connections for external conductors, power-frequency electric strength, impulse withstand voltage, testing of enclosures made of insulating material, short-circuit rating, and electromagnetic compatibility are the panel builder’s responsibility. The device meets mechanical function requirements provided the information in the instruction leaflet (IL) is observed. Temperature rise is the panel builder’s responsibility, with heat dissipation data provided by Eaton.
Features: Protection unit
Customs Tariff Code: 85362010
