Eaton Moeller series BZM - Molded case circuit breaker

Eaton Moeller series BZM – Molded case circuit breaker

$50.20

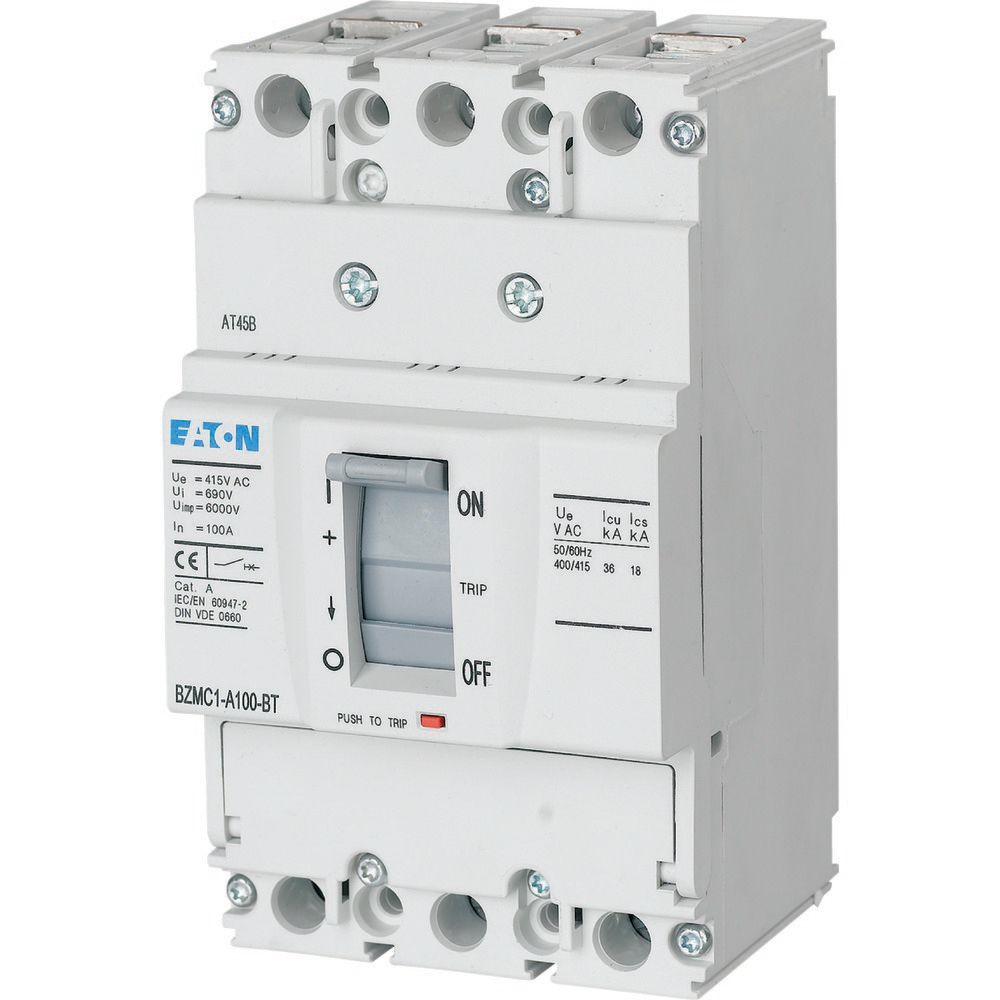

Eaton Moeller series Circuit breaker BZME1, Three-pole, 80 A, 415 V, Screw connection

1 in stock

SKU: BZME1-1-A80-BT Category:

Description

Product Name

Eaton Moeller series BZM – Molded case circuit breaker

Model Code and Catalog Number

BZME1-A80, Catalog Number: 109728

Dimensions and Weight

Length/Depth: 13.02 cm, Height: 8.6 cm, Width: 7.5 cm, Weight: 0.83 kg

Electrical Specifications

Voltage Rating: 415 V, Amperage Rating: 80 A, Instantaneous Current Setting (Ii) Min: 800 A, Max: 1200 A, Overload Current Setting (Ir) Min: 0 A, Max: 0 A, Short Delay Current Setting (Isd) Min: 0 A, Max: 0 A, Rated Short-circuit Breaking Capacity Ics: 18 kA

Technical Details

Electrical Connection Type: Screw connection, Type: Circuit breaker, Mounting Method: DIN rail (top hat rail) mounting optional Built-in device fixed built-in technique, Degree of Protection: IP20

Contacts and Handle

Number of Auxiliary Contacts (change-over): 0, Normally Closed: 0, Normally Open: 0, Position of connection for main current circuit: Front side, Handle Type: Rocker lever

Heat Dissipation

Rated Operational Current for Specified Heat Dissipation: 80 A, Equipment Heat Dissipation (current-dependent): 22.1 W

Design Verification as per IEC/EN 61439

Corrosion resistance: Meets the product standard’s requirements. Verification of thermal stability, resistance of insulating materials to normal heat, resistance to abnormal heat/fire internal electric effects, resistance to ultra-violet (UV) radiation, and inscriptions all meet the product standard’s requirements. Lifting, mechanical impact, degree of protection of assemblies, protection against electric shock, incorporation of switching devices and components do not apply as entire switchgear evaluation is required. Internal electrical circuits and connections, connections for external conductors, power-frequency electric strength, impulse withstand voltage, and testing of insulating enclosures are panel builder’s responsibilities. Temperature rise, short-circuit rating, and electromagnetic compatibility are panel builder’s responsibilities with necessary specifications adherence. Mechanical function meets requirements, observing instruction leaflet (IL).

Features

Protection unit

Compliance

RoHS conform

Customs Tariff Code

85362030

Post Views: 46

Additional information

Weight0.83 kg
Dimensions13.02 × 7.5 × 8.6 cm
SKU

109728

Model Code

BZME1-A80

Compliances

RoHS conform

Number of poles

Three-pole

Amperage Rating A

80

Voltage rating V

415 V – 415 V

Instantaneous current setting Ii min A

800

Instantaneous current setting Ii max A

1200

Overload current setting Ir min A

0

Overload current setting Ir max A

0

Short delay current setting Isd min A

0

Short delay current setting Isd max A

0

Rated short circuit breaking capacity Ics kA

18

Electrical connection type of main circuit

Screw connection

Type

Circuit breaker

Mounting Method

DIN rail (top hat rail) mounting optional Built-in device fixed built-in technique

Degree of protection

IP20

Number of auxiliary contacts change over

0

Number of auxiliary contacts normally closed

0

Number of auxiliary contacts normally open

0

Position of connection for main current circuit

Front side

Handle type

Rocker lever

Rated operational current for specified heat dissipation A

80

Equipment heat dissipation current dependent W

22.1

Corrosion resistance

Meets the product standard's requirements.

Verification of thermal stability of enclosures

Meets the product standard's requirements.

Verification of resistance of insulating materials to normal heat

Meets the product standard's requirements.

Resistance of insulating material to abnormal heat fire

Meets the product standard's requirements.

Resistance to ultra violet UV radiation

Meets the product standard's requirements.

Lifting

Does not apply, since the entire switchgear needs to be evaluated.

Mechanical impact

Does not apply, since the entire switchgear needs to be evaluated.

Inscriptions

Meets the product standard's requirements.

Degree of protection of assemblies

Does not apply, since the entire switchgear needs to be evaluated.

Protection against electric shock

Does not apply, since the entire switchgear needs to be evaluated.

Incorporation of switching devices and components

Does not apply, since the entire switchgear needs to be evaluated.

Internal electrical circuits and connections

Is the panel builder's responsibility.

Connections for external conductors

Is the panel builder's responsibility.

Power frequency electric strength

Is the panel builder's responsibility.

Impulse withstand voltage

Is the panel builder's responsibility.

Testing of enclosures made of insulating material

Is the panel builder's responsibility.

Temperature rise

The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.

Short circuit rating

Is the panel builder's responsibility. The specifications for the switchgear must be observed.

Electromagnetic compatibility

Is the panel builder's responsibility. The specifications for the switchgear must be observed.

Mechanical function

The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Features

Protection unit

Customs Tariff Code

85362030
