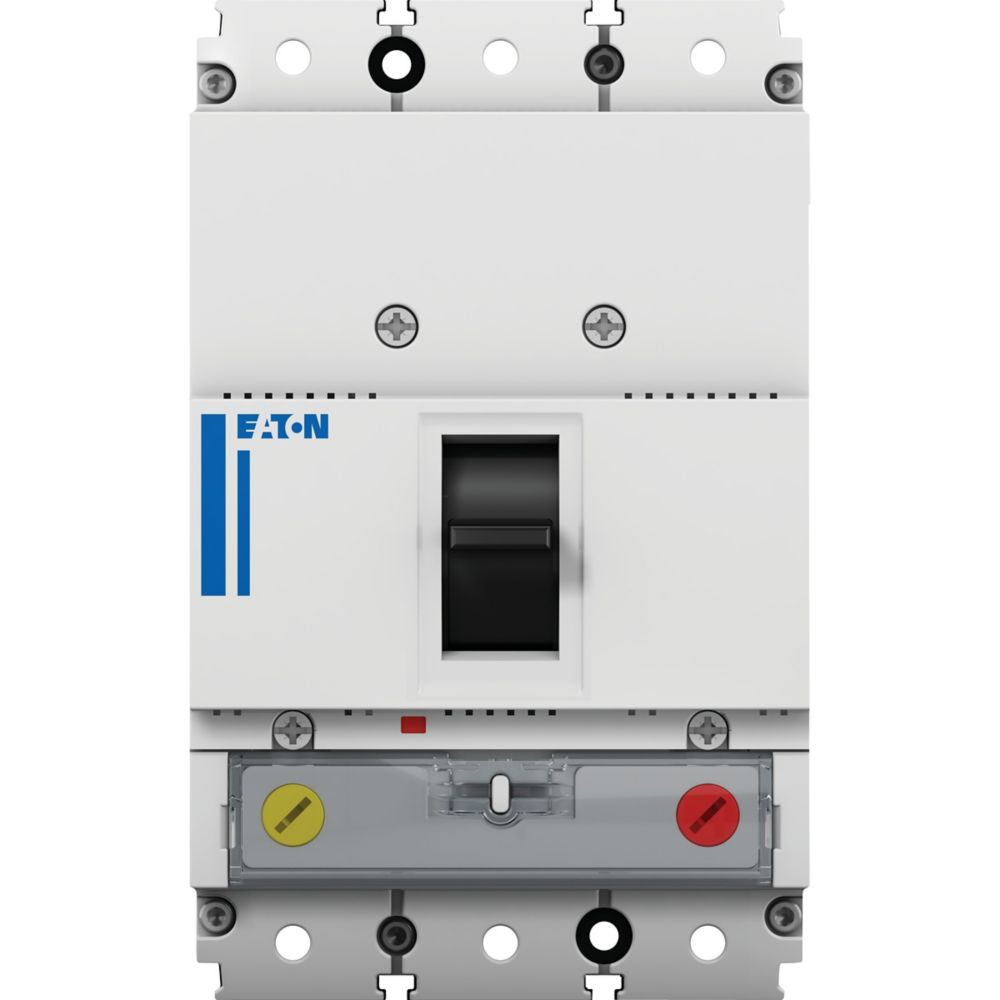

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number: PDE13F0125VAAJ
Model Code: PDE13F0125VAAJ
EAN: 9010238098190
Dimensions (L x H x W): 14.5 cm x 8.7 cm x 8.9 cm
Weight: 1.046 kg
Compliances: RoHS conform
Certifications: IEC IEC/EN 60947
Type: Molded case circuit breaker
Frame Type: PDE1
Amperage Rating: 125 A
Number of Poles: Three-pole
Electrical Ratings: Voltage rating 220 V – 440 V, DC voltage rating 250 V, Max rated operation voltage 440 V AC, Rated insulation voltage 800 V AC, Rated impulse withstand voltage 6000 V (auxiliary and main contacts), Rated current 125 A, Instantaneous current setting 1250 A, Overload current setting 100 A to 125 A
Short-circuit breaking capacity: 35000 A at 230 V 50/60 Hz, 25000 A at 400/415 V 50/60 Hz, 15000 A at 440 V 50/60 Hz
Electrical connection: Frame clamp
Overvoltage category: III
Utilization category: A
Pollution degree: 3
Mechanical Data: Type circuit breaker, Thermomagnetic release system, Mounting DIN rail (top hat rail) optional, fixed housing, Degree of protection IP2X
Auxiliary contacts: 0 change-over, 0 normally closed, 0 normally open, Max operations per hour 120, Handle type rocker lever, Main circuit connection front side, Incoming supply vertical and 90° in all directions, Standard terminals box terminal, Mechanical lifespan 25000 operations
Operating Temperatures: Ambient min -20 °C, Ambient max 70 °C, Storage min -20 °C, Storage max 70 °C
Design Verification IEC/EN 61439: Meets corrosion resistance, thermal stability, insulating materials resistance to normal and abnormal heat/fire, UV resistance, inscriptions, clearances, creepage distances requirements; lifting, mechanical impact, protection against electric shock, incorporation of switching devices/components, degree of protection of assemblies do not apply or are panel builder’s responsibility; temperature rise calculation is panel builder’s responsibility with Eaton providing heat dissipation data.
Features: Protection unit, Motor drive optional
Functions: System and cable protection
Special Features: Thermally and magnetically adjustable (calibrated at 50 °C)
Customs Tariff Code: 85362010
