Description
Product Name

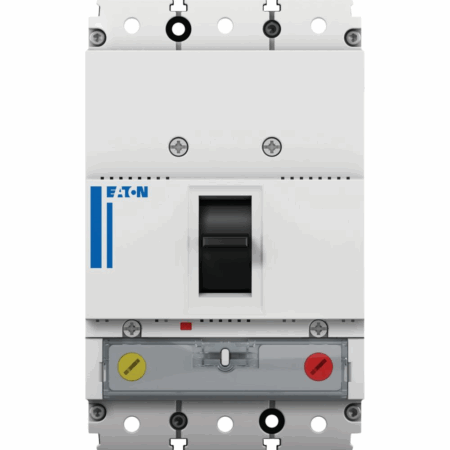

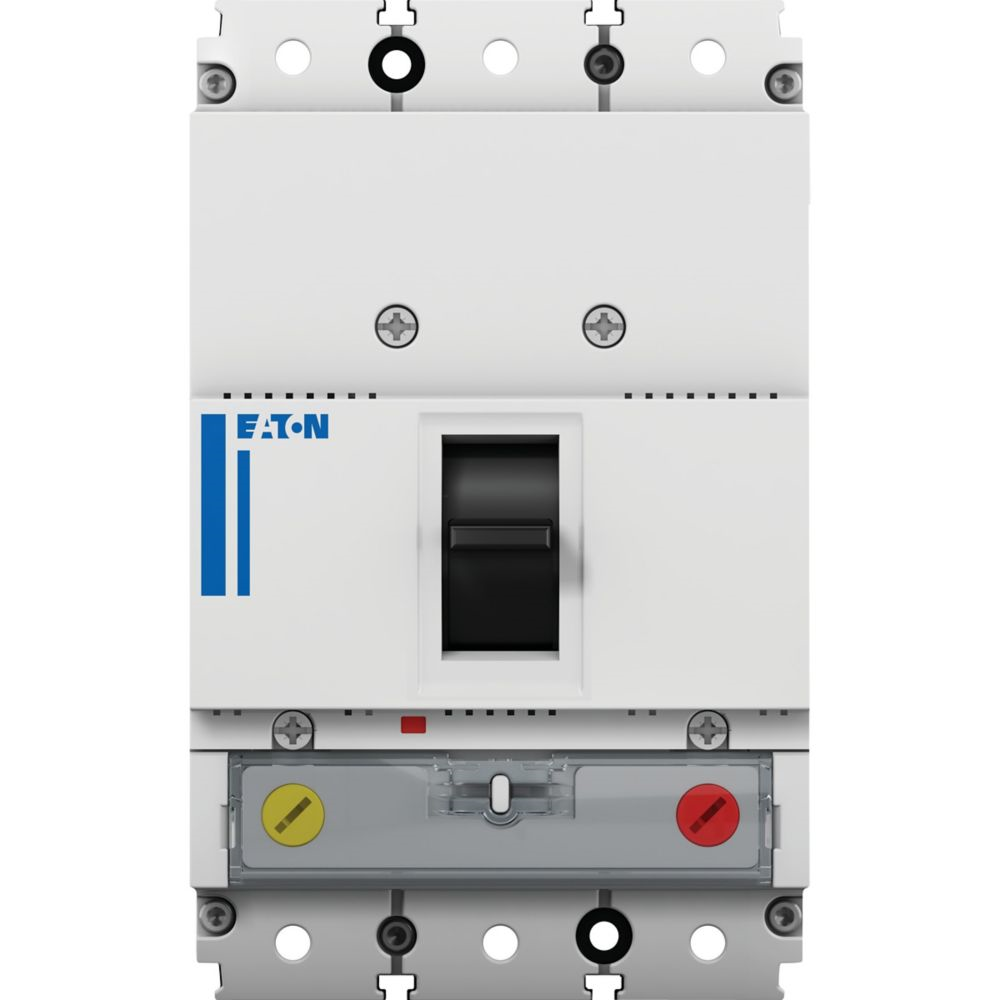

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number
PDE13G0016VAAJ
EAN
9010238098213
Dimensions
Length/Depth: 14.5 cm, Height: 8.7 cm, Width: 8.9 cm
Weight
1.046 kg
Certifications & Compliance
Compliances: RoHS conform, Certifications: IEC IEC/EN 60947
Specifications
Type: Circuit breaker, Circuit breaker frame type: PDE1, Number of poles: Three-pole, Amperage Rating: 16 A, Release system: Thermomagnetic release, Features: Protection unit, Motor drive optional, Special features: Thermally and magnetically adjustable (calibrated at 50 °C)
Electrical Data
Voltage rating: 220 V – 440 V, Voltage rating (DC): 250 V, Rated impulse withstand voltage (Uimp) at auxiliary contacts: 6000 V, Rated impulse withstand voltage (Uimp) at main contacts: 6000 V, Rated current (Iu): 16 A, Instantaneous current setting (Ii) min: 16 A, Instantaneous current setting (Ii) max: 350 A, Overload current setting (Ir) min: 12.8 A, Overload current setting (Ir) max: 16 A, Rated short-circuit breaking capacity Ics at 230 V 50/60 Hz: 50 kA, at 400/415 V 50/60 Hz: 36 kA, at 440 V 50/60 Hz: 22.5 kA, Electrical connection type of main circuit: Frame clamp, Number of operations per hour max: 120, Handle type: Rocker lever, Utilization category: A, Overvoltage category: III, Pollution degree: 3, Direction of incoming supply: Vertical and 90° in all directions
Mechanical Data
Mounting Method: Complete device in housing, DIN rail (top hat rail) mounting optional, Fixed, Degree of protection: IP2X, Number of auxiliary contacts (change-over contacts): 0, normally closed contacts: 0, normally open contacts: 0, Position of connection for main current circuit: Front side, Lifespan mechanical: 25000 operations
Terminals
Standard terminals: Box terminal
Operating Conditions
Ambient operating temperature min: -20 °C, max: 70 °C, Ambient storage temperature min: -20 °C, max: 70 °C
Functions
System and cable protection
Customs Tariff Code
85362000
