Product Name: Eaton Moeller series Power Defense molded case circuit-breaker
Description: Eaton Moeller series Power Defense – Molded Case Circuit Breaker. Circuit breaker, 50A, 36kA, 3p, box terminal
General Specifications
Catalog Number: PDE13G0050TAAJ
EAN: 9010238097384
Model Code: PDE13G0050TAAJ
Dimensions (L×H×W): 14.5 cm × 8.7 cm × 8.9 cm
Weight: 1.046 kg
Certifications: IEC IEC/EN 60947
Compliances: RoHS conform
Electrical Specifications
Circuit Breaker Frame Type: PDE1
Amperage Rating: 50 A
Number of Poles: Three-pole
Voltage Rating: 220 V – 440 V AC
Voltage Rating (DC): 250 V
Max Rated Operation Voltage Ue AC: 440 V
Rated Insulation Voltage Ui: 800 V AC
Rated Impulse Withstand Voltage (Uimp) at Auxiliary Contacts: 6000 V
Rated Impulse Withstand Voltage (Uimp) at Main Contacts: 6000 V
Rated Current (Iu): 50 A
Instantaneous Current Setting (Ii) Min and Max: 500 A
Overload Current Setting (Ir) Min and Max: 40 A – 50 A
Rated Short-Circuit Breaking Capacity Ics at 230 V, 50/60 Hz: 50 kA
Rated Short-Circuit Breaking Capacity Ics at 400/415 V, 50/60 Hz: 36 kA
Rated Short-Circuit Breaking Capacity Ics at 440 V, 50/60 Hz: 22.5 kA
Electrical Connection Type of Main Circuit: Frame clamp
Overvoltage Category: III
Utilization Category: A
Pollution Degree: 3
Mechanical Specifications
Type: Circuit breaker
Release System: Thermomagnetic release
Mounting Method: DIN rail (top hat rail) mounting optional Complete device in housing Fixed
Degree of Protection: IP2X
Number of Auxiliary Contacts (change-over, normally closed, normally open): 0
Number of Operations per Hour (max): 120
Handle Type: Rocker lever
Position of Connection for Main Current Circuit: Front side
Direction of Incoming Supply: Vertical and 90° in all directions
Standard Terminals: Box terminal
Mechanical Lifespan: 25000 operations
Environmental Conditions
Ambient Operating Temperature: -20 °C to 70 °C
Ambient Storage Temperature: -20 °C to 70 °C
Features and Functions
Features: Protection unit Motor drive optional
Functions: System and cable protection
Special Features: Thermally and magnetically adjustable (calibrated at 40 °C)
Additional Information
Customs Tariff Code: 8536201000

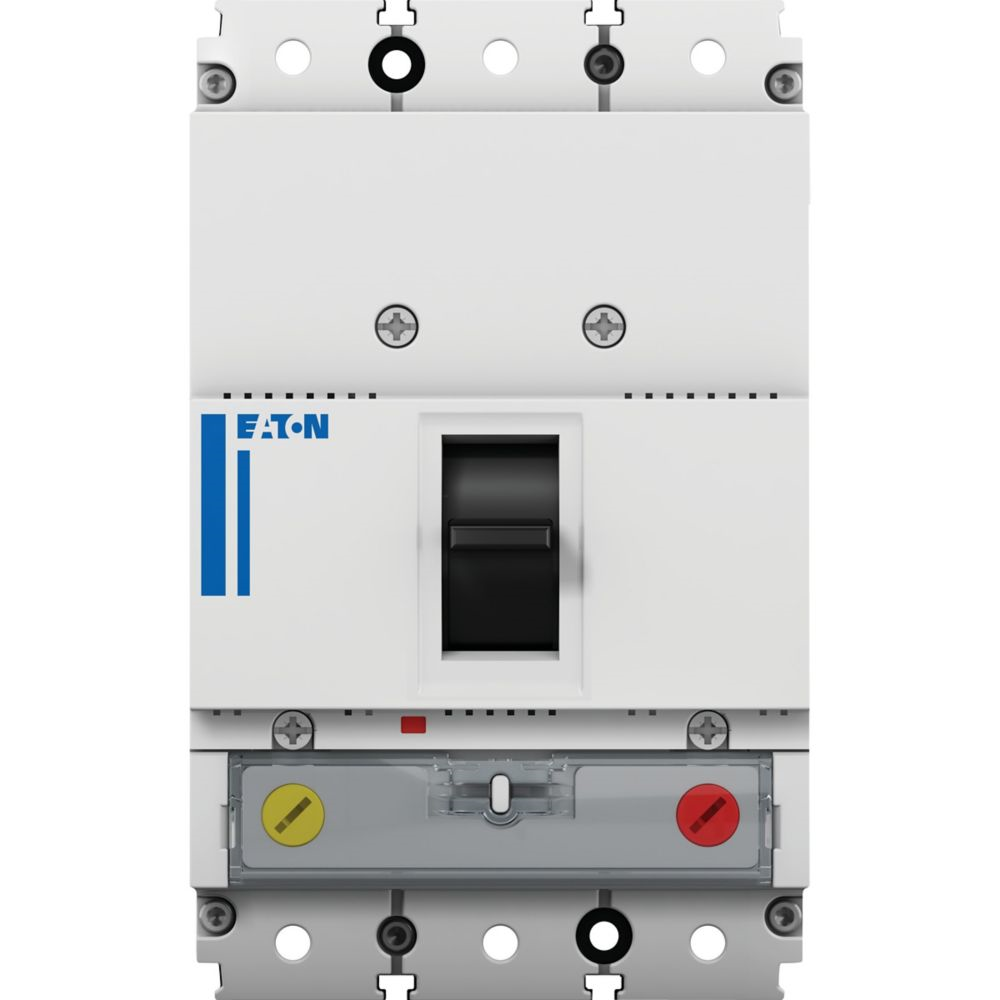

Product Image:
