Description
Product Name

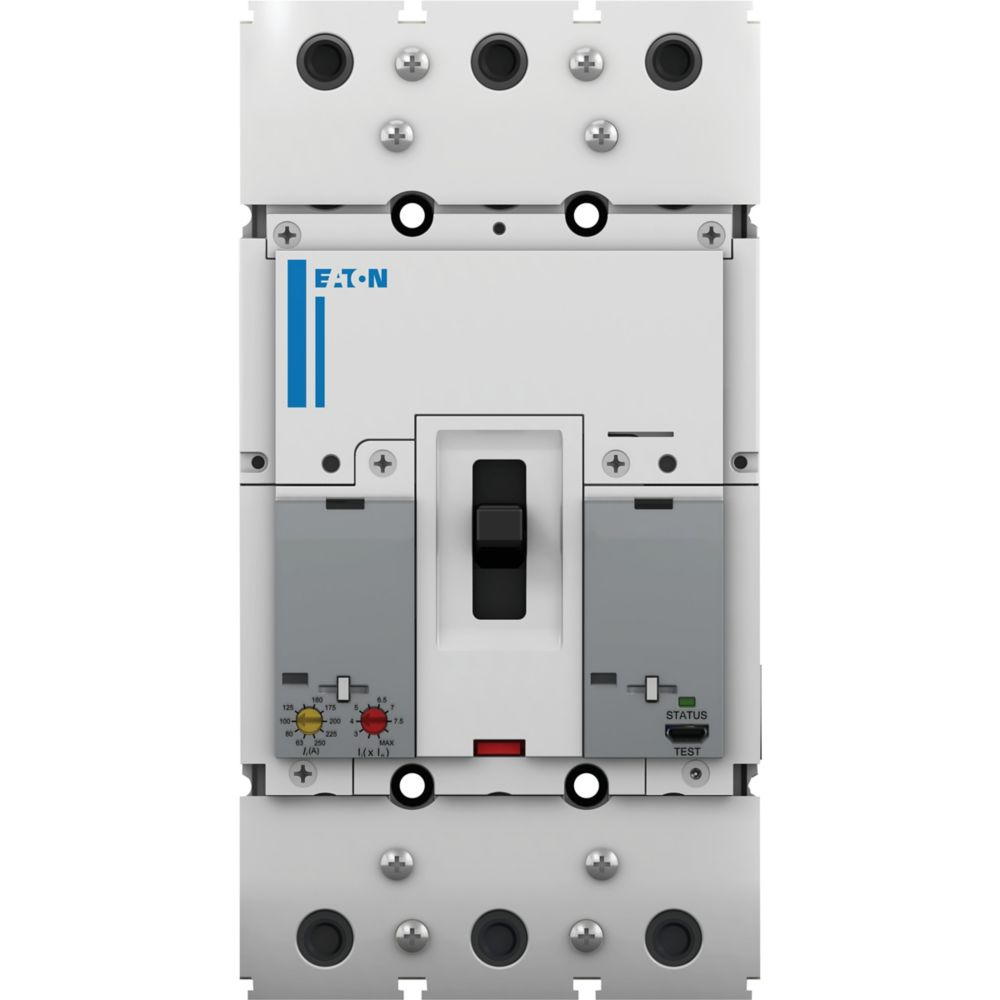

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number
PDE23G0200TAAS
Model Code
PDE23G0200TAAS
EAN
9008790967764
Dimensions
Length/Depth: 20.1 cm; Height: 8.9 cm; Width: 10.3 cm;
Weight
2.646 kg
Compliances and Certifications
RoHS conform; IEC IEC/EN 60947
Product Type
Molded case circuit breaker
Delivery Program
Circuit breaker frame type: PDE2; Amperage Rating: 200 A; Number of poles: Three-pole
Electrical Technical Data
Voltage rating: 220 V – 440 V AC; Voltage rating (DC): 250 V; Max. rated operation voltage Ue AC: 440 V; Rated insulation voltage (Ui): 800 V AC; Rated impulse withstand voltage (Uimp) at auxiliary contacts: 4000 V; Rated impulse withstand voltage (Uimp) at main contacts: 8000 V; Rated current (Iu): 200 A; Instantaneous current setting (Ii): min 1000 A, max 1600 A; Overload current setting (Ir): min 160 A, max 200 A; Rated short-circuit breaking capacity Ics at 230 V 50/60 Hz: 50 kA; at 400/415 V 50/60 Hz: 36 kA; at 440 V 50/60 Hz: 22.5 kA; Electrical connection type of main circuit: Screw connection; Overvoltage category: III; Utilization category: A; Pollution degree: 3
Mechanical Technical Data
Type: Circuit breaker; Release system: Thermomagnetic release; Mounting method: DIN rail (top hat rail) mounting optional, Fixed, Complete device in housing; Degree of protection: IP2X; Number of auxiliary contacts (change-over, normally closed, normally open): 0; Number of operations per hour max: 120; Handle type: Rocker lever; Position of connection for main current circuit: Front side; Direction of incoming supply: Vertical and 90° in all directions; Standard terminals: Screw terminal; Lifespan, mechanical: 20000 operations
Environmental and Design Verification
Ambient operating temperature: min -20 °C, max 70 °C; Ambient storage temperature: min -20 °C, max 70 °C.
Additional Information
Features: Protection unit, Motor drive optional; Functions: System and cable protection; Special features: Thermally and magnetically adjustable (calibrated at 40 °C)
Customs Tariff Code
85362000
