Description

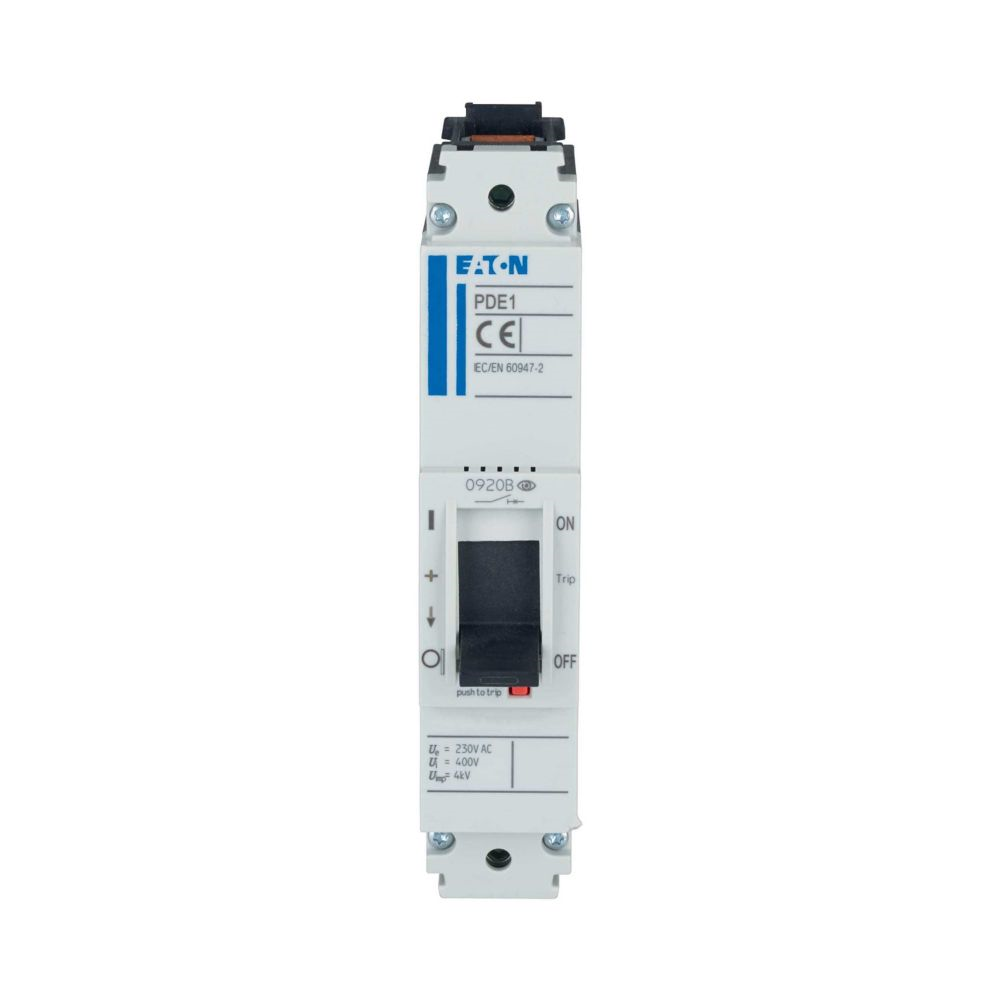

Product Name: Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number: PDE11C0032TFFJ
Model Code: PDE11C0032TFFJ
EAN: 9010238099210
Dimensions (L x H x W): 8.8 cm x 14.5 cm x 3 cm
Weight: 0.386 kg
Compliances: RoHS conform
Certifications: IEC IEC/EN 60947
Delivery Program
Circuit breaker frame type: PDE1
Amperage Rating: 32 A
Number of poles: Single-pole
Technical Data – Electrical
Voltage rating: 230 V – 230 V
Max. rated operation voltage Ue AC: 230 V
Rated insulation voltage (Ui): 400 V AC
Rated impulse withstand voltage (Uimp) at auxiliary contacts: 6000 V
Rated impulse withstand voltage (Uimp) at main contacts: 6000 V
Rated current (Iu): 32 A
Instantaneous current setting (Ii) – min: 32 A
Instantaneous current setting (Ii) – max: 350 A
Overload current setting (Ir) – min: 25.6 A
Overload current setting (Ir) – max: 32 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz: 18 kA
Short-circuit total breaktime: < 10 ms
Electrical connection type of main circuit: Frame clamp
Isolation: 500 V AC (between auxiliary contacts and main contacts) 300 V AC (between the auxiliary contacts)
Overvoltage category: III
Utilization category: A
Pollution degree: 3
Technical Data – Mechanical
Type: Circuit breaker
Release system: Thermomagnetic release
Mounting Method: Complete device in housing DIN rail (top hat rail) mounting optional Fixed
Degree of protection: IP2X IP20 (basic degree of protection, in the operating controls area)
Degree of protection (IP), front side: IP40 (with insulating surround) IP66 (with door coupling rotary handle)
Degree of protection (terminations): IP10 (tunnel terminal) IP00 (terminations, phase isolator and band terminal)
Shock resistance: 20 g (half-sinusoidal shock 20 ms)
Number of auxiliary contacts (change-over contacts): 0
Number of auxiliary contacts (normally closed contacts): 0
Number of auxiliary contacts (normally open contacts): 0
Number of operations per hour – max: 120
Handle type: Rocker lever
Position of connection for main current circuit: Front side
Direction of incoming supply: Vertical and 90° in all directions
Standard terminals: Box terminal
Climatic proofing: Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30
Lifespan, mechanical: 20000 operations
Design Verification as per IEC/EN 61439 – Technical Data
Ambient operating temperature – min: -25 °C
Ambient operating temperature – max: 70 °C
Ambient storage temperature – min: -40 °C
Ambient storage temperature – max: 70 °C
Additional Information
Features: Protection unit
Functions: System and cable protection
Special features: Fixed overload releases Ir
Customs Tariff Code: 85362010
