Description
Product Name

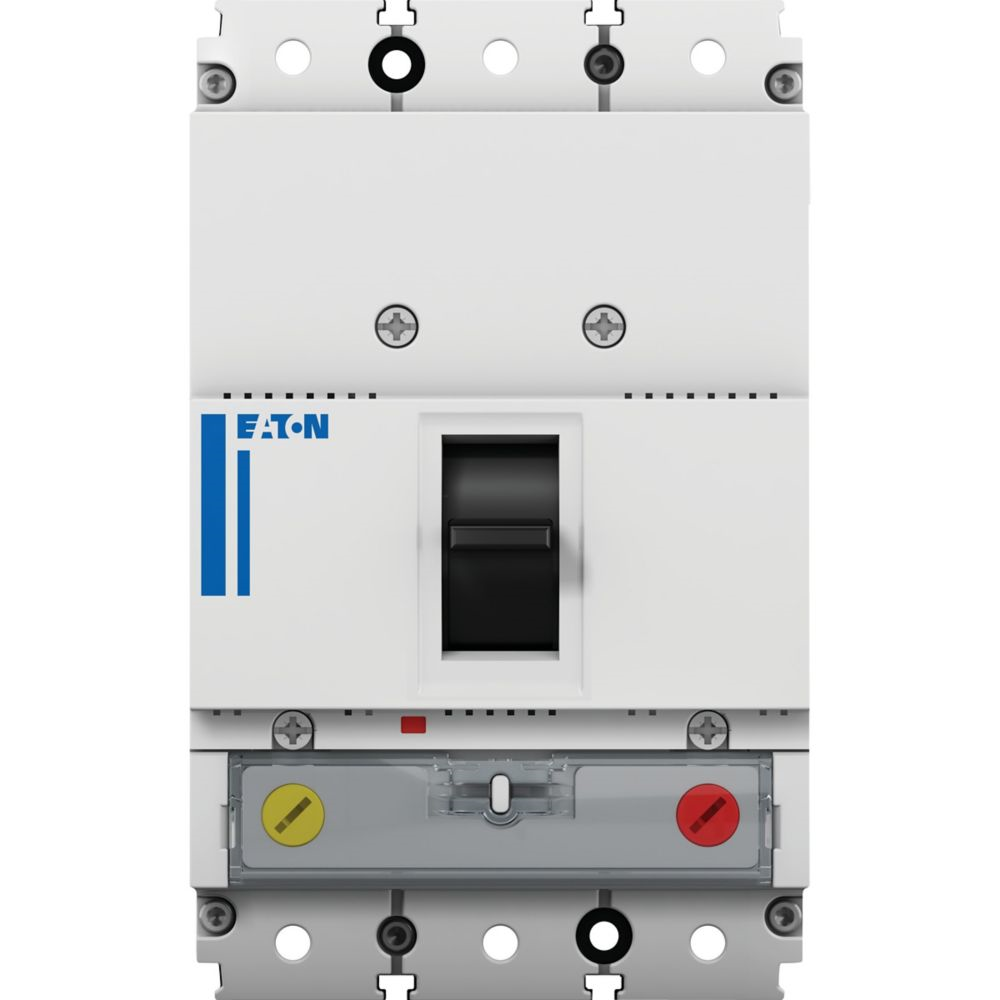

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number
PDE13K0080VAAJ
General Specifications
EAN: 9010238098398
Length/Depth: 14.5 cm
Height: 8.7 cm
Width: 8.9 cm
Weight: 1.046 kg
Compliances: RoHS conform
Certifications: IEC IEC/EN 60947
Model Code: PDE13K0080VAAJ
Delivery Program
Type: Circuit breaker
Circuit breaker frame type: PDE1
Number of poles: Three-pole
Amperage Rating: 80 A
Release system: Thermomagnetic release
Features: Protection unit Motor drive optional
Special features: Thermally and magnetically adjustable (calibrated at 50 °C)
Technical Data – Electrical
Voltage rating: 220 V – 440 V
Voltage rating (DC): 250 V
Rated impulse withstand voltage (Uimp) at auxiliary contacts: 6000 V
Rated impulse withstand voltage (Uimp) at main contacts: 6000 V
Rated current (Iu): 80 A
Instantaneous current setting (Ii) min and max: 800 A
Overload current setting (Ir) min: 64 A
Overload current setting (Ir) max: 80 A
Rated short-circuit breaking capacity Ics at 230 V, 50/60 Hz: 65 kA
Rated short-circuit breaking capacity Ics at 400/415 V, 50/60 Hz: 50 kA
Rated short-circuit breaking capacity Ics at 440 V, 50/60 Hz: 26 kA
Electrical connection type of main circuit: Frame clamp
Number of operations per hour max: 120
Handle type: Rocker lever
Utilization category: A
Overvoltage category: III
Pollution degree: 3
Direction of incoming supply: Vertical and 90° in all directions
Technical Data – Mechanical
Mounting Method: Complete device in housing Fixed DIN rail (top hat rail) mounting optional
Degree of protection: IP2X
Number of auxiliary contacts (change-over, normally closed, normally open): 0
Position of connection for main current circuit: Front side
Special features: Thermally and magnetically adjustable (calibrated at 50 °C)
Lifespan, mechanical: 25000 operations
Terminals
Standard terminals: Box terminal
Design Verification IEC/EN 61439 – Technical Data
Ambient operating temperature: -20 °C to 70 °C
Ambient storage temperature: -20 °C to 70 °C
Customs Tariff Code
85362085
