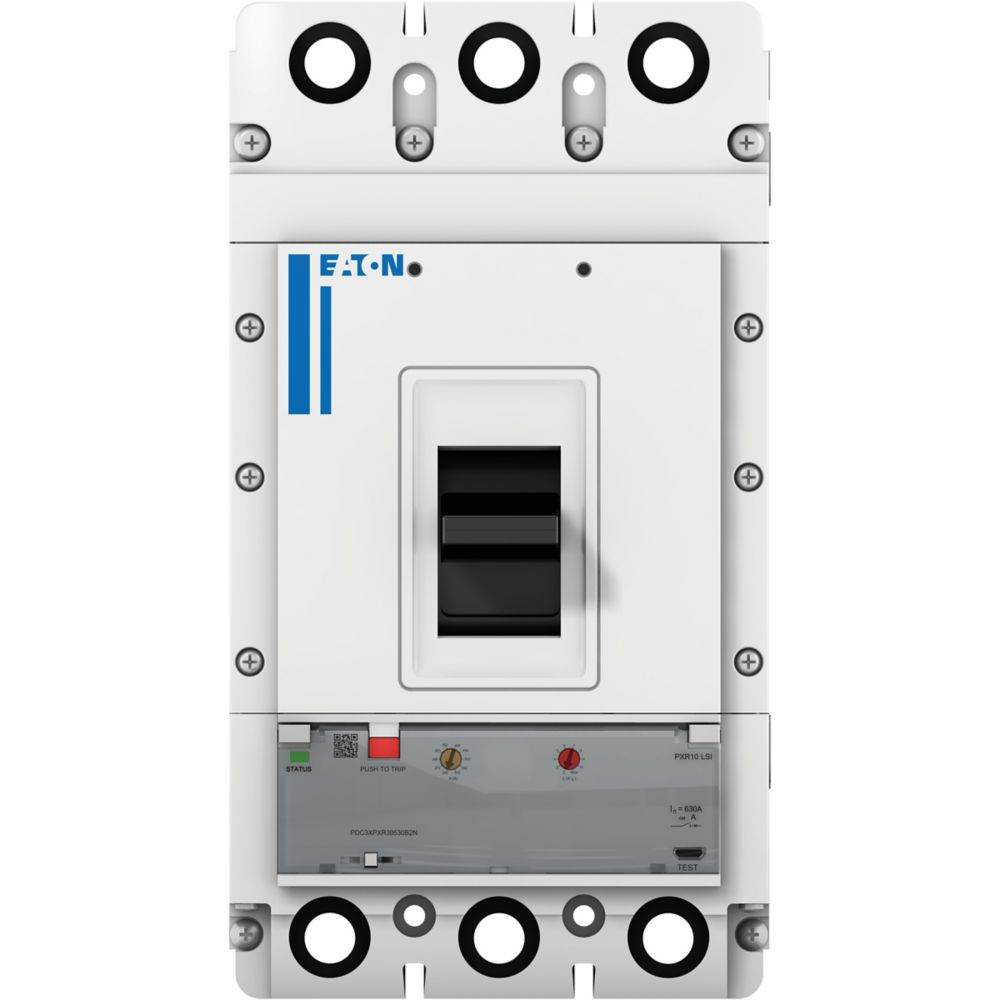

Product Name: Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number: PDE33N0400B1NS
Model Code: PDE33N0400B1NS
EAN: 9010238105065
Dimensions (cm): Length/Depth: 25.7, Height: 13.8, Width: 13.8
Weight (kg): 6
Compliances: RoHS conform
Certifications: IEC IEC/EN 60947
Product Type: Molded case circuit breaker
Circuit breaker frame type: PDE3
Amperage Rating (A): 400
Number of poles: Three-pole
Electrical Technical Data
Voltage rating: 220 V – 440 V
Voltage rating (DC): 250 V
Max. rated operation voltage Ue AC: 440
Rated insulation voltage (Ui): 800 V AC
Rated impulse withstand voltage (Uimp) at auxiliary contacts: 4000 V
Rated impulse withstand voltage (Uimp) at main contacts: 8000 V
Rated current (Iu): 400 A
Instantaneous current setting (Ii) – min: 800 A
Instantaneous current setting (Ii) – max: 7200 A
Overload current setting (Ir) – min: 100 A
Overload current setting (Ir) – max: 400 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947): 100 kA at 230 V, 50/60 Hz; 70 kA at 400/415 V, 50/60 Hz; 37 kA at 440 V, 50/60 Hz
Electrical connection type of main circuit: Screw connection
Overvoltage category: III
Utilization category: A
Pollution degree: 3
Mechanical Technical Data
Type: Circuit breaker
Release system: Electronic release
Mounting Method: Complete device in housing Fixed DIN rail (top hat rail) mounting optional
Degree of protection: IP2X
Number of auxiliary contacts (change-over contacts): 0
Number of auxiliary contacts (normally closed contacts): 0
Number of auxiliary contacts (normally open contacts): 0
Number of operations per hour – max: 60
Handle type: Rocker lever
Position of connection for main current circuit: Front side
Direction of incoming supply: Vertical and 90° in all directions
Standard terminals: Screw terminal
Lifespan, mechanical: 15000 operations
Design Verification as per IEC/EN 61439
Rated operational current for specified heat dissipation (In): 400 A
Ambient operating temperature: -20 °C to 70 °C
Ambient storage temperature: -20 °C to 70 °C
10.2.2 Corrosion resistance: Meets the product standard’s requirements.
10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard’s requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat: Meets the product standard’s requirements.
10.2.3.3 Resistance of insulating materials to abnormal heat/fire by internal electrical effects: Meets the product standard’s requirements.
10.2.4 Resistance to ultra-violet (UV) radiation: Meets the product standard’s requirements.
10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions: Meets the product standard’s requirements.
10.3 Degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances: Meets the product standard’s requirements.
10.5 Protection against electric shock: Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components: Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections: Is the panel builder’s responsibility.
10.8 Connections for external conductors: Is the panel builder’s responsibility.
10.9.2 Power-frequency electric strength: Is the panel builder’s responsibility.
10.9.3 Impulse withstand voltage: Is the panel builder’s responsibility.
10.9.4 Testing of enclosures made of insulating material: Is the panel builder’s responsibility.
10.10 Temperature rise: The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating: Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility: Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional Information
Features: Protection unit Motor drive optional
Functions: System and cable protection
Special features: PXR 10 electronics
