Description
Product Name

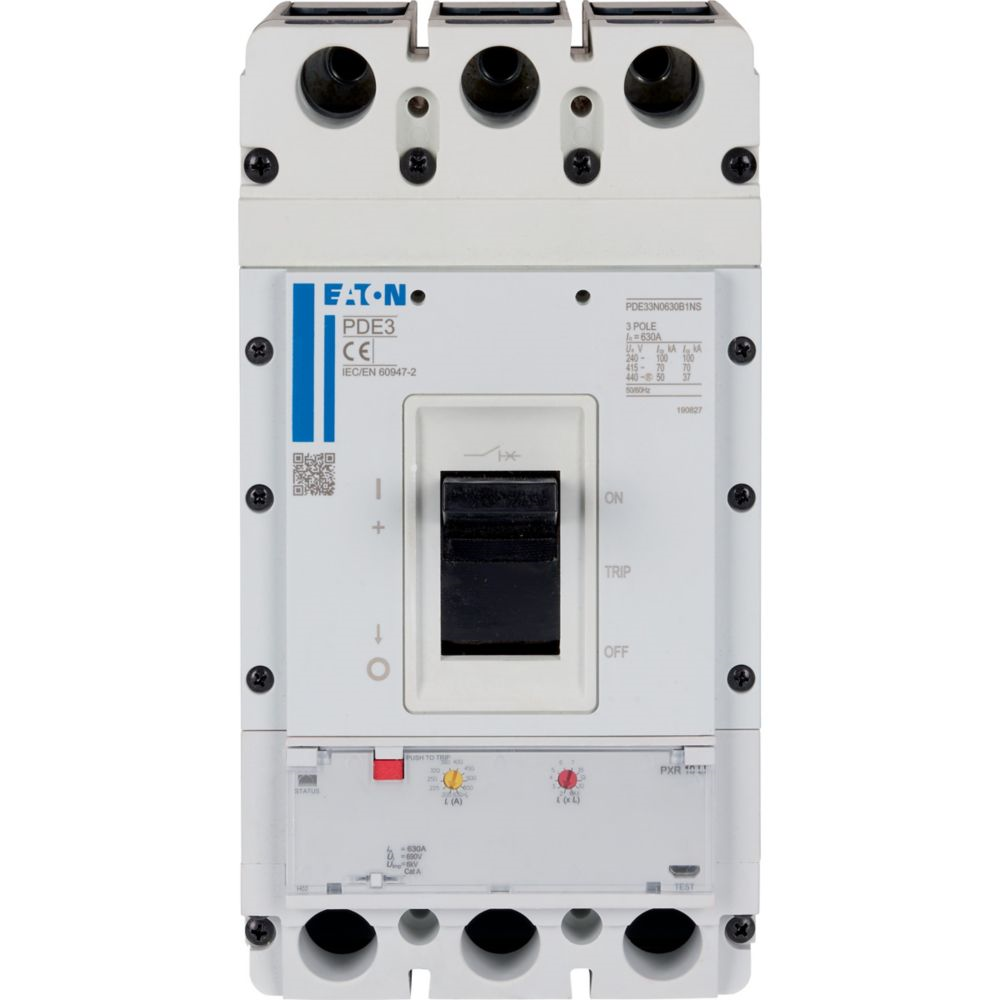

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog & Model Number
Catalog Number: PDE33N0630B1NS
Model Code: PDE33N0630B1NS
EAN: 9010238105072
Dimensions and Weight
Length/Depth: 25.7 cm
Height: 13.8 cm
Width: 13.8 cm
Weight: 6.0 kg
Certifications and Compliance
Compliances: RoHS conform
Certifications: IEC IEC/EN 60947
Product Type and Frame
Type: Molded case circuit breaker
Circuit breaker frame type: PDE3
Amperage Rating: 630 A
Number of poles: Three-pole
Electrical Specifications
Voltage Rating: 220 V – 440 V AC
Voltage Rating (DC): 250 V
Max. rated operation voltage Ue AC: 440 V
Rated insulation voltage (Ui): 800 V AC
Rated impulse withstand voltage (Uimp) at auxiliary contacts: 4000 V
Rated impulse withstand voltage (Uimp) at main contacts: 8000 V
Rated current (Iu): 630 A
Instantaneous current setting (Ii) – min: 1260 A
Instantaneous current setting (Ii) – max: 7182 A
Overload current setting (Ir) – min: 200 A
Overload current setting (Ir) – max: 630 A
Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz: 100 kA
Rated short-circuit breaking capacity Ics at 400/415 V, 50/60 Hz: 70 kA
Rated short-circuit breaking capacity Ics at 440 V, 50/60 Hz: 37 kA
Electrical connection type of main circuit: Screw connection
Overvoltage category: III
Utilization category: A
Pollution degree: 3
Mechanical Specifications
Type: Circuit breaker
Release system: Electronic release
Mounting Method: Fixed, complete device in housing, DIN rail (top hat rail) mounting optional
Degree of protection: IP2X
Number of auxiliary contacts (change-over contacts): 0
Number of auxiliary contacts (normally closed contacts): 0
Number of auxiliary contacts (normally open contacts): 0
Number of operations per hour – max: 60
Handle type: Rocker lever
Position of connection for main current circuit: Front side
Direction of incoming supply: Vertical and 90° in all directions
Standard terminals: Screw terminal
Lifespan, mechanical: 15000 operations
Design Verification per IEC/EN 61439 Technical Data
Rated operational current for specified heat dissipation (In): 630 A
Ambient operating temperature: -20 °C min to 70 °C max
Ambient storage temperature: -20 °C min to 70 °C max
Additional Design Verifications as per IEC/EN 61439
Corrosion resistance: Meets the product standard’s requirements.
Verification of thermal stability of enclosures: Meets the product standard’s requirements.
Verification of resistance of insulating materials to normal heat: Meets the product standard’s requirements.
Resistance of insulating materials to abnormal heat/fire by internal electrical effects: Meets the product standard’s requirements.
Resistance to ultra-violet (UV) radiation: Meets the product standard’s requirements.
Lifting and Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated.
Inscriptions: Meets the product standard’s requirements.
Degree of protection of assemblies: Does not apply.
Clearances and creepage distances: Meets the product standard’s requirements.
Protection against electric shock, incorporation of switching devices and components: Does not apply.
Internal electrical circuits and connections, connections for external conductors, power-frequency electric strength, impulse withstand voltage, testing of enclosures made of insulating material: Are the panel builder’s responsibility.
Temperature rise: The panel builder is responsible for the temperature rise calculation. Eaton provides heat dissipation data.
Short-circuit rating and electromagnetic compatibility: Are the panel builder’s responsibility.
Mechanical function: The device meets requirements with instruction leaflet adherence.
Features and Functions
Features: Protection unit, Motor drive optional
Functions: System and cable protection
Special features: PXR 10 electronics
