Description
Product Name

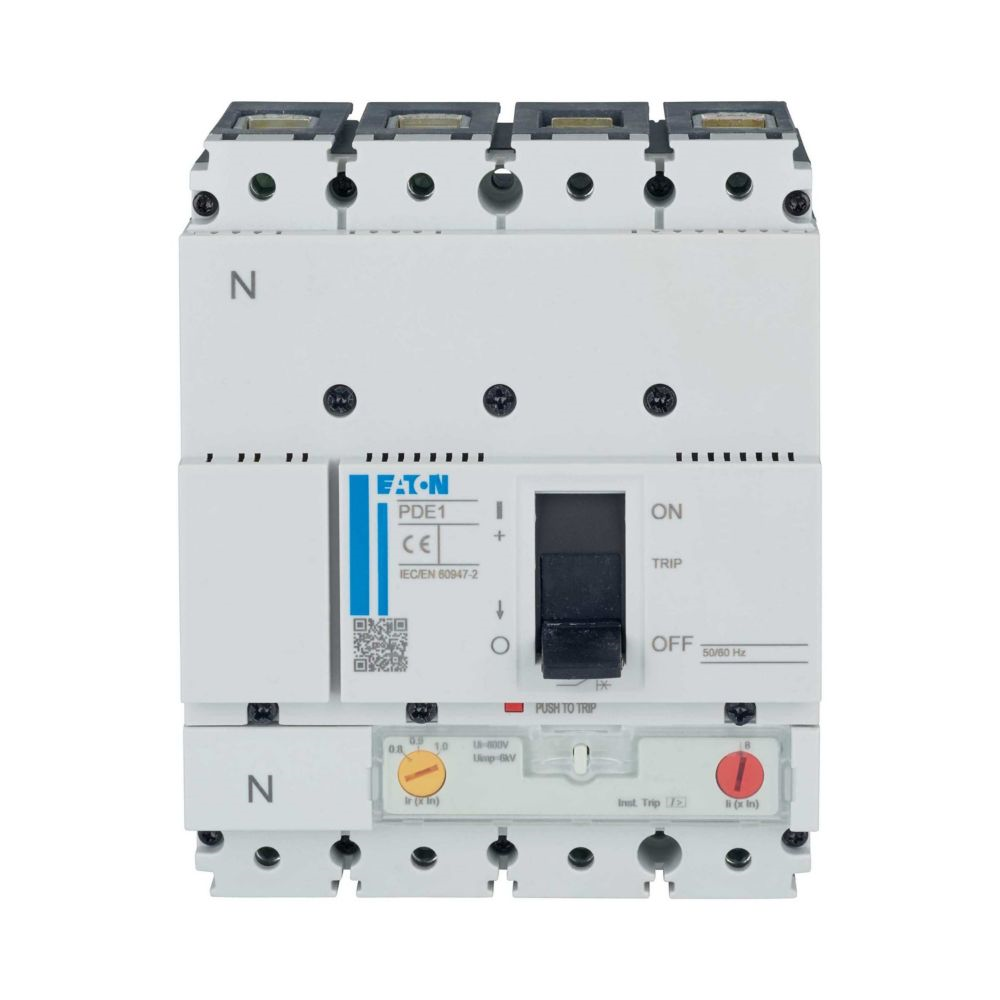

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number
PDE14F0125VAAJ
Model Code
PDE14F0125VAAJ
EAN
9010238098633
Dimensions
Length/Depth: 14.6 cm nHeight: 8.7 cm nWidth: 12.0 cm
Weight
1.325 kg
Compliances & Certifications
Compliances: RoHS conform nCertifications: IEC, IEC/EN 60947
Product Type
Molded case circuit breaker
Delivery Program
Circuit breaker frame type: PDE1 nAmperage Rating: 125 A nNumber of poles: Four-pole
Technical data – electrical
Voltage rating: 220 V – 440 V nVoltage rating (DC): 250 V nMax. rated operation voltage Ue AC: 440 V nRated insulation voltage (Ui): 800 V AC nRated impulse withstand voltage (Uimp) at auxiliary contacts: 6000 V nRated impulse withstand voltage (Uimp) at main contacts: 6000 V nRated current (Iu): 125 A nInstantaneous current setting (Ii) – min & max: 1250 A nOverload current setting (Ir) – min: 100 A nOverload current setting (Ir) – max: 125 A nRated short-circuit breaking capacity Ics (IEC/EN 60947) at 230 V, 50/60 Hz: 35 kA nRated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz: 25 kA nRated short-circuit breaking capacity Ics (IEC/EN 60947) at 440 V, 50/60 Hz: 15 kA nElectrical connection type of main circuit: Frame clamp nOvervoltage category: III nUtilization category: A nPollution degree: 3
Technical data – mechanical
Type: Circuit breaker nRelease system: Thermomagnetic release nMounting Method: Complete device in housing DIN rail (top hat rail) mounting optional Fixed nDegree of protection: IP2X nNumber of auxiliary contacts (change-over contacts): 0 nNumber of auxiliary contacts (normally closed contacts): 0 nNumber of auxiliary contacts (normally open contacts): 0 nNumber of operations per hour – max: 120 nHandle type: Rocker lever nPosition of connection for main current circuit: Front side nDirection of incoming supply: Vertical and 90° in all directions nStandard terminals: Box terminal nLifespan, mechanical: 25000 operations
Design verification as per IEC/EN 61439 – technical data
Ambient operating temperature – min: -20 °C nAmbient operating temperature – max: 70 °C nAmbient storage temperature – min: -20 °C nAmbient storage temperature – max: 70 °C
Design verification as per IEC/EN 61439
10.2.2 Corrosion resistance: Meets the product standard’s requirements. n10.2.3.1 Verification of thermal stability of enclosures: Meets the product standard’s requirements. n10.2.3.2 Verification of resistance of insulating materials to normal heat: Meets the product standard’s requirements. n10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects: Meets the product standard’s requirements. n10.2.4 Resistance to ultra-violet (UV) radiation: Meets the product standard’s requirements. n10.2.5 Lifting: Does not apply, since the entire switchgear needs to be evaluated. n10.2.6 Mechanical impact: Does not apply, since the entire switchgear needs to be evaluated. n10.2.7 Inscriptions: Meets the product standard’s requirements. n10.3 Degree of protection of assemblies: Does not apply, since the entire switchgear needs to be evaluated. n10.4 Clearances and creepage distances: Meets the product standard’s requirements. n10.5 Protection against electric shock: Does not apply, since the entire switchgear needs to be evaluated. n10.6 Incorporation of switching devices and components: Does not apply, since the entire switchgear needs to be evaluated. n10.7 Internal electrical circuits and connections: Is the panel builder’s responsibility. n10.8 Connections for external conductors: Is the panel builder’s responsibility. n10.9.2 Power-frequency electric strength: Is the panel builder’s responsibility. n10.9.3 Impulse withstand voltage: Is the panel builder’s responsibility. n10.9.4 Testing of enclosures made of insulating material: Is the panel builder’s responsibility. n10.10 Temperature rise: The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. n10.11 Short-circuit rating: Is the panel builder’s responsibility. The specifications for the switchgear must be observed. n10.12 Electromagnetic compatibility: Is the panel builder’s responsibility. The specifications for the switchgear must be observed. n10.13 Mechanical function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Additional information
Features: Protection unit Motor drive optional nFunctions: System and cable protection nSpecial features: Thermally and magnetically adjustable (calibrated at 50 °C)
Customs Tariff Code
8536209000
