Description
Product Name

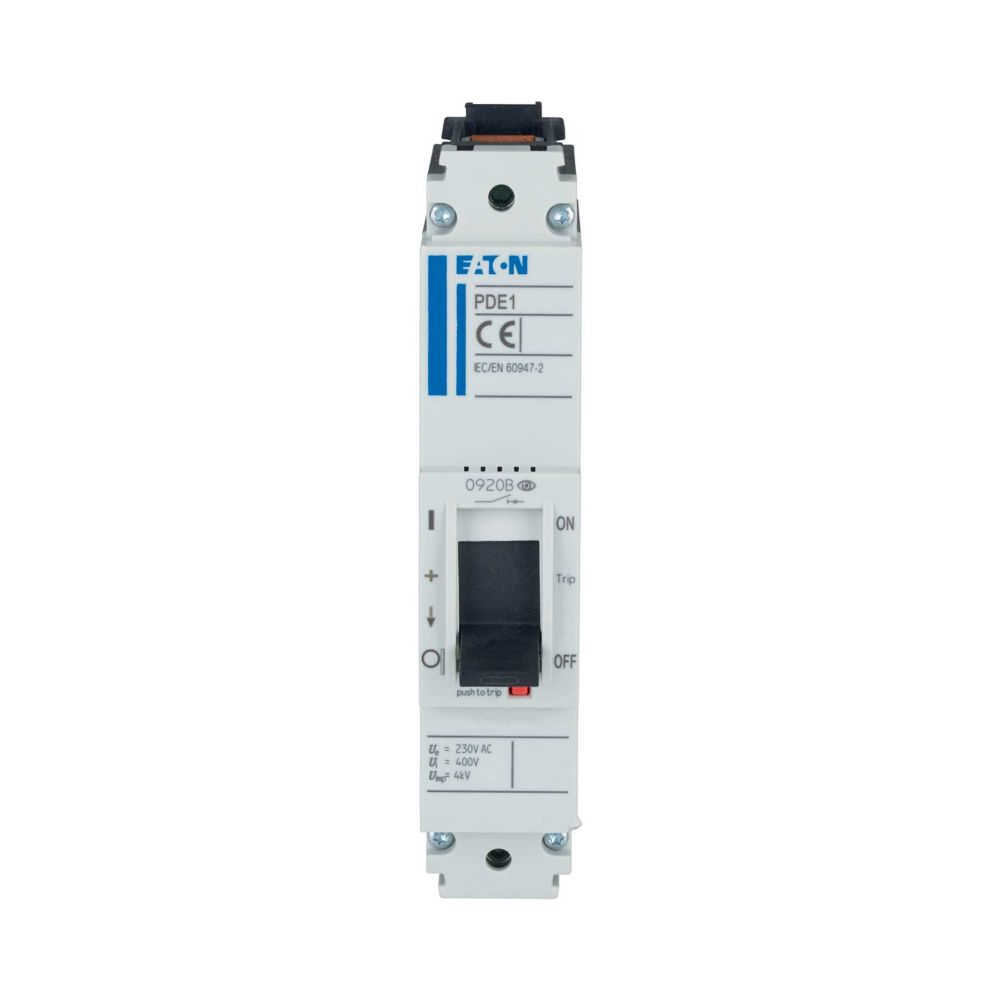

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number
PDE11F0032TFFJ
Model Code
PDE11F0032TFFJ
EAN
9010238099319
Dimensions
Length/Depth: 8.8 cm, Height: 14.5 cm, Width: 3.0 cm
Weight
0.386 kg
Certifications and Compliances
RoHS conform, IEC IEC/EN 60947
Product Type
Molded case circuit breaker
Delivery Program
Circuit breaker frame type: PDE1, Amperage Rating: 32 A, Number of poles: Single-pole
Technical Data – Electrical
Voltage rating: 230 V – 230 V, Max. rated operation voltage Ue AC: 230 V, Rated insulation voltage (Ui): 400 V AC, Rated impulse withstand voltage (Uimp) at auxiliary contacts: 6000 V, Rated impulse withstand voltage (Uimp) at main contacts: 6000 V, Rated current (Iu): 32 A, Instantaneous current setting (Ii) min: 32 A, Instantaneous current setting (Ii) max: 350 A, Overload current setting (Ir) min: 25.6 A, Overload current setting (Ir) max: 32 A, Rated short-circuit breaking capacity Ics (IEC/EN 60947) at 400/415 V, 50/60 Hz: 18 kA, Short-circuit total breaktime: < 10 ms, Electrical connection type main circuit: Frame clamp, Isolation: 500 V AC (between auxiliary contacts and main contacts) 300 V AC (between auxiliary contacts), Overvoltage category: III, Utilization category: A, Pollution degree: 3
Technical Data – Mechanical
Type: Circuit breaker, Release system: Thermomagnetic release, Mounting Method: Complete device in housing Fixed DIN rail (top hat rail) mounting optional, Degree of protection: IP2X IP20 (basic degree of protection, operating controls area), Degree of protection front side: IP40 (with insulating surround) IP66 (with door coupling rotary handle), Degree of protection terminations: IP10 (tunnel terminal) IP00 (terminations, phase isolator and band terminal), Shock resistance: 20 g (half-sinusoidal shock 20 ms), Number of auxiliary contacts: 0 change-over, 0 normally closed, 0 normally open, Number of operations per hour max: 120, Handle type: Rocker lever, Position of connection for main current circuit: Front side, Direction of incoming supply: Vertical and 90° in all directions, Standard terminals: Box terminal, Climatic proofing: Damp heat constant IEC 60068-2-78, Damp heat cyclic IEC 60068-2-30, Lifespan mechanical: 20000 operations
Design Verification as per IEC/EN 61439 – Technical Data
Ambient operating temperature – min: -25 °C, Ambient operating temperature – max: 70 °C, Ambient storage temperature – min: -40 °C, Ambient storage temperature – max: 70 °C
Additional Information
Features: Protection unit, Functions: System and cable protection, Special features: Fixed overload releases Ir
Customs Tariff Code
85362000
