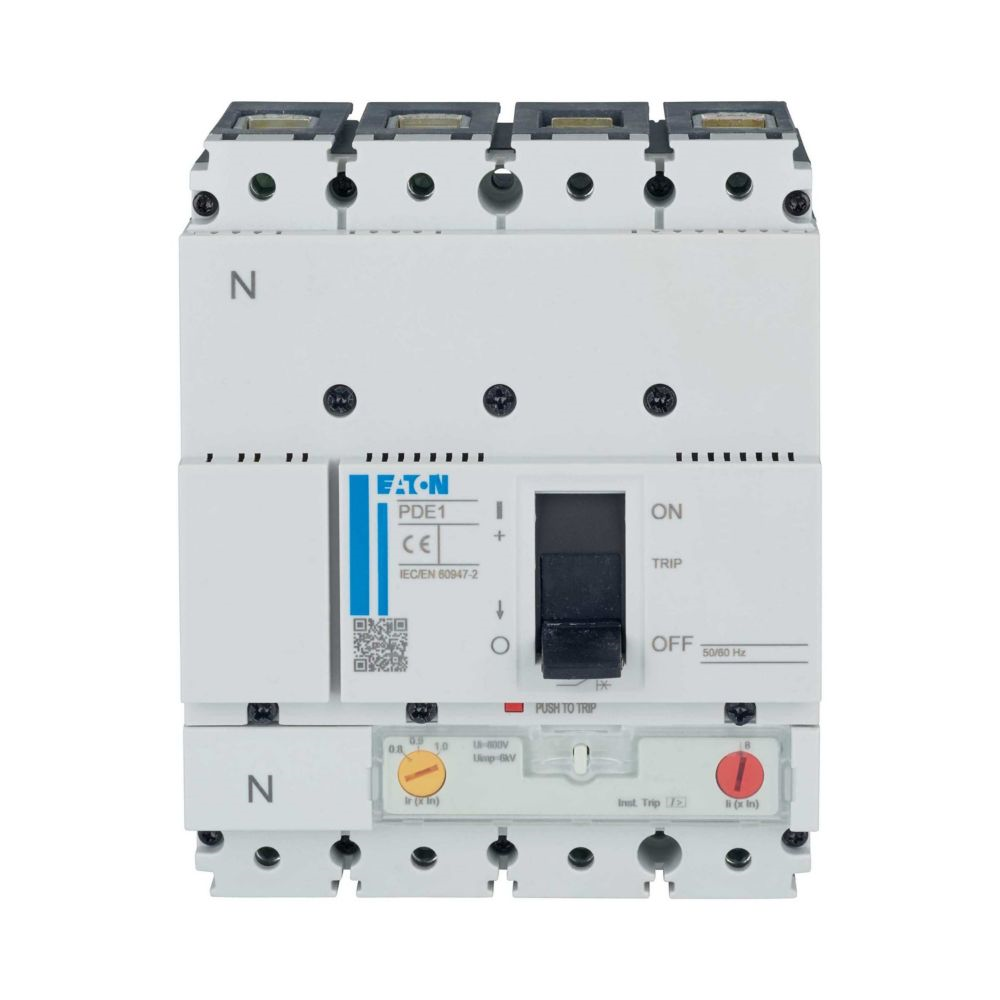

Name: Eaton Moeller series Power Defense molded case circuit-breaker
SKU: PDE14G0016VAAJ
Availability: InStock

Description

Product Name

Eaton Moeller series Power Defense molded case circuit-breaker

Catalog Number

PDE14G0016VAAJ

Dimensions

Length/Depth: 14.6 cm, Height: 8.7 cm, Width: 12 cm, Weight: 1.325 kg

Compliance and Certification

Compliances: RoHS conform. Certifications: IEC IEC/EN 60947.

Electrical Ratings

Amperage Rating: 16 A. Voltage Rating: 220 V – 440 V. Rated Current (Iu): 16 A. Max. Rated Operation Voltage Ue AC: 440 V. Voltage Rating (DC): 250 V. Rated Insulation Voltage (Ui): 800 V AC.

Specifications

Circuit Breaker Frame Type: PDE1. Standard Terminals: Box terminal. Number of Poles: Four-pole. Degree of Protection: IP2X. Overvoltage Category: III. Mounting Method: DIN rail (top hat rail) mounting optional, Complete device in housing, Fixed. Direction of Incoming Supply: Vertical and 90° in all directions. Electrical Connection Type of Main Circuit: Frame clamp.

Features

Protection unit, Motor drive optional. Thermally and magnetically adjustable (calibrated at 50 °C). Release System: Thermomagnetic release. Handle Type: Rocker lever. Position of Connection for Main Current Circuit: Front side. Functions: System and cable protection.

Performance

Power Loss: 36.1 W. Instantaneous Current Setting (Ii): Min 16 A, Max 350 A. Overload Current Setting (Ir): Min 12.8 A, Max 16 A. Number of Operations per Hour Max: 120. Rated Short-Circuit Breaking Capacity Ics (IEC/EN 60947): 50 kA at 230 V 50/60 Hz, 36 kA at 400/415 V 50/60 Hz, 22.5 kA at 440 V 50/60 Hz.

Environmental and Mechanical

Ambient Operating Temperature Range: -20 °C to 70 °C. Ambient Storage Temperature Range: -20 °C to 70 °C. Pollution Degree: 3. Lifespan Mechanical: 25000 operations.

Additional Information

Temperature rise calculation, short-circuit rating, electromagnetic compatibility, internal electrical circuits and connections, connections for external conductors, power-frequency electric strength, impulse withstand voltage, and testing of enclosures made of insulating material are the panel builder’s responsibility. The device meets product standard requirements for corrosion resistance, thermal stability of enclosures, resistance of insulating materials to normal and abnormal heat/fire by internal electrical effects, resistance to UV radiation, and inscriptions. Mechanical impact and lifting do not apply as the entire switchgear needs evaluation.

Customs Tariff Code

85362080

Post Views: 40

Additional information

Weight	1.325 kg
Dimensions	14.6 × 12 × 8.7 cm
SKU	PDE14G0016VAAJ
Catalog Number	PDE14G0016VAAJ
Model Code	PDE14G0016VAAJ
Compliances	RoHS conform
Certifications	IEC IEC/EN 60947
Circuit breaker frame type	PDE1
Number of poles	Four-pole
Overvoltage category	III
Utilization category	A
Pollution degree	3
Type	Circuit breaker
Release system	Thermomagnetic release
Mounting Method	DIN rail (top hat rail) mounting optional Complete device in housing Fixed
Degree of protection	IP2X
Number of auxiliary contacts change over contacts	0
Number of auxiliary contacts normally closed contacts	0
Number of auxiliary contacts normally open contacts	0
Number of operations per hour max	120
Handle type	Rocker lever
Direction of incoming supply	Vertical and 90° in all directions
Standard terminals	Box terminal
Functions	System and cable protection
Special features	Thermally and magnetically adjustable (calibrated at 50 °C)
Customs Tariff Code	85362080
Amperage Rating	16
Voltage rating	220 V – 440 V
Voltage rating DC	250
Rated impulse withstand voltage Uimp auxiliary contacts	6000
Rated impulse withstand voltage Uimp main contacts	6000
Rated current Iu	16
Instantaneous current setting Ii min	16
Instantaneous current setting Ii max	350
Overload current setting Ir min	12.8
Overload current setting Ir max	16
Rated short circuit breaking capacity Ics 230V 50 60Hz	50000
Rated short circuit breaking capacity Ics 400 415V 50 60Hz	36000
Rated short circuit breaking capacity Ics 440V 50 60Hz	22500
Lifespan mechanical	25000
Ambient operating temperature min	-20
Ambient operating temperature max	70
Ambient storage temperature min	-20
Ambient storage temperature max	70
Temperature rise	The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Short-circuit rating	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
Electromagnetic compatibility	Is the panel builder's responsibility. The specifications for the switchgear must be observed.
Mechanical function	The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Corrosion resistance	Meets the product standard's requirements.
Verification of thermal stability of enclosures	Meets the product standard's requirements.
Verification of resistance of insulating materials to normal heat	Meets the product standard's requirements.
Resistance of insulating material to abnormal heat fire by internal electrical effects	Meets the product standard's requirements.
Resistance to ultra violet UV radiation	Meets the product standard's requirements.
Lifting	Does not apply, since the entire switchgear needs to be evaluated.
Mechanical impact	Does not apply, since the entire switchgear needs to be evaluated.
Inscriptions	Meets the product standard's requirements.
Degree of protection of assemblies	Does not apply, since the entire switchgear needs to be evaluated.
Clearances and creepage distances	Meets the product standard's requirements.
Protection against electric shock	Does not apply, since the entire switchgear needs to be evaluated.
Incorporation of switching devices and components	Does not apply, since the entire switchgear needs to be evaluated.
Internal electrical circuits and connections	Is the panel builder's responsibility.
Connections for external conductors	Is the panel builder's responsibility.
Power frequency electric strength	Is the panel builder's responsibility.
Impulse withstand voltage	Is the panel builder's responsibility.
Testing of enclosures made of insulating material	Is the panel builder's responsibility.
Max rated operation voltage Ue AC	440
Electrical connection type of main circuit	Frame clamp
Position of connection for main current circuit	Front side
Power loss	36.1 W
Rated insulation voltage Ui	800 V AC
