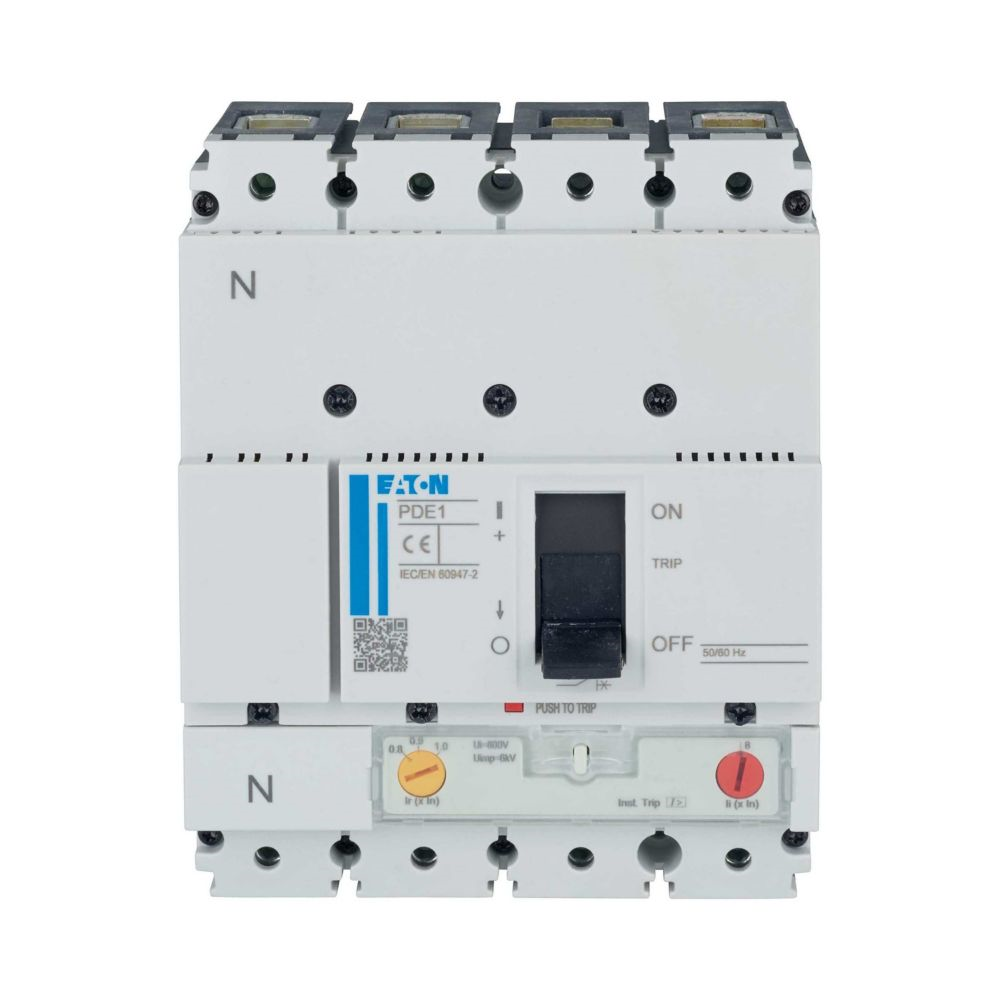

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number: PDE14G0063VAAJ
EAN: 9010238098718
Dimensions (L x H x W): 14.6 cm x 8.7 cm x 12 cm
Weight: 1.325 kg
Compliances: RoHS conform
Certifications: IEC IEC/EN 60947
Amperage Rating: 63 A
Voltage Rating: 220 V – 440 V
Circuit Breaker Frame Type: PDE1
Features: Protection unit Motor drive optional
Temperature Rise: The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
Short-circuit Rating: Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
Electromagnetic Compatibility: Is the panel builder’s responsibility. The specifications for the switchgear must be observed.
Mechanical Function: The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
Pollution Degree: 3
Lifespan (Mechanical): 25000 operations
Utilization Category: A
Mounting Method: Complete device in housing Fixed DIN rail (top hat rail) mounting optional
Ambient Operating Temperature: -20 °C to 70 °C
Ambient Storage Temperature: -20 °C to 70 °C
Rated Current (Iu): 63 A
Max. Rated Operation Voltage Ue AC: 440 V
Degree of Protection: IP2X
Direction of Incoming Supply: Vertical and 90° in all directions
Electrical Connection Type of Main Circuit: Frame clamp
Overvoltage Category: III
Number of Poles: Four-pole
Functions: System and cable protection
Special Features: Thermally and magnetically adjustable (calibrated at 50 °C)
Position of Connection for Main Current Circuit: Front side
Power Loss: 36.1 W
Release System: Thermomagnetic release
Handle Type: Rocker lever
Instantaneous Current Setting (Ii) Range: 63 A to 630 A
Operations per Hour – Max: 120
Overload Current Setting (Ir) Range: 50.4 A to 63 A
Rated Short-Circuit Breaking Capacity Ics (IEC/EN 60947): 50 kA at 230 V 50/60 Hz, 36 kA at 400/415 V 50/60 Hz, 22.5 kA at 440 V 50/60 Hz
Standard Terminals: Box terminal
Rated Impulse Withstand Voltage (Uimp): 6000 V at auxiliary contacts and main contacts
Voltage Rating (DC): 250 V
Rated Insulation Voltage (Ui): 800 V AC
Customs Tariff Code: 85362010
