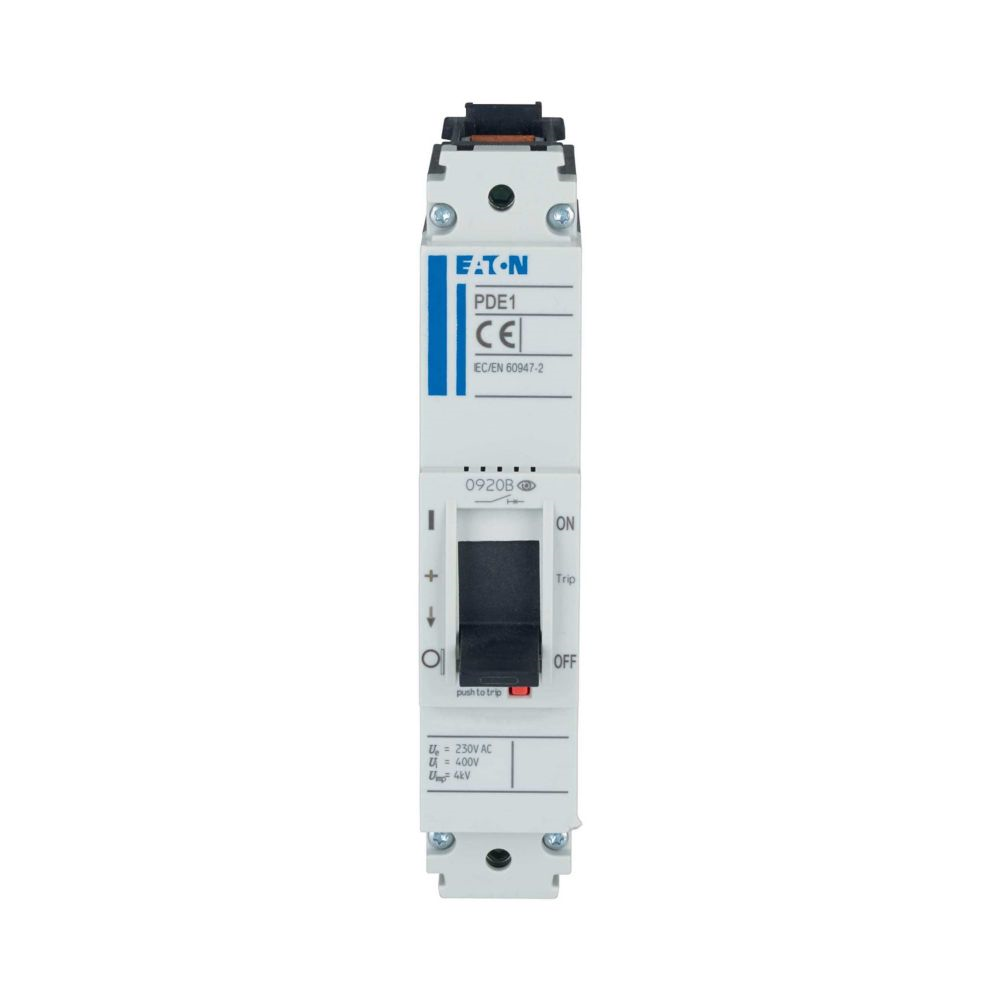

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog and Model
Catalog Number: PDE11F0125TFFJ, Model Code: PDE11F0125TFFJ, EAN: 9010238099371
Dimensions and Weight
Length/Depth: 8.8 cm, Height: 14.5 cm, Width: 3 cm, Weight: 0.386 kg
Electrical Specifications
Amperage Rating: 125 A, Number of Poles: Single-pole, Voltage rating: 230 V – 230 V, Max. rated operation voltage Ue AC: 230 V, Rated insulation voltage (Ui): 400 V AC, Rated impulse withstand voltage (Uimp) at auxiliary contacts: 6000 V, Rated impulse withstand voltage (Uimp) at main contacts: 6000 V, Rated current (Iu): 125 A, Instantaneous current setting (Ii) min and max: 1250 A, Overload current setting (Ir) min: 100 A, max: 125 A, Rated short-circuit breaking capacity Ics at 400/415 V, 50/60 Hz: 18 kA, Short-circuit total breaktime: < 10 ms
Mechanical and Protection
Type: Circuit breaker, Release system: Thermomagnetic release, Mounting Method: Complete device in housing, Fixed, DIN rail (top hat rail) mounting optional, Degree of protection: IP2X, IP20 (basic degree of protection in the operating controls area), Front side protection: IP40 (with insulating surround), IP66 (with door coupling rotary handle), Terminations protection: IP10 (tunnel terminal), IP00 (terminations, phase isolator and band terminal), Shock resistance: 20 g (half-sinusoidal shock 20 ms), Handle type: Rocker lever
Connections and Operation
Electrical connection type of main circuit: Frame clamp, Position of connection for main current circuit: Front side, Direction of incoming supply: Vertical and 90° in all directions, Standard terminals: Box terminal
Environmental and Lifespan
Climatic proofing: Damp heat constant and cyclic to IEC 60068-2-78 and IEC 60068-2-30, Lifespan mechanical: 20000 operations, Ambient operating temperature range: -25 °C to 70 °C, Ambient storage temperature range: -40 °C to 70 °C
Features and Functions
Features: Protection unit, Functions: System and cable protection, Special features: Fixed overload releases Ir
Certifications and Compliance
Certifications: IEC IEC/EN 60947, Compliances: RoHS conform, Customs Tariff Code: 85362000
