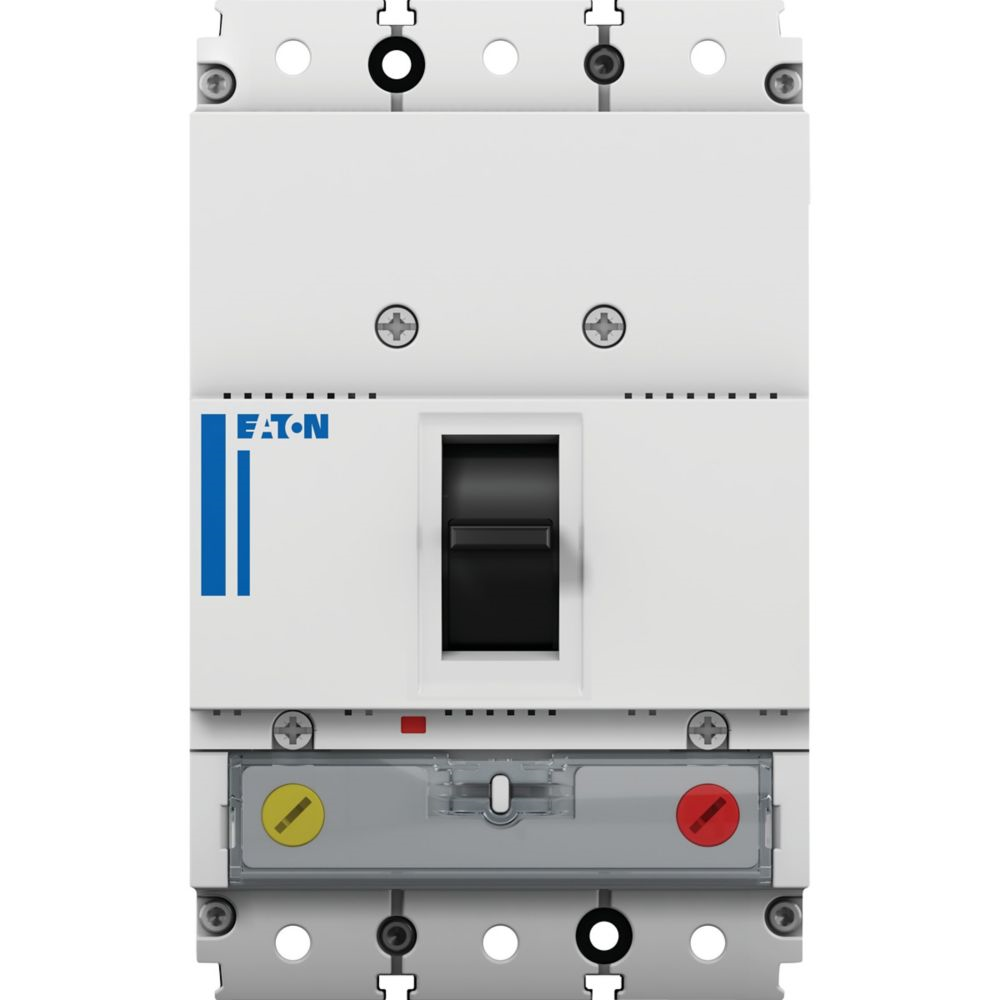

Eaton Moeller series Power Defense molded case circuit-breaker
Catalog Number & Model Code
PDE13F0025VAAJ
Dimensions & Weight
Length/Depth: 14.5 cm, Height: 8.7 cm, Width: 8.9 cm, Weight: 1.046 kg
Certifications & Compliance
RoHS conform, Certified to IEC IEC/EN 60947
Delivery program
Circuit breaker frame type: PDE1, Amperage Rating: 25 A, Number of poles: Three-pole
Electrical Data
Voltage rating: 220 – 440 V AC, Voltage rating DC: 250 V, Max. rated operation voltage Ue AC: 440 V, Rated insulation voltage (Ui): 800 V AC, Rated impulse withstand voltage at auxiliary and main contacts: 6000 V each, Rated current (Iu): 25 A, Instantaneous current setting (Ii) min to max: 25 A to 350 A, Overload current setting (Ir) min to max: 20 A to 25 A
Rated short-circuit breaking capacity Ics at 230 V, 50/60 Hz: 35 kA, at 400/415 V: 25 kA, at 440 V: 15 kA
Electrical connection type of main circuit: Frame clamp, Overvoltage category: III, Utilization category: A, Pollution degree: 3
Mechanical Data
Type: Circuit breaker, Release system: Thermomagnetic release, Mounting Method: Complete device in housing Fixed DIN rail (top hat rail) mounting optional, Degree of protection: IP2X
Auxiliary contacts (change-over, normally closed, normally open): 0 each, Number of operations per hour max: 120, Handle type: Rocker lever, Position of connection for main current circuit: Front side
Direction of incoming supply: Vertical and 90° in all directions, Standard terminals: Box terminal, Lifespan mechanical: 25000 operations
Environmental Data
Ambient operating temperature: from -20 °C to 70 °C, Ambient storage temperature: from -20 °C to 70 °C
Additional Information
Features: Protection unit Motor drive optional, Functions: System and cable protection, Special features: Thermally and magnetically adjustable (calibrated at 50 °C)
