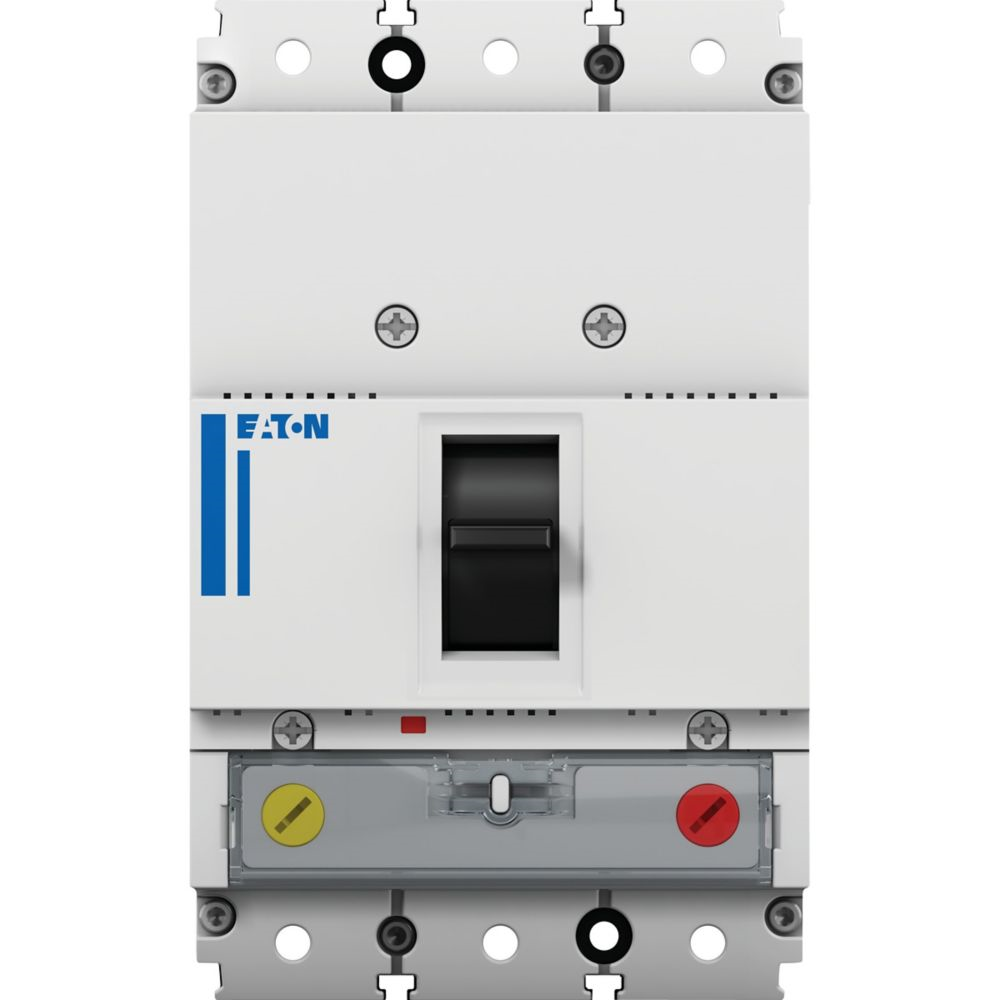

Eaton Moeller series Power Defense molded case circuit-breaker – PDE13F0032VAAJ
Description: Eaton Moeller series Power Defense – Molded Case Circuit Breaker. Circuit breaker, 32A, 25kA, 3p, 50°C, box terminal.
Dimensions: Length/Depth 14.5 cm, Height 8.7 cm, Width 8.9 cm.
Weight: 1.046 kg.
Compliances: RoHS conform.
Certifications: IEC IEC/EN 60947.
Type: Circuit breaker, Frame type PDE1, Three-pole.
Electrical ratings: Amperage Rating 32 A, Voltage rating 220 V – 440 V AC, 250 V DC.
Rated current (Iu): 32 A.
Settings: Instantaneous current setting minimum 32 A, maximum 350 A; Overload current setting minimum 25.6 A, maximum 32 A.
Short-circuit breaking capacity (Ics) IEC/EN 60947: 35 kA at 230 V 50/60 Hz, 25 kA at 400/415 V 50/60 Hz, 15 kA at 440 V 50/60 Hz.
Connection: Electrical connection type of main circuit is Frame clamp; Position of connection for main current circuit is Front side.
Operational features: Release system is Thermomagnetic release, Handle type is Rocker lever, Utilization category A, Overvoltage category III, Pollution degree 3, Direction of incoming supply vertical and 90° in all directions.
Mechanical features: Mounting method DIN rail (top hat rail) mounting optional, complete device in housing, fixed installation. Degree of protection IP2X. Lifespan mechanical 25000 operations. Standard terminals are Box terminal.
Environmental conditions: Ambient operating temperature range -20 °C to 70 °C, Ambient storage temperature range -20 °C to 70 °C.
Features: Protection unit, Motor drive optional, Thermally and magnetically adjustable (calibrated at 50 °C), Functions include System and cable protection.
Customs Tariff Code: 85362000.
