Eaton Moeller series Power Defense molded case circuit-breaker
Description

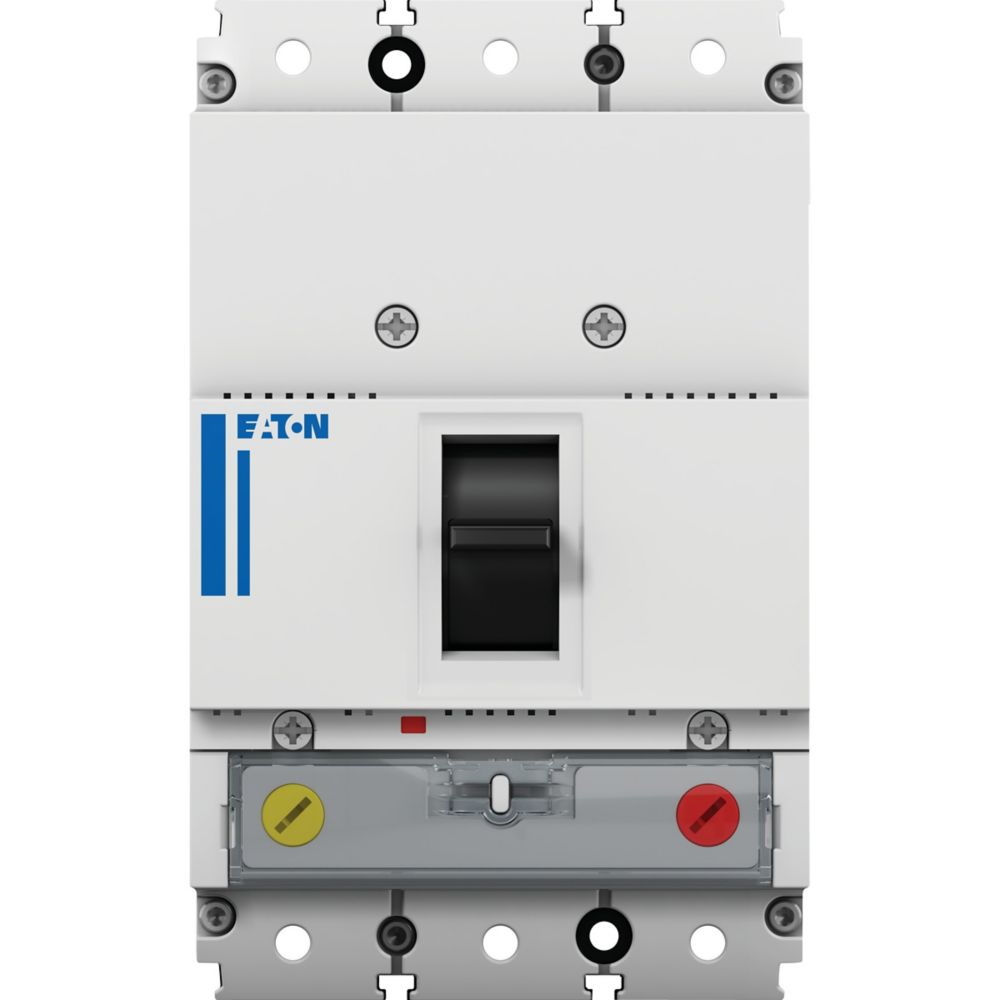

Eaton Moeller series Power Defense – Molded Case Circuit Breaker. Circuit breaker, 40A, 36kA, 3p, 50°C, box terminal
Product Dimensions and Weight
Length/Depth: 14.5 cm, Height: 8.7 cm, Width: 8.9 cm, Weight: 1.046 kg
Compliance and Certification
Compliances: RoHS conform, Certifications: IEC IEC/EN 60947
Technical Specifications
Type: Circuit breaker, Circuit breaker frame type: PDE1, Number of poles: Three-pole, Amperage Rating: 40 A, Release system: Thermomagnetic release, Features: Protection unit; Motor drive optional, Special features: Thermally and magnetically adjustable (calibrated at 50 °C)
Voltage rating: 220 V – 440 V, Voltage rating (DC): 250 V, Rated impulse withstand voltage at auxiliary contacts: 6000 V, Rated impulse withstand voltage at main contacts: 6000 V
Rated current (Iu): 40 A, Instantaneous current setting (Ii) – min: 40 A, Instantaneous current setting (Ii) – max: 350 A, Overload current setting (Ir) – min: 32 A, Overload current setting (Ir) – max: 40 A
Rated short-circuit breaking capacity (Ics) at 230 V, 50/60 Hz: 50 kA, at 400/415 V, 50/60 Hz: 36 kA, at 440 V, 50/60 Hz: 22.5 kA
Electrical connection type of main circuit: Frame clamp, Number of operations per hour – max: 120, Handle type: Rocker lever, Utilization category: A, Overvoltage category: III, Pollution degree: 3
Direction of incoming supply: Vertical and 90° in all directions
Mechanical and Mounting Details
Mounting Method: Fixed Complete device in housing DIN rail (top hat rail) mounting optional, Degree of protection: IP2X
Number of auxiliary contacts (change-over): 0, (normally closed): 0, (normally open): 0
Position of connection for main current circuit: Front side, Lifespan, mechanical: 25000 operations
Standard terminals: Box terminal
Environmental Conditions
Ambient operating temperature: -20 °C to 70 °C, Ambient storage temperature: -20 °C to 70 °C
Functions
System and cable protection
Customs Tariff Code
85362080
